RT104L-HDF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)

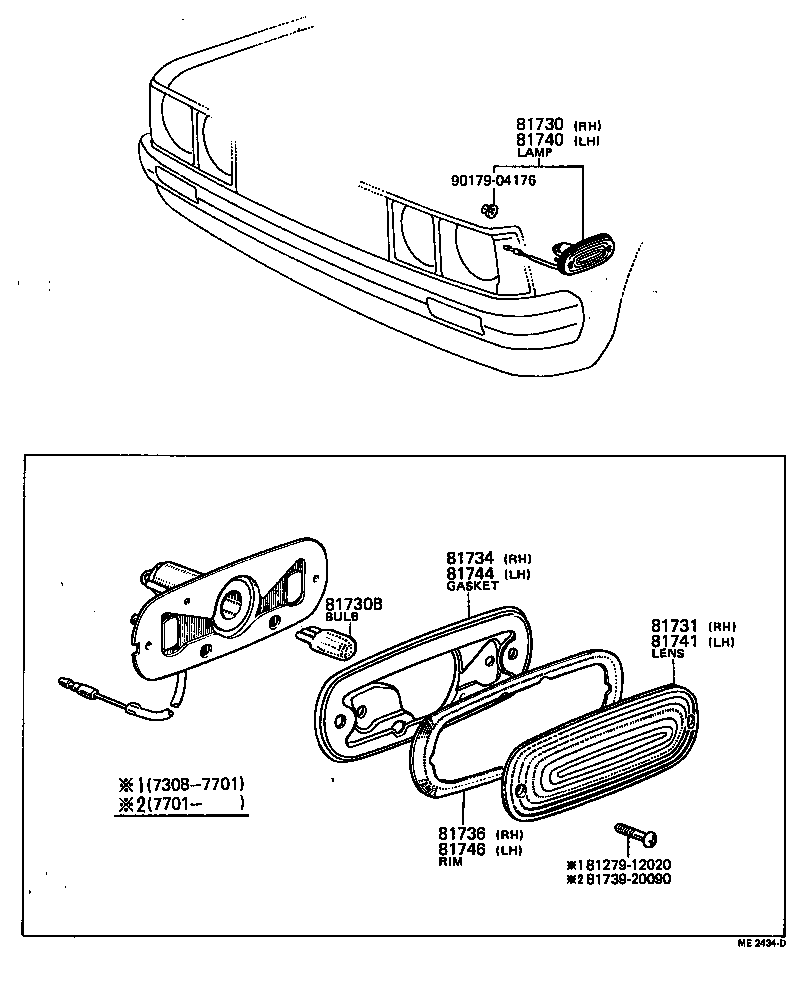

Click highlighted areas on diagram

diagram 8127912020 81730 81730B 81731 81734 81736 8173920090 81740 81741 81744 81746 9017904176
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-29165

RT10#,11#

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

RT10#,11#

12V 5W,12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-20090

RT10#,11#

 1
81734 - GASKET, SIDE TURN SIGNAL LAMP BODY, RH
81732-20090

RT10#,11#

 1
81736 - RIM, SIDE TURN SIGNAL LAMP, RH
81736-20090

RT10#,11#

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-29155

RT10#,11#

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-20090

RT10#,11#

 1
81744 - GASKET, SIDE TURN SIGNAL LAMP BODY, LH
81742-20090

RT10#,11#

 1
81746 - RIM, SIDE TURN SIGNAL LAMP, LH
81736-20090

RT10#,11#

 1
Common parts
81279-12020
81739-20090
90179-04176
