RT104L-HDF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)

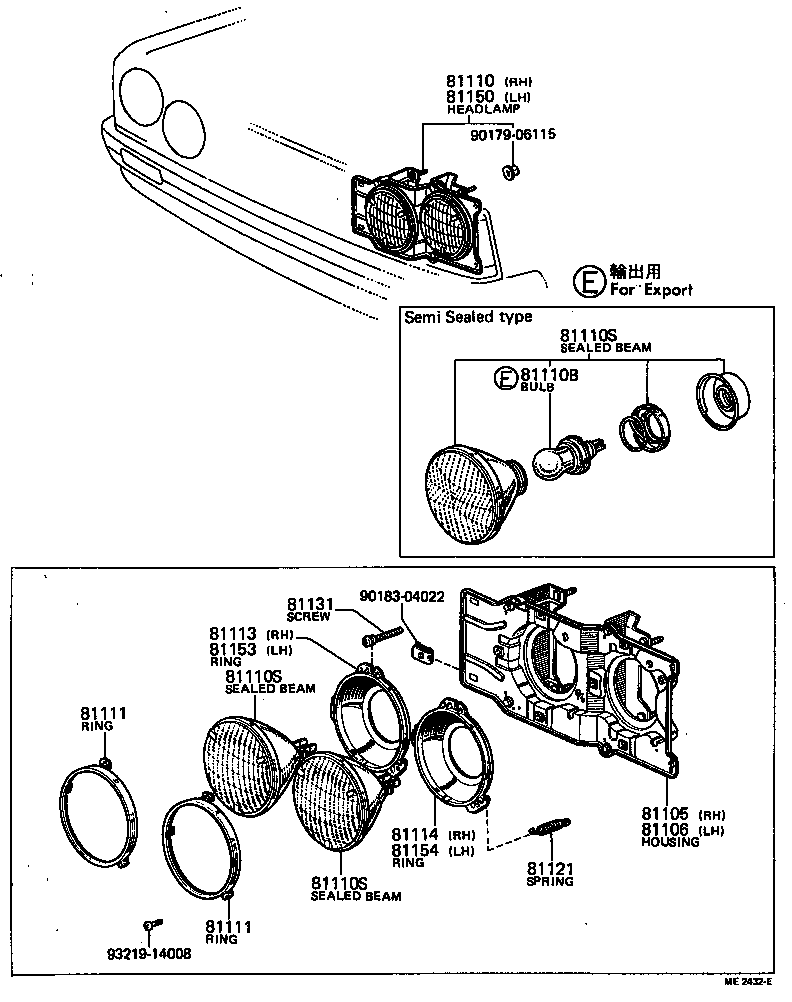

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110S 81110S 81110S 81111 81111 81113 81114 81121 81131 81150 81153 81154 9017906115 9018304022 9321914008
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-20170

RT10#,116,117,118

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-20130

RT10#,116,117,118

 1
81110 - HEADLAMP ASSY, RH
81110-29375

RT10#,116,117,118..LHD

SEMI-SEALED,YELLOW

 1
81110-29315

RT10#,116,117,118..LHD

 1
81110-29365

RT10#,116,117,118..LHD

SEMI-SEALED,WHITE

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13014

RT10#,112,114,116,117,118..LHD

12V 45/40W,YELLOW,12V 45/40W,YELLOW

 4
90981-13013

RT10#,112,114,116,117,118..LHD

12V 45/40W,WHITE,12V 45/40W,WHITE

 4
81110S - SEALED BEAM UNIT, NO.1
90981-02013

RT10#,116,117,118..LHD

12V 37.5/50W,*WB,12V 37.5/50W

 2
90981-02020

RT10#,116,117,118..LHD

12V 45/40W,*YSB,YELLOW BULB,TYPE 1

 2
90981-02018

RT10#,116,117,118..LHD

12V 45/40W,*WSB,WHITE BULB,TYPE 1

 2
90981-02019

RT10#,116,117,118..LHD

12V 45/40W,*WSB,WHITE BULB,TYPE 2

 2
90981-02011

RT104,118..LHD..GEN

12V 37.5W,*WB,12V 37.5W

 2
90981-02021

RT10#,116,117,118..LHD

12V 45/40W,*YSB,YELLOW BULB,TYPE 2

 2
90981-02023

RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA

12V 37.5W,TOSHIBA

 2
90981-02006

RT100,104,11#..LHD

12V 37.5/50W,TOSHIBA

 2
81110S - SEALED BEAM UNIT, NO.1
90981-02013

RT10#,116,117,118..LHD

12V 37.5/50W,*WB,12V 37.5/50W

 2
90981-02020

RT10#,116,117,118..LHD

12V 45/40W,*YSB,YELLOW BULB,TYPE 1

 2
90981-02018

RT10#,116,117,118..LHD

12V 45/40W,*WSB,WHITE BULB,TYPE 1

 2
90981-02019

RT10#,116,117,118..LHD

12V 45/40W,*WSB,WHITE BULB,TYPE 2

 2
90981-02011

RT104,118..LHD..GEN

12V 37.5W,*WB,12V 37.5W

 2
90981-02021

RT10#,116,117,118..LHD

12V 45/40W,*YSB,YELLOW BULB,TYPE 2

 2
90981-02023

RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA

12V 37.5W,TOSHIBA

 2
90981-02006

RT100,104,11#..LHD

12V 37.5/50W,TOSHIBA

 2
81110S - SEALED BEAM UNIT, NO.1
90981-02013

RT10#,116,117,118..LHD

12V 37.5/50W,*WB,12V 37.5/50W

 2
90981-02020

RT10#,116,117,118..LHD

12V 45/40W,*YSB,YELLOW BULB,TYPE 1

 2
90981-02018

RT10#,116,117,118..LHD

12V 45/40W,*WSB,WHITE BULB,TYPE 1

 2
90981-02019

RT10#,116,117,118..LHD

12V 45/40W,*WSB,WHITE BULB,TYPE 2

 2
90981-02011

RT104,118..LHD..GEN

12V 37.5W,*WB,12V 37.5W

 2
90981-02021

RT10#,116,117,118..LHD

12V 45/40W,*YSB,YELLOW BULB,TYPE 2

 2
90981-02023

RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA

12V 37.5W,TOSHIBA

 2
90981-02006

RT100,104,11#..LHD

12V 37.5/50W,TOSHIBA

 2
81111 - RING, SEALED BEAM RETAINING
81111-20170

RT10#,116,117,118

 4
81111-20170

RT10#,11#

KOITO

 4
81111 - RING, SEALED BEAM RETAINING
81111-20170

RT10#,116,117,118

 4
81111-20170

RT10#,11#

KOITO

 4
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-20170

RT10#,116,117,118

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-20170

RT10#,116,117,118

 1
81121 - SPRING, HEADLAMP TENSION
90506-16019

RT10#,116,117,118

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-20043

RT10#,116,117,118

 8
81150 - HEADLAMP ASSY, LH
81150-29315

RT10#,116,117,118..LHD

 1
81150-29365

RT10#,116,117,118..LHD

SEMI-SEALED,WHITE

 1
81150-29375

RT10#,116,117,118..LHD

SEMI-SEALED,YELLOW

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-20130

RT10#,116,117,118

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-20130

RT10#,116,117,118

 1
Common parts
90179-06115
90183-04022
93219-14008
