RT104L-HDF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)

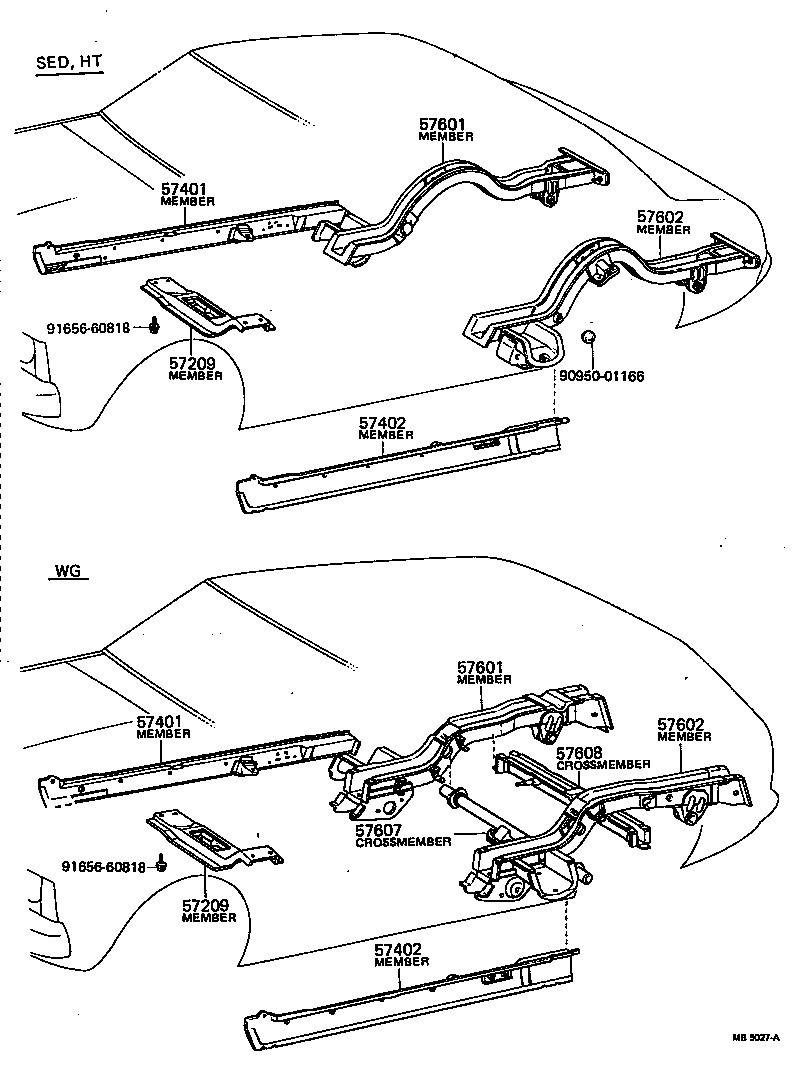

Click highlighted areas on diagram

diagram 57209 57209 57401 57401 57402 57402 57601 57601 57602 57602 57607 57608 9095001166 9165660818 9165660818
Part # Description Qty Price
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-20080

RT10#,11#

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-20080

RT10#,11#

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-20080

RT10#,11#

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-20080

RT10#,11#

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-20050

RT10#,110,112,114..ARL,GEN,PHL,SA

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-20050

RT10#,110,112,114..ARL,GEN,PHL,SA

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-20050

RT10#,110,112,114..ARL,GEN,PHL,SA

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-20050

RT10#,110,112,114..ARL,GEN,PHL,SA

 1
Common parts
90950-01166
91656-60818
