RT104L-HDF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)3FC

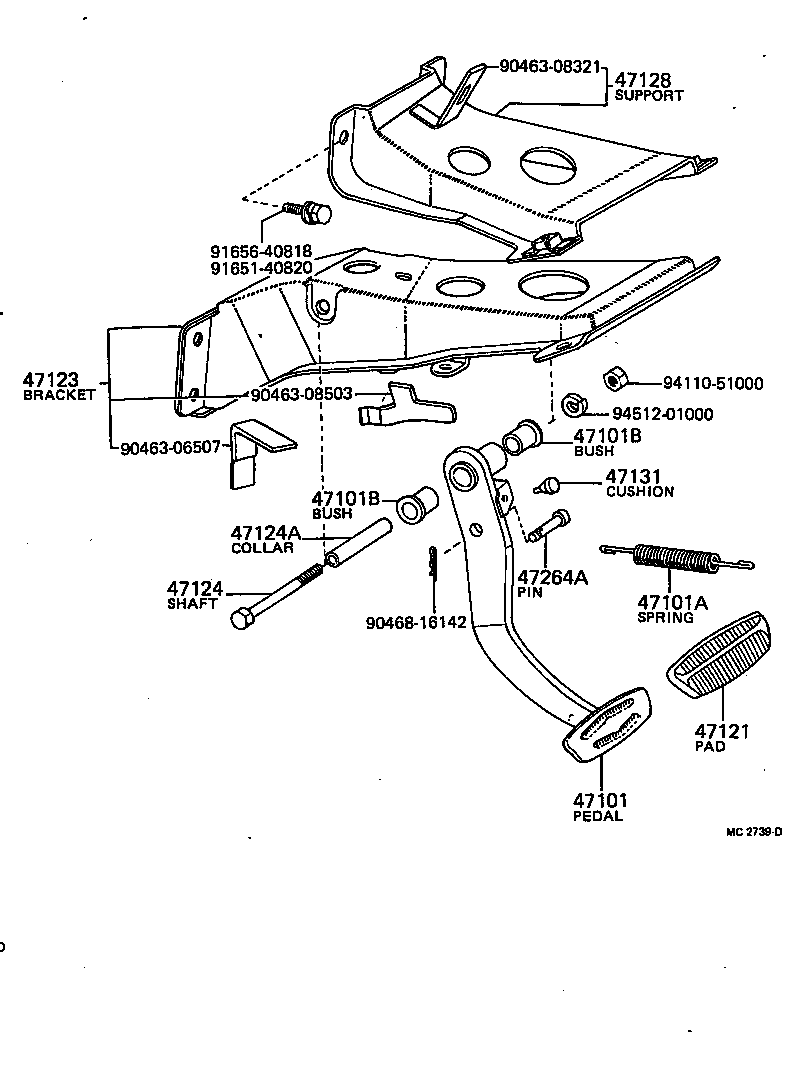

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47128 47131 47264A 9046306507 9046308321 9046308503 9046816142 9165140820 9165640818 9411051000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-20190

RT102,104,112,114..LHD..3FC

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-16333

RT10#,11#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192

RT10#,11#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192

RT10#,11#

 2
47121 - PAD, BRAKE PEDAL
47121-30010

RT102,104,112,114,118..3FC

 1
47123 - BRACKET, BRAKE PEDAL
55106-20130

RT10#,11#..LHD

 1
47124 - SHAFT, BRAKE PEDAL
90101-10039

RT10#,11#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

RT10#,11#

 1
47128 - SUPPORT SUB-ASSY, PEDAL BRACKET
55156-20030

RT10#,11#..LHD

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

RT10#,11#

 1
47264A - PIN(FOR PUSH ROD)
90249-10064

RT10#,11#

 1
Common parts
90463-06507
90463-08321
90463-08503
90468-16142
91651-40820
91656-40818
94110-51000
94512-01000
