RT104L-HDF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)16R,18R#

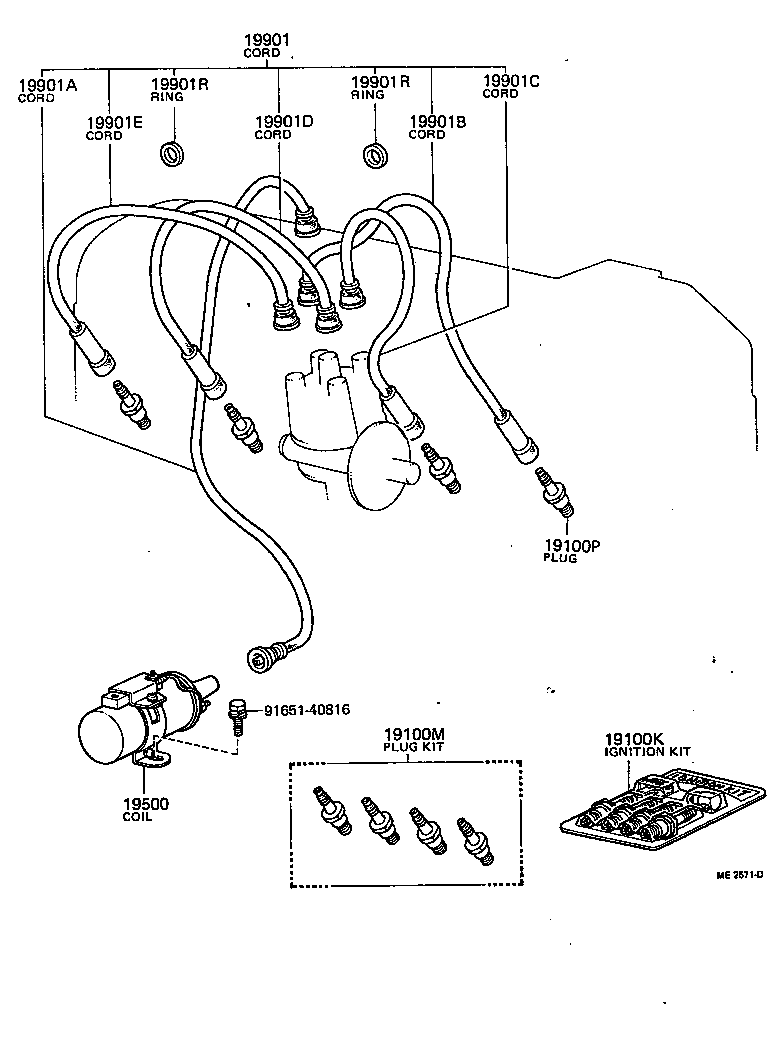

Click highlighted areas on diagram

diagram 19100K 19100M 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19901R 19901R 9165140816
Part # Description Qty Price
19100K - IGNITION KIT
04193-36020

16R,18R..RT102,104,112,114,117,118

 1
19100M - PLUG KIT, SPARK
04195-34010

16R,18R..RT102,104,112,114,117,118

W16EP

 1
04195-34020

16R,18R..RT102,104,114,118..ARL,GEN,SA

W20EP

 1
04195-34020

16R,18R..RT102,104,114,118..ARL,GEN,SA

W20EP

 1
19100P - PLUG, SPARK
90999-09001

16R,18R..RT102,104,114,118..ARL,GEN,SA

W20EP

 4
90919-01027

16R,18R..RT102,104,112,114,117,118

W16EP OR W16EX-U,W16EP

 4
90919-01027

18R..RT104,114,118..ARL,GEN

W16EP OR W16EX-U,W16EP

 4
90999-09001

16R,18R..RT102,104,114,118..ARL,GEN,SA

W20EP

 4
19500 - COIL ASSY, IGNITION
90919-02006

16R,18R..RT102,104,112,114,117,118

 1
90919-02006

16R,18R..RT102,104,114,118..ARL,GEN,SA

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21003

16R,18R..RT102,104,112,114,117,118

 1
19901A - CORD, COIL RESISTIVE
99231-20360

16R,18R..RT102,104,112,114,117,118

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
99221-10290

16R,18R..RT102,104,112,114,117,118

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
99221-10290

16R,18R..RT102,104,112,114,117,118

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
99221-10290

16R,18R..RT102,104,112,114,117,118

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
99221-10290

12R,16R,18R..RT10#,11#

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

12R,16R,18R..RT10#,11#

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

12R,16R,18R..RT10#,11#

 2
Common parts
91651-40816
