RT104-KRFQ (1973)
Toyota Corona
(7308-7401) ; (7401-7701)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82201 - WIRING SUB-ASSY, INSTRUMENT PANEL | ||||
| 82201-20051 |
RT104,118..ARL;RT104..3FC..SA |
1 | ||
| 82201-20050 |
RT104,118..ARL;RT104..3FC..SA |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82270-20411 |
RT118..ARL;RT104..4F..ARL;RT104..3FC..(ARL,SA) |
1 | ||
| 82270-20410 |
RT118..ARL;RT104..4F..ARL;RT104..3FC..(ARL,SA) |
1 | ||
| 82210-20870 |
RT104..ARL;RT104..3FC..SA;RT100,102,112,116,117,118..RHD |
1 | ||
| 82210-20872 |
RT100,104,116,118..RHD |
1 | ||
| 82270-20790 |
RT100,104,116,118..RHD |
1 | ||
| 82270-20412 |
RT118..ARL;RT104..4F..ARL;RT104..3FC..(ARL,SA) |
1 | ||
| 82270-20791 |
RT100,104,116,118..RHD |
1 | ||
| Common parts | ||||
| 82817-20050 | ||||
| 93590-16014 | ||||

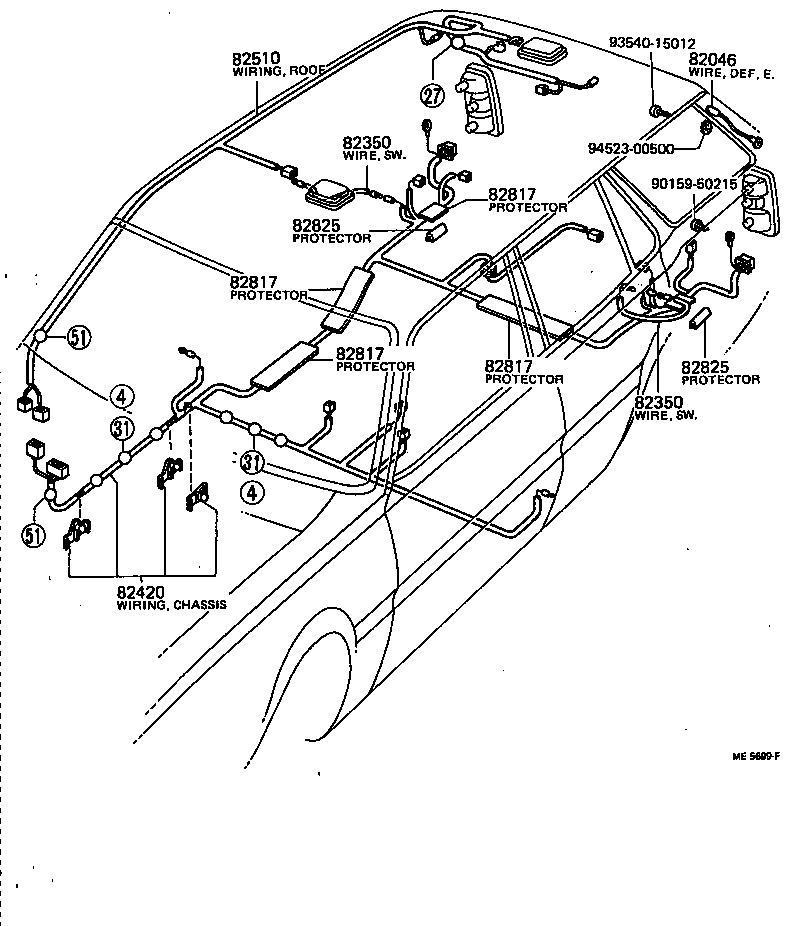

(7308-7701)RT10#,110,112,114
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-20030 |
RT104,114 |
1 | ||
| 82046-20030 |
RT104,114..ARL,EUR,GEN |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-20050 |
RT104,114..ARL,EUR,GEN |
1 | ||
| 82216-20051 |
RT104,114 |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82350-20090 |
RT10#..4D |
2 | ||
| 82350-20100 |
RT10#..ARL,GEN,PHL,SA |
1 | ||
| 82350-20100 |
RT10# |
1 | ||
| 82350-20080 |
RT10#..4D FRONT |
2 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82350-20090 |
RT10#..4D |
2 | ||
| 82350-20100 |
RT10#..ARL,GEN,PHL,SA |
1 | ||
| 82350-20100 |
RT10# |
1 | ||
| 82350-20080 |
RT10#..4D FRONT |
2 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82350-20090 |
RT10#..4D |
2 | ||
| 82350-20100 |
RT10#..ARL,GEN,PHL,SA |
1 | ||
| 82350-20100 |
RT10# |
1 | ||
| 82350-20080 |
RT10#..4D FRONT |
2 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82350-20090 |
RT10#..4D |
2 | ||
| 82350-20100 |
RT10#..ARL,GEN,PHL,SA |
1 | ||
| 82350-20100 |
RT10# |
1 | ||
| 82350-20080 |
RT10#..4D FRONT |
2 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82350-20090 |
RT10#..4D |
2 | ||
| 82350-20100 |
RT10#..ARL,GEN,PHL,SA |
1 | ||
| 82350-20100 |
RT10# |
1 | ||
| 82350-20080 |
RT10#..4D FRONT |
2 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82350-20090 |
RT10#..4D |
2 | ||
| 82350-20100 |
RT10#..ARL,GEN,PHL,SA |
1 | ||
| 82350-20100 |
RT10# |
1 | ||
| 82350-20080 |
RT10#..4D FRONT |
2 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-20110 |
RT104..ARL |
1 | ||
| 82420-20130 |
RT104..ARL |
1 | ||
| 82420-20110 |
RT104..ARL |
1 | ||
| 82420-20131 |
RT104..ARL |
1 | ||
| 82420-20270 |
RT100,104,114..ARL,EUR,GEN,PHL |
1 | ||
| 82420-20181 |
RT100,104,114..ARL,EUR,GEN,PHL |
1 | ||
| 82420-20180 |
RT100,104,114..ARL,EUR,GEN,PHL |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-20090 |
RT10#,110,112,114 |
1 | ||
| 82510-20091 |
RT10#,110,114 |
1 | ||
| 82510-20130 |
RT10#,114 |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-20090 |
RT10#,110,112,114 |
1 | ||
| 82510-20091 |
RT10#,110,114 |
1 | ||
| 82510-20130 |
RT10#,114 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20090 |
RT10#,11# BELLOWS TYPE,L=1200 |
1 | ||
| 82817-20080 |
RT10#,11# L=30 |
1 | ||
| 82817-22070 |
RT10#,112..4F,5F L=150 |
2 | ||
| 82817-20060 |
RT10#,112,114 L=100 |
1 | ||
| 82817-20060 |
RT10#,11# L=100 |
1 | ||
| 82817-12060 |
RT10#,11# L=600 |
3 | ||
| 82817-20120 |
RT10#,11# L=600 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20090 |
RT10#,11# BELLOWS TYPE,L=1200 |
1 | ||
| 82817-20080 |
RT10#,11# L=30 |
1 | ||
| 82817-22070 |
RT10#,112..4F,5F L=150 |
2 | ||
| 82817-20060 |
RT10#,112,114 L=100 |
1 | ||
| 82817-20060 |
RT10#,11# L=100 |
1 | ||
| 82817-12060 |
RT10#,11# L=600 |
3 | ||
| 82817-20120 |
RT10#,11# L=600 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20090 |
RT10#,11# BELLOWS TYPE,L=1200 |
1 | ||
| 82817-20080 |
RT10#,11# L=30 |
1 | ||
| 82817-22070 |
RT10#,112..4F,5F L=150 |
2 | ||
| 82817-20060 |
RT10#,112,114 L=100 |
1 | ||
| 82817-20060 |
RT10#,11# L=100 |
1 | ||
| 82817-12060 |
RT10#,11# L=600 |
3 | ||
| 82817-20120 |
RT10#,11# L=600 |
2 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-10010 |
RT10#,110,112,114 L=80 |
1 | ||
| Common parts | ||||
| 91611-40610 | ||||
(7308-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07031 |
RT10#,11# L=210 |
1 | ||
| 90980-07062 |
RT10#,11# L=250 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08054 |
RT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN |
1 | ||
| 90982-08028 |
RT104..3FC..SA;RT104..ARL,EUR,GEN;RT100,102,110,112,116,117,118 |
1 | ||
| 82211 - WIRE, HEATER BLOWER FAN SWITCH | ||||
| 82223-20030 |
RT10#,11# |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-20070 |
RT102,104,112,114,117,118 |
1 | ||
| 82221-20071 |
RT104,118..EUG;RT104,118..ARL,GEN,SA |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-20160 |
RT10#,11#..4F,5F |
1 | ||
| 82310-20320 |
RT10#,11#..4F,5F |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-20160 |
RT10#,11#..4F,5F |
1 | ||
| 82310-20320 |
RT10#,11#..4F,5F |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-20160 |
RT10#,11#..4F,5F |
1 | ||
| 82310-20320 |
RT10#,11#..4F,5F |
1 | ||
| 82371 - WIRE, WIPER RELAY | ||||
| 82241-22060 |
RT100,104,11#..RHD |
1 | ||
| 82371-22010 |
RT10#,112,114,116,117..RHD L/WIPER RELAY |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 91611-41014 | ||||

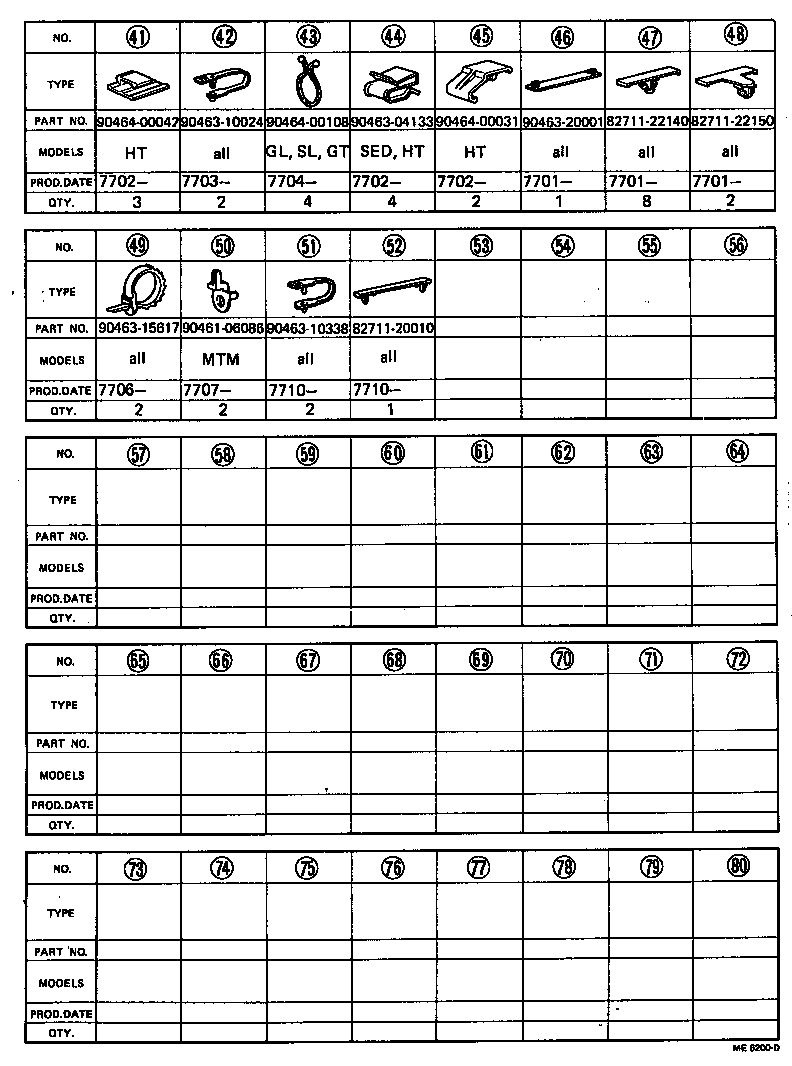

(7308-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-04202 | ||||
| 90461-06006 | ||||
| 90461-06076 | ||||
| 90461-06303 | ||||
| 90461-06527 | ||||
| 90461-06645 | ||||
| 90461-06674 | ||||
| 90461-06969 | ||||
| 90461-06990 | ||||
| 90461-08036 | ||||
| 90461-08160 | ||||
| 90461-08485 | ||||
| 90461-08958 | ||||
| 90462-04227 | ||||
| 90463-04079 | ||||
| 90463-04133 | ||||
| 90463-04259 | ||||
| 90463-04340 | ||||
| 90463-04376 | ||||
| 90463-04517 | ||||
| 90463-06031 | ||||
| 90463-06038 | ||||
| 90463-06514 | ||||
| 90463-10010 | ||||
| 90463-10012 | ||||
| 90463-10335 | ||||
| 90463-10336 | ||||
| 90463-10337 | ||||
| 90463-10338 | ||||
| 90463-12008 | ||||
| 90463-15298 | ||||
| 90464-00030 | ||||
| 90464-00031 | ||||
| 90464-00044 | ||||
| 90464-00108 | ||||
| 90480-01339 | ||||
| 90480-13290 | ||||
| 90480-23246 | ||||
| 90480-26462 | ||||
| 90480-30320 | ||||
(7308-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07031 |
RT10#,11# L=210 |
1 | ||
| 90980-07062 |
RT10#,11# L=250 |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-22020 |
RT102,104,114,118 |
1 | ||
| 82219-22020 |
RT104,118..EUG;RT104,114,118..ARL,GEN,SA |
1 | ||
| 82371 - WIRE, WIPER RELAY | ||||
| 82241-22060 |
RT100,104,11#..RHD |
1 | ||
| 82371-22010 |
RT10#,112,114,116,117..RHD L/WIPER RELAY |
1 | ||
| 82371 - WIRE, WIPER RELAY | ||||
| 82241-22060 |
RT100,104,11#..RHD |
1 | ||
| 82371-22010 |
RT10#,112,114,116,117..RHD L/WIPER RELAY |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22020 |
RT10#,11# |
1 | ||

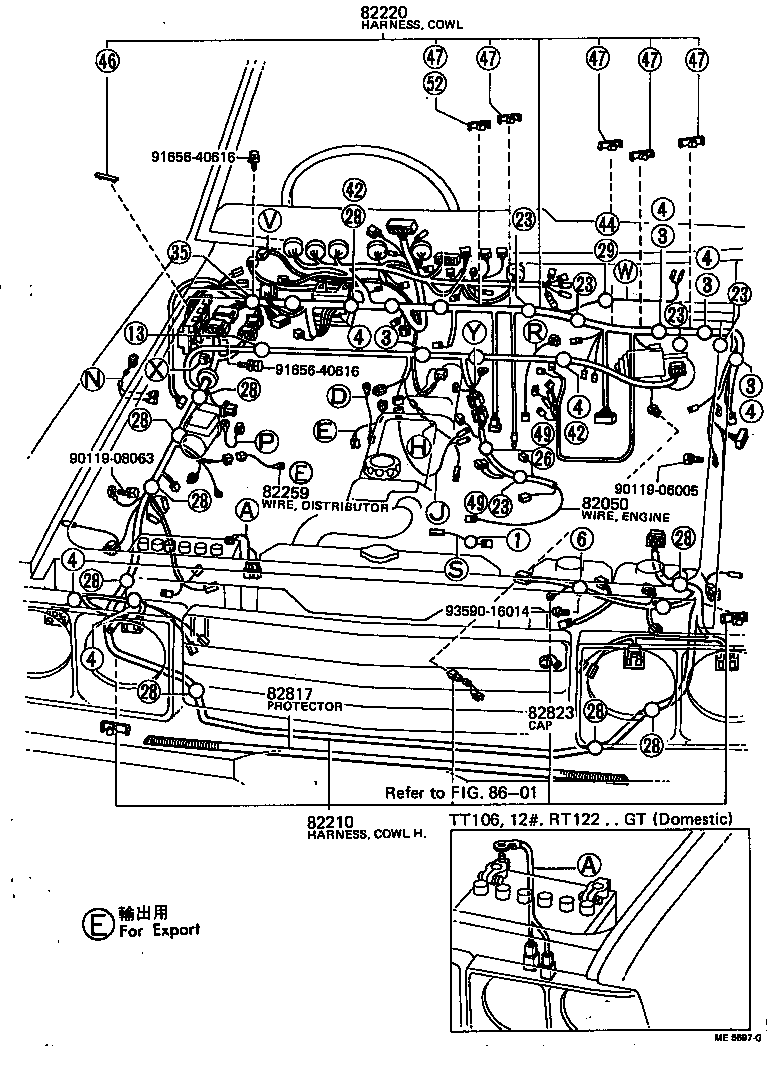

(7701-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82050 - WIRE ASSY, ENGINE | ||||
| 82050-21010 |
RT102,104,114,118 |
1 | ||
| 82050-20080 |
RT104,118..ARL TO CARBURETOR |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82270-20411 |
RT118..ARL;RT104..4F..ARL;RT104..3FC..(ARL,SA) |
1 | ||
| 82270-20410 |
RT118..ARL;RT104..4F..ARL;RT104..3FC..(ARL,SA) |
1 | ||
| 82210-20870 |
RT104..ARL;RT104..3FC..SA;RT100,102,112,116,117,118..RHD |
1 | ||
| 82210-20872 |
RT100,104,116,118..RHD |
1 | ||
| 82270-20790 |
RT100,104,116,118..RHD |
1 | ||
| 82270-20412 |
RT118..ARL;RT104..4F..ARL;RT104..3FC..(ARL,SA) |
1 | ||
| 82270-20791 |
RT100,104,116,118..RHD |
1 | ||
| 82220 - HARNESS ASSY, WIRING COWL | ||||
| 82220-20430 |
RT10#,116,118..RHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20090 |
RT10#,11# BELLOWS TYPE,L=1200 |
1 | ||
| 82817-20080 |
RT10#,11# L=30 |
1 | ||
| 82817-22070 |
RT10#,112..4F,5F L=150 |
2 | ||
| 82817-20060 |
RT10#,112,114 L=100 |
1 | ||
| 82817-20060 |
RT10#,11# L=100 |
1 | ||
| 82817-12060 |
RT10#,11# L=600 |
3 | ||
| 82817-20120 |
RT10#,11# L=600 |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22020 |
RT10#,11# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08063 | ||||
| 91656-40616 | ||||
| 93590-16014 | ||||
| Linked diagrams | ||||
| 8601 | ||||

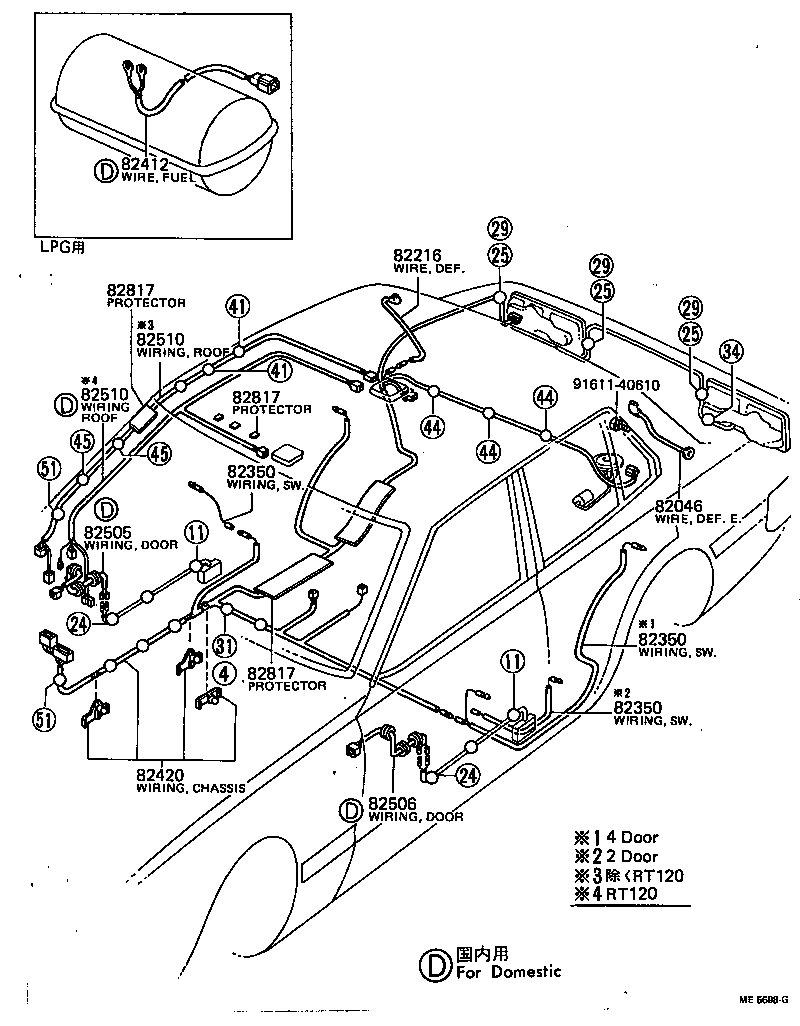

(7701-7905)RT10#,114
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-20030 |
RT104,114 |
1 | ||
| 82046-20030 |
RT104,114..ARL,EUR,GEN |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-20050 |
RT104,114..ARL,EUR,GEN |
1 | ||
| 82216-20051 |
RT104,114 |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82350-20090 |
RT10#..4D |
2 | ||
| 82350-20100 |
RT10#..ARL,GEN,PHL,SA |
1 | ||
| 82350-20100 |
RT10# |
1 | ||
| 82350-20080 |
RT10#..4D FRONT |
2 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82350-20090 |
RT10#..4D |
2 | ||
| 82350-20100 |
RT10#..ARL,GEN,PHL,SA |
1 | ||
| 82350-20100 |
RT10# |
1 | ||
| 82350-20080 |
RT10#..4D FRONT |
2 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82350-20090 |
RT10#..4D |
2 | ||
| 82350-20100 |
RT10#..ARL,GEN,PHL,SA |
1 | ||
| 82350-20100 |
RT10# |
1 | ||
| 82350-20080 |
RT10#..4D FRONT |
2 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-20110 |
RT104..ARL |
1 | ||
| 82420-20130 |
RT104..ARL |
1 | ||
| 82420-20110 |
RT104..ARL |
1 | ||
| 82420-20131 |
RT104..ARL |
1 | ||
| 82420-20270 |
RT100,104,114..ARL,EUR,GEN,PHL |
1 | ||
| 82420-20181 |
RT100,104,114..ARL,EUR,GEN,PHL |
1 | ||
| 82420-20180 |
RT100,104,114..ARL,EUR,GEN,PHL |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-20090 |
RT10#,110,112,114 |
1 | ||
| 82510-20091 |
RT10#,110,114 |
1 | ||
| 82510-20130 |
RT10#,114 |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-20090 |
RT10#,110,112,114 |
1 | ||
| 82510-20091 |
RT10#,110,114 |
1 | ||
| 82510-20130 |
RT10#,114 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20090 |
RT10#,11# BELLOWS TYPE,L=1200 |
1 | ||
| 82817-20080 |
RT10#,11# L=30 |
1 | ||
| 82817-22070 |
RT10#,112..4F,5F L=150 |
2 | ||
| 82817-20060 |
RT10#,112,114 L=100 |
1 | ||
| 82817-20060 |
RT10#,11# L=100 |
1 | ||
| 82817-12060 |
RT10#,11# L=600 |
3 | ||
| 82817-20120 |
RT10#,11# L=600 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20090 |
RT10#,11# BELLOWS TYPE,L=1200 |
1 | ||
| 82817-20080 |
RT10#,11# L=30 |
1 | ||
| 82817-22070 |
RT10#,112..4F,5F L=150 |
2 | ||
| 82817-20060 |
RT10#,112,114 L=100 |
1 | ||
| 82817-20060 |
RT10#,11# L=100 |
1 | ||
| 82817-12060 |
RT10#,11# L=600 |
3 | ||
| 82817-20120 |
RT10#,11# L=600 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20090 |
RT10#,11# BELLOWS TYPE,L=1200 |
1 | ||
| 82817-20080 |
RT10#,11# L=30 |
1 | ||
| 82817-22070 |
RT10#,112..4F,5F L=150 |
2 | ||
| 82817-20060 |
RT10#,112,114 L=100 |
1 | ||
| 82817-20060 |
RT10#,11# L=100 |
1 | ||
| 82817-12060 |
RT10#,11# L=600 |
3 | ||
| 82817-20120 |
RT10#,11# L=600 |
2 | ||
| Common parts | ||||
| 91611-40610 | ||||
(7701-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-20030 |
RT104,114 |
1 | ||
| 82046-20030 |
RT104,114..ARL,EUR,GEN |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82350-20090 |
RT10#..4D |
2 | ||
| 82350-20100 |
RT10#..ARL,GEN,PHL,SA |
1 | ||
| 82350-20100 |
RT10# |
1 | ||
| 82350-20080 |
RT10#..4D FRONT |
2 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82350-20090 |
RT10#..4D |
2 | ||
| 82350-20100 |
RT10#..ARL,GEN,PHL,SA |
1 | ||
| 82350-20100 |
RT10# |
1 | ||
| 82350-20080 |
RT10#..4D FRONT |
2 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-20110 |
RT104..ARL |
1 | ||
| 82420-20130 |
RT104..ARL |
1 | ||
| 82420-20110 |
RT104..ARL |
1 | ||
| 82420-20131 |
RT104..ARL |
1 | ||
| 82420-20270 |
RT100,104,114..ARL,EUR,GEN,PHL |
1 | ||
| 82420-20181 |
RT100,104,114..ARL,EUR,GEN,PHL |
1 | ||
| 82420-20180 |
RT100,104,114..ARL,EUR,GEN,PHL |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-20090 |
RT10#,110,112,114 |
1 | ||
| 82510-20091 |
RT10#,110,114 |
1 | ||
| 82510-20130 |
RT10#,114 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20090 |
RT10#,11# BELLOWS TYPE,L=1200 |
1 | ||
| 82817-20080 |
RT10#,11# L=30 |
1 | ||
| 82817-22070 |
RT10#,112..4F,5F L=150 |
2 | ||
| 82817-20060 |
RT10#,112,114 L=100 |
1 | ||
| 82817-20060 |
RT10#,11# L=100 |
1 | ||
| 82817-12060 |
RT10#,11# L=600 |
3 | ||
| 82817-20120 |
RT10#,11# L=600 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20090 |
RT10#,11# BELLOWS TYPE,L=1200 |
1 | ||
| 82817-20080 |
RT10#,11# L=30 |
1 | ||
| 82817-22070 |
RT10#,112..4F,5F L=150 |
2 | ||
| 82817-20060 |
RT10#,112,114 L=100 |
1 | ||
| 82817-20060 |
RT10#,11# L=100 |
1 | ||
| 82817-12060 |
RT10#,11# L=600 |
3 | ||
| 82817-20120 |
RT10#,11# L=600 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20090 |
RT10#,11# BELLOWS TYPE,L=1200 |
1 | ||
| 82817-20080 |
RT10#,11# L=30 |
1 | ||
| 82817-22070 |
RT10#,112..4F,5F L=150 |
2 | ||
| 82817-20060 |
RT10#,112,114 L=100 |
1 | ||
| 82817-20060 |
RT10#,11# L=100 |
1 | ||
| 82817-12060 |
RT10#,11# L=600 |
3 | ||
| 82817-20120 |
RT10#,11# L=600 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20090 |
RT10#,11# BELLOWS TYPE,L=1200 |
1 | ||
| 82817-20080 |
RT10#,11# L=30 |
1 | ||
| 82817-22070 |
RT10#,112..4F,5F L=150 |
2 | ||
| 82817-20060 |
RT10#,112,114 L=100 |
1 | ||
| 82817-20060 |
RT10#,11# L=100 |
1 | ||
| 82817-12060 |
RT10#,11# L=600 |
3 | ||
| 82817-20120 |
RT10#,11# L=600 |
2 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-10010 |
RT10#,110,112,114 L=80 |
1 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-10010 |
RT10#,110,112,114 L=80 |
1 | ||
| Common parts | ||||
| 90159-50215 | ||||
| 93540-15012 | ||||
| 94523-00500 | ||||
(7701-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-20010 | ||||
| 82711-22140 | ||||
| 82711-22150 | ||||
| 90461-06086 | ||||
| 90463-04133 | ||||
| 90463-10024 | ||||
| 90463-10338 | ||||
| 90463-15617 | ||||
| 90463-20001 | ||||
| 90464-00031 | ||||
| 90464-00042 | ||||
| 90464-00108 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
