RT104-KRFQ (1973)
Toyota Corona
(7308-7905)RT10#,110,112,114
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-12030 |
RT10#;RT114..GEN;RT114..3FC..SA FOR W/KEY |
1 | ||
| 77310-12052 |
RT10#,116,117,118..STD W/VALVE,L/KEY |
1 | ||
| 77310-12052 |
RT100..STD..GEN;RT102,104,116,118..STD W/VALVE,L/KEY |
1 | ||
| 69058-12030 |
RT100,104,114 FOR W/KEY |
1 | ||
| 69058-12030 |
RT114..4F;RT100,104,110;RT114..3FC..GEN FOR W/KEY |
1 | ||
| 77310-12052 |
RT100..STD..GEN;RT102,104,116,118..STD W/VALVE,L/KEY |
1 | ||
| 77310-12080 |
RT10#..STD..(ARL,EUR,GEN,SA) W/VALVE,L/KEY |
1 | ||
| 69058-12030 |
RT100,104,114..ARL,GEN,PHL,SA FOR W/KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
RT100,104,114..ARL,EUR,GEN,SA |
1 | ||
| 77316-12031 |
RT10#,110,114 FOR W/KEY |
1 | ||
| 77316-12040 |
RT10#,116,117,118..STD FOR L/KEY |
1 | ||
| 77316-12050 |
RT100,104,11# |
1 | ||
| 77316-12060 |
RT10#..STD..(ARL,EUR,GEN,SA) |
1 | ||
| 77316-12040 |
RT100..STD..GEN;RT102,104,116,118..STD FOR L/KEY |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-20160 |
RT10#,110,112,114 |
1 | ||
| 77001-20161 |
RT10#,110,112,114 |
1 | ||
| 77001-20162 |
RT10#,110,114 |
1 | ||
| 77001-20163 |
RT10#,110,114 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
RT10#,11# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
RT10#,11# |
1 | ||
| 90430-12038 |
RT10#,11# |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20011 |
RT10#,110,112,114 |
1 | ||
| 77135-20012 |
RT10#,110,112,114 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-20090 |
RT10# |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-18877 |
RT10#,110,112,114 L=500 |
1 | ||
| 90445-18016 |
RT10#,110,114 L=485 |
1 | ||
| 90445-18877 |
RT10# L=500 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-20040 |
RT10# |
1 | ||
| 77213-20041 |
RT10# |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77209-20050 |
RT10#,110,112,114 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77251-12011 |
RT10#,110,114 |
1 | ||
| 77251-12011 |
RT10#,11# |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77245-20010 |
RT10# |
1 | ||
| 77255-20041 |
RT104..ARL |
1 | ||
| 77255-20042 |
RT104..ARL |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77245-20010 |
RT10# |
1 | ||
| 77255-20041 |
RT104..ARL |
1 | ||
| 77255-20042 |
RT104..ARL |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95331-06010 |
RT10#,110,112,114 *H,L=100 |
1 | ||
| 95331-06011 |
RT10#,110,112,114 *H,L=110 |
1 | ||
| 95331-06015 |
RT10#,110,114 *H,L=150 |
1 | ||
| 95332-06015 |
RT10#,114 *H,L=150 |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95331-06010 |
RT10#,110,112,114 *H,L=100 |
1 | ||
| 95331-06011 |
RT10#,110,112,114 *H,L=110 |
1 | ||
| 95331-06015 |
RT10#,110,114 *H,L=150 |
1 | ||
| 95332-06015 |
RT10#,114 *H,L=150 |
1 | ||
| 77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2) | ||||
| 95331-06008 |
RT10# *H,L=80 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77256-20050 |
RT10#,110,112,114 |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95331-06011 |
RT10#,110,112,114 *H,L=110 |
1 | ||
| 77324 - SPRING, FUEL TANK CAP | ||||
| 77324-12011 |
RT10#,11# |
1 | ||
| 77317-12030 |
RT100,104,11# |
1 | ||
| 77317-12030 |
RT100,104,114..ARL,EUR,GEN,SA |
1 | ||
| 77355 - RING, INLET BOX | ||||
| 77355-20020 |
RT10#..4D |
1 | ||
| 77355-20021 |
RT10#..4D |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77641-20010 |
RT10# |
1 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 61651-20060 |
RT10#,110,112,114 |
1 | ||
| 61075-20010 |
RT10#,110,112,114 |
1 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 61652-20060 |
RT10#,110,112,114 |
1 | ||
| 61076-20010 |
RT10#,110,112,114 |
1 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-20010 |
RT10# |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-20010 |
RT10# |
2 | ||
| 77653 - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-12010 |
RT10#,110,112,114 |
1 | ||
| 77653-20020 |
RT10#,110,112,114 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
RT10#,11# |
1 | ||
| Common parts | ||||
| 90460-20052 | ||||
| 90460-62033 | ||||
| 90461-10973 | ||||
| 90463-06552 | ||||
| 90467-07157 | ||||
| 90467-12140 | ||||
| 91666-40820 | ||||
| 93312-14012 | ||||
| 94180-40400 | ||||
| 94180-40500 | ||||
| 96112-10200 | ||||
| 96132-30600 | ||||

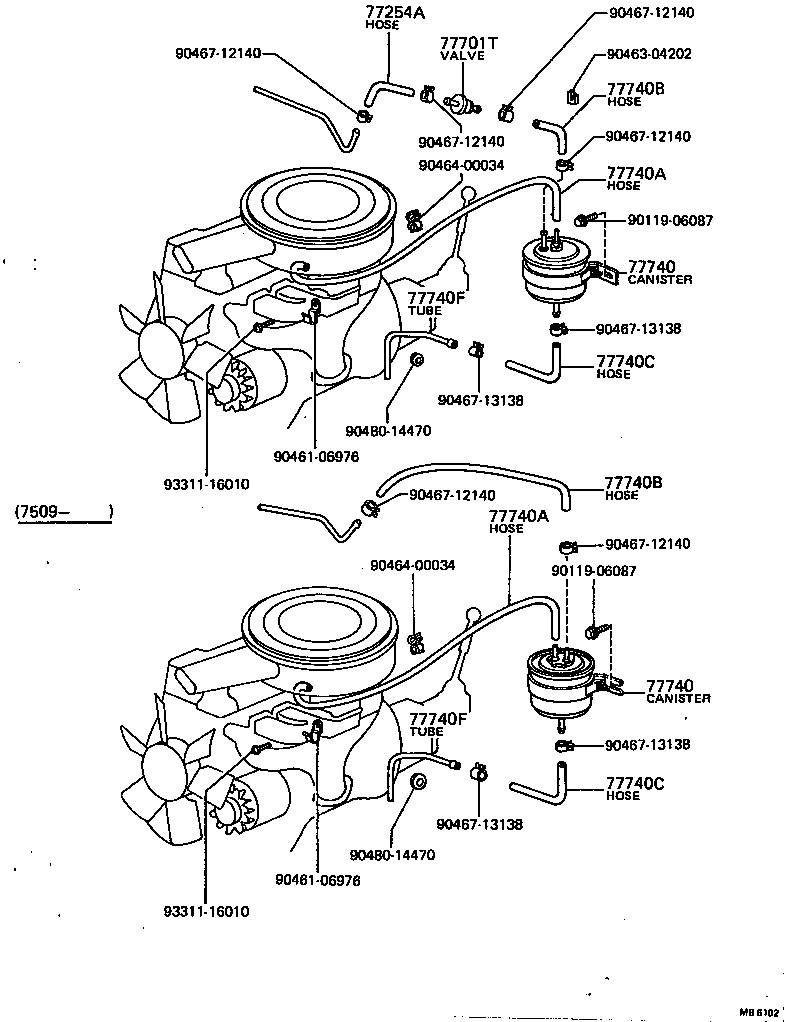

(7409-7905)ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95331-06014 |
RT104,118..ARL *H,L=140 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
RT10#,11# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-20131 |
RT104,118..ARL |
1 | ||
| 77740-20110 |
RT104,118..ARL |
1 | ||
| 77740-20031 |
RT104,118..ARL |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-20131 |
RT104,118..ARL |
1 | ||
| 77740-20110 |
RT104,118..ARL |
1 | ||
| 77740-20031 |
RT104,118..ARL |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-07911 |
RT104,118..ARL L=650 |
1 | ||
| 95411-19960 |
RT104,118..ARL *H,L=480,MARK=#* |
1 | ||
| 95411-19995 |
RT104,118..ARL *H,L=650,MARK=#* |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-07911 |
RT104,118..ARL L=650 |
1 | ||
| 95411-19960 |
RT104,118..ARL *H,L=480,MARK=#* |
1 | ||
| 95411-19995 |
RT104,118..ARL *H,L=650,MARK=#* |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 95331-06007 |
RT104,118..ARL *H,L=70 |
1 | ||
| 95332-06007 |
RT104,118..ARL *H,L=70 |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 95331-06007 |
RT104,118..ARL *H,L=70 |
1 | ||
| 95332-06007 |
RT104,118..ARL *H,L=70 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 95331-08013 |
RT104,118..ARL *H,L=130 |
1 | ||
| 95331-08014 |
RT104,118..ARL *H,L=140 |
1 | ||
| 95332-08014 |
RT104,118..ARL *H,L=140,ID=7.6 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 95331-08013 |
RT104,118..ARL *H,L=130 |
1 | ||
| 95331-08014 |
RT104,118..ARL *H,L=140 |
1 | ||
| 95332-08014 |
RT104,118..ARL *H,L=140,ID=7.6 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77246-20020 |
RT104,118..ARL |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77246-20020 |
RT104,118..ARL |
1 | ||
| Common parts | ||||
| 90119-06087 | ||||
| 90461-06976 | ||||
| 90463-04202 | ||||
| 90464-00034 | ||||
| 90467-12140 | ||||
| 90467-13138 | ||||
| 90480-14470 | ||||
| 93311-16010 | ||||
(7308-7905)RT10#,110,112,114
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-20091 |
RT102..RHD..DLX;RT100,104,112,114..RHD;RT102..RHD..STD..(GEN,SA) |
1 | ||
| 77251-20092 |
RT10#,114..RHD |
1 | ||
| 77251-20090 |
RT102..RHD..DLX;RT100,104,112,114..RHD;RT102..RHD..STD..(GEN,SA) |
1 | ||
| 77251-20093 |
RT10#,114..RHD |
1 | ||
| 77251-20094 |
RT10#,114..RHD |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95331-06017 |
RT102,104..RHD *H,L=170 |
1 | ||
| 95331-06017 |
RT10#,11# *H,L=170 |
1 | ||
| 95332-06020 |
RT10#,11# *H,L=200 |
1 | ||
| 95331-06017 |
RT10#,11# *H,L=170 |
1 | ||
| 95331-06020 |
RT10#,11# *H,L=200 |
1 | ||
| 95331-06020 |
RT10#,11#..RHD *H,L=200 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95331-06010 |
RT10#,110,112,114 *H,L=100 |
1 | ||
| 95332-06011 |
RT10#,110,112,114 *H,L=110 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77254-20090 |
RT104..ARL |
1 | ||
| 77254-20091 |
RT104..ARL |
1 | ||
| 77254-20093 |
RT104..ARL |
1 | ||
| 77254-20092 |
RT104..ARL |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06011 |
RT104..ARL *H,L=110 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77273-20010 |
RT10#,11# |
1 | ||
| 77273-20010 |
RT10#,114,116,118..RHD |
2 | ||
| Common parts | ||||
| 90179-06097 | ||||
| 90449-06001 | ||||
| 90461-16029 | ||||
| 90462-20228 | ||||
| 90464-00036 | ||||
| 90480-01445 | ||||
| 90480-25385 | ||||
| 90950-01060 | ||||
| 91521-40612 | ||||
| 91521-40614 | ||||
| 96132-30600 | ||||
