RT104-KDFN (1973)

Toyota Corona

Production Aug 1973 - May 1979
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7701-7905)RT102,104,114,118..RHD

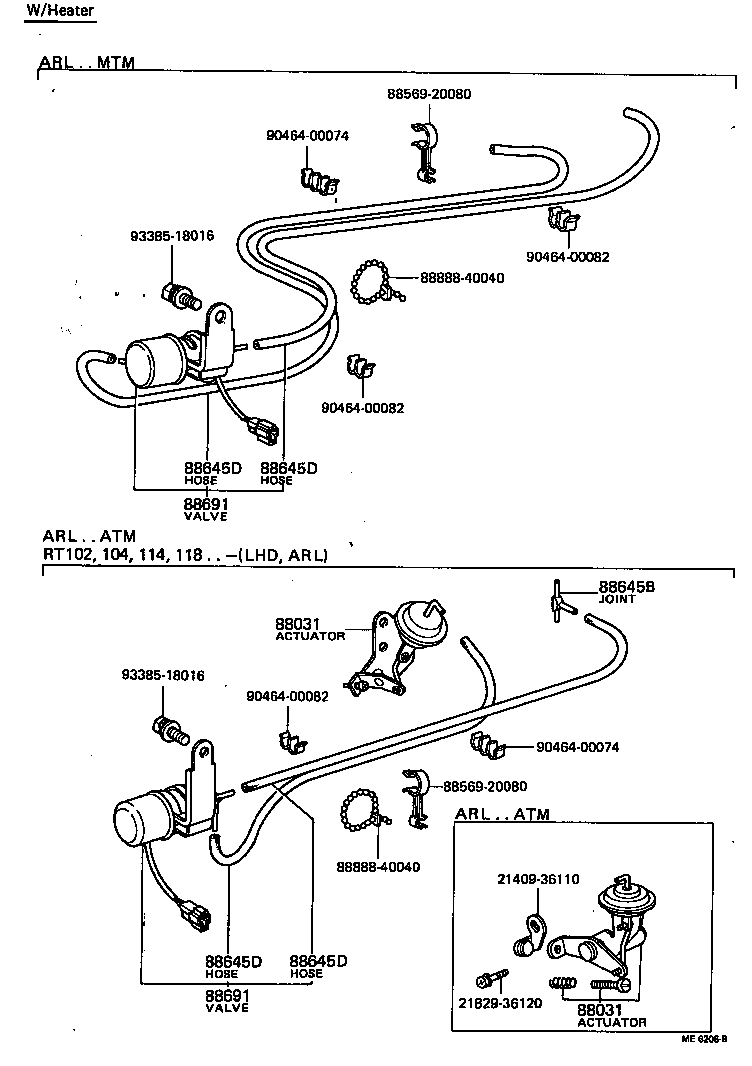

Click highlighted areas on diagram

diagram 2140936110 2182936120 88031 88031 8856920080 8856920080 88645B 88645D 88645D 88645D 88645D 88691 88691 8888840040 8888840040 9046400074 9046400074 9046400082 9046400082 9046400082 9338518016 9338518016
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-22080

RT102,104,114,118..RHD

 1
88031 - ACTUATOR SET, IDLE-UP
88031-22080

RT102,104,114,118..RHD

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001

RT102,104,114,118..RHD

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10095

RT102,104,114,118..RHD

*H,L=650,MARK=#0

 1
95411-19995

RT104,118..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA);RT102,114,118..RHD..(EUR,GEN,SA)

*H,L=650,MARK=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10095

RT102,104,114,118..RHD

*H,L=650,MARK=#0

 1
95411-19995

RT104,118..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA);RT102,114,118..RHD..(EUR,GEN,SA)

*H,L=650,MARK=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10095

RT102,104,114,118..RHD

*H,L=650,MARK=#0

 1
95411-19995

RT104,118..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA);RT102,114,118..RHD..(EUR,GEN,SA)

*H,L=650,MARK=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10095

RT102,104,114,118..RHD

*H,L=650,MARK=#0

 1
95411-19995

RT104,118..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA);RT102,114,118..RHD..(EUR,GEN,SA)

*H,L=650,MARK=#*

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20090

RT102,104,114,118..RHD

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20090

RT102,104,114,118..RHD

 1
Common parts
21409-36110
21829-36120
88569-20080
88888-40040
90464-00074
90464-00082
93385-18016
