8719 - HEATING & AIR CONDITIONING - COMPRESSOR

RT104-HRQ (1973)

Toyota Corona

Production Aug 1973 - Nov 1974

Engine 18R

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

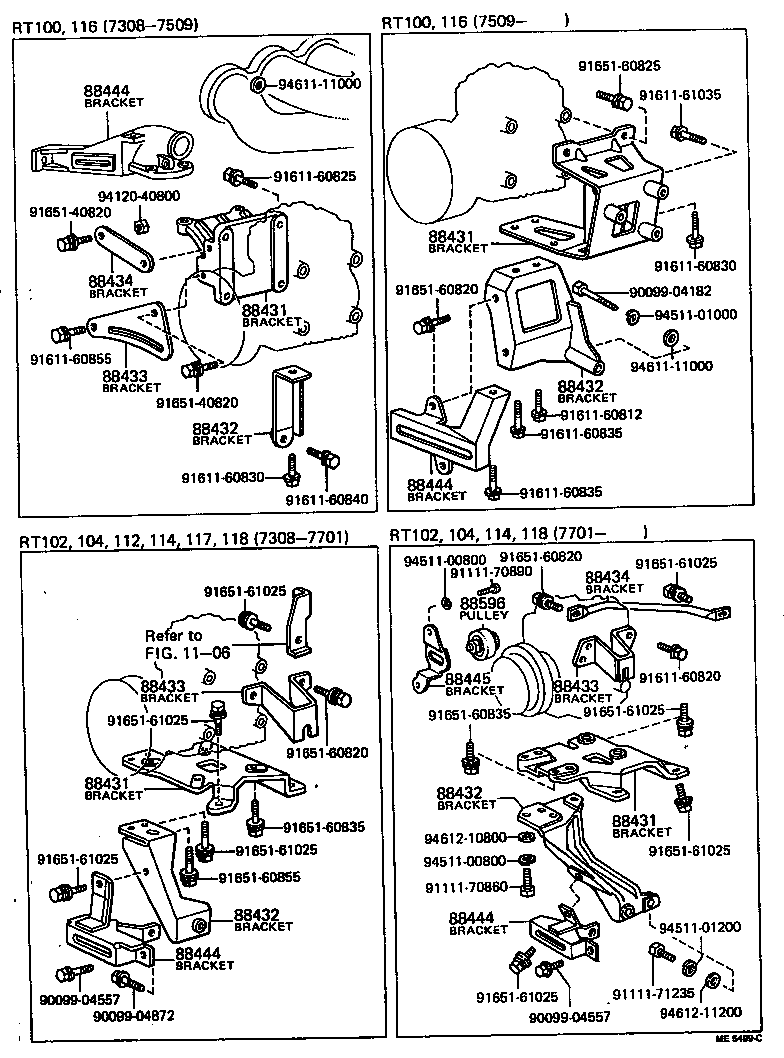

(7308-7905)ARL,EUR,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-22021	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-22021	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-22021	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-22021	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88432-14010	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88432-14010	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88432-14010	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88432-14010	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88433 - BRACKET, COMPRESSOR MOUNTING, NO.3
88433-22012	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88433 - BRACKET, COMPRESSOR MOUNTING, NO.3
88433-22012	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88433 - BRACKET, COMPRESSOR MOUNTING, NO.3
88433-22012	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88444 - BRACKET, IDLE PULLEY
88444-22022	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88444 - BRACKET, IDLE PULLEY
88444-22022	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88444 - BRACKET, IDLE PULLEY
88444-22022	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88444 - BRACKET, IDLE PULLEY
88444-22022	RT102,104,112,114,117,118	08/1973 - 09/1975	1
Common parts
90099-04182
90099-04557
90099-04872
91111-70860
91111-70890
91111-71235
91611-60812
91611-60820
91611-60825
91611-60830
91611-60835
91611-60840
91611-60855
91611-61035
91651-40820
91651-60820
91651-60825
91651-60835
91651-60855
91651-61025
94120-40800
94511-00800
94511-01000
94511-01200
94611-11000
94612-10800
94612-11200
Linked diagrams
1106

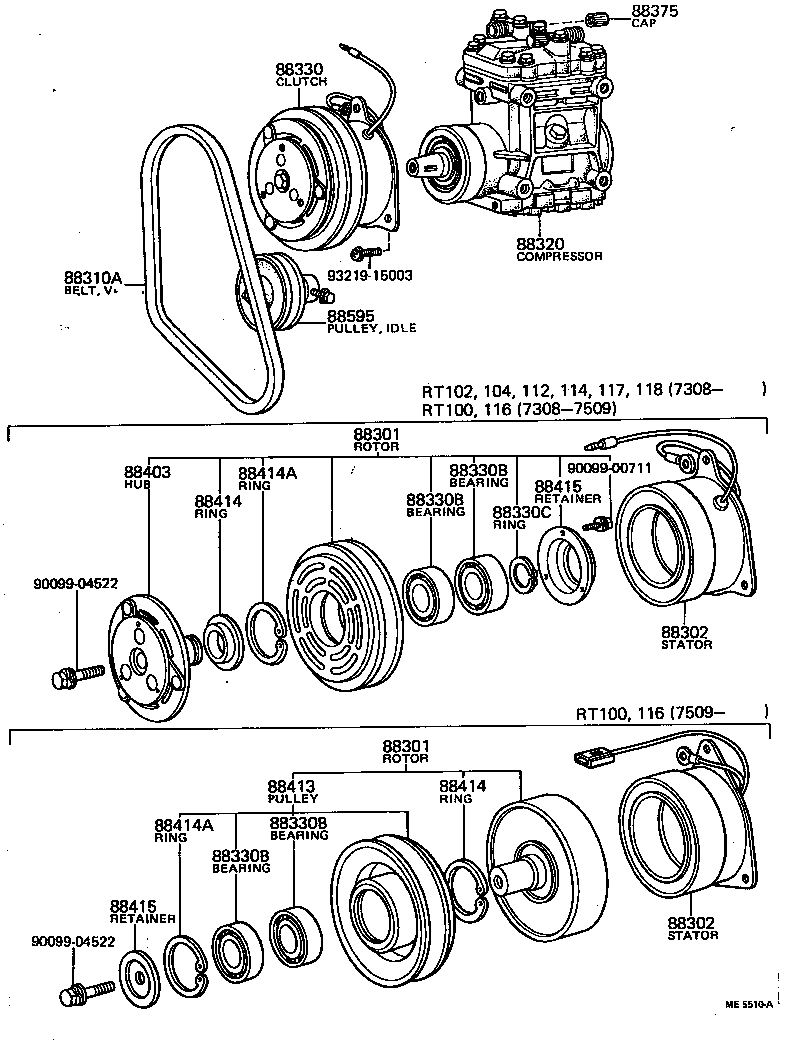

(7308-7905)ARL,EUR,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88401-12032	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88401-12032	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-12021	RT10#,112,114,116,117,118	08/1973 - 09/1975	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-12021	RT10#,112,114,116,117,118	08/1973 - 09/1975	1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99522-11192	RT104,118..RHD L=1192	08/1973 - 05/1979	1
88320 - COMPRESSOR ASSY, COOLER
88320-22020	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88330 - CLUTCH ASSY, MAGNET
88410-12022	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88330B - BEARING, MAGNET CLUTCH
90099-10083	RT10#,112,114,116,117,118..ARL,EUR,GEN,SA	08/1973 - 05/1979	2
88330B - BEARING, MAGNET CLUTCH
90099-10083	RT10#,112,114,116,117,118..ARL,EUR,GEN,SA	08/1973 - 05/1979	2
88330B - BEARING, MAGNET CLUTCH
90099-10083	RT10#,112,114,116,117,118..ARL,EUR,GEN,SA	08/1973 - 05/1979	2
88330B - BEARING, MAGNET CLUTCH
90099-10083	RT10#,112,114,116,117,118..ARL,EUR,GEN,SA	08/1973 - 05/1979	2
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90096-90007	RT10#,112,114,116,117,118	08/1973 - 09/1975	1
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-12020	RT10#,112,114,116,117,118..ARL,EUR,GEN,SA	08/1973 - 05/1979	2
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-20030	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88414 - RING, SHIELD
88415-12030	RT10#,112,114,116,117,118	08/1973 - 09/1975	1
88414 - RING, SHIELD
88415-12030	RT10#,112,114,116,117,118	08/1973 - 09/1975	1
88414A - RING, SHIELD SNAP
90096-90005	RT10#,112,114,116,117,118..ARL,EUR,GEN,SA	08/1973 - 05/1979	1
88414A - RING, SHIELD SNAP
90096-90005	RT10#,112,114,116,117,118..ARL,EUR,GEN,SA	08/1973 - 05/1979	1
88415 - RETAINER, MAGNET CLUTCH BEARING, NO.1
88415-12040	RT10#,112,114,116,117,118	08/1973 - 09/1975	1
88415 - RETAINER, MAGNET CLUTCH BEARING, NO.1
88415-12040	RT10#,112,114,116,117,118	08/1973 - 09/1975	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-22020	RT102,104,112,114,117,118	08/1973 - 03/1974	1
Common parts
90099-00711
90099-04522
93219-15003

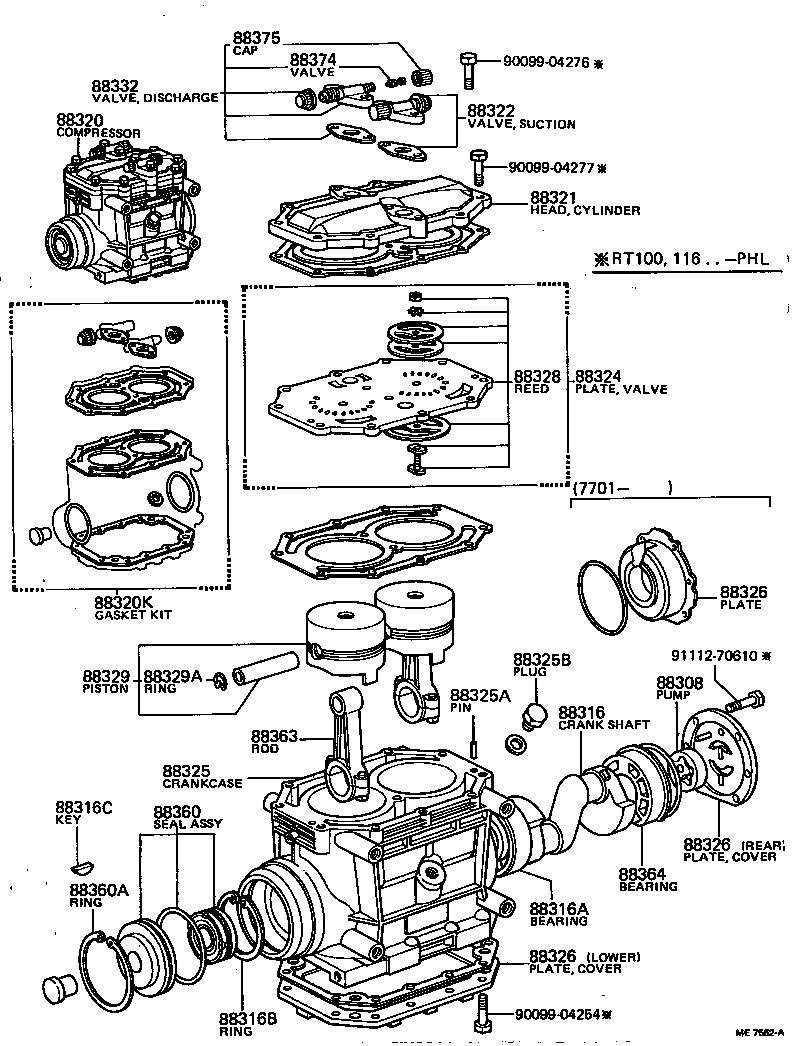

(7308- )ARL,EUR,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
88308 - PUMP ASSY, COOLER COMPRESSOR
88308-20030	RT104,118..RHD	08/1973 - 01/1977	1
88316 - CRANKSHAFT, COOLER COMPRESSOR
88316-60010	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT
88366-60010	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88316C - KEY, COMPRESSOR CRANKSHAFT
90097-00465	RT10#,112,114,116,117,118..ARL,EUR,GEN,SA	08/1973 - 05/1979	1
88320 - COMPRESSOR ASSY, COOLER
88320-22020	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL
04881-60010	RT104,118..RHD	08/1973 - 01/1977	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-60010	RT104,118..RHD	08/1973 - 05/1979	1
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88372-60010	RT104,118..RHD	08/1973 - 05/1979	1
88324 - PLATE SUB-ASSY, COOLER COMPRESSOR VALVE
88305-60010	RT104,118..RHD	08/1973 - 05/1979	1
88325 - CRANKCASE, COOLER COMPRESSOR
88325-22010	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88325A - PIN, CYLINDER BLOCK
90099-08059	RT104,118..RHD L=10	08/1973 - 01/1977	1
90099-08060	RT104,118..RHD L=20	08/1973 - 01/1977	1
88325B - PLUG, CYLINDER BLOCK OIL
88339-60010	RT104,118..RHD	08/1973 - 05/1979	1
88326 - PLATE, COOLER COMPRESSOR BOTTOM
88331-60010	RT104,118..RHD LOWER	08/1973 - 01/1977	1
88326-60010	RT104,118..RHD REAR	08/1973 - 01/1977	1
88326 - PLATE, COOLER COMPRESSOR BOTTOM
88331-60010	RT104,118..RHD LOWER	08/1973 - 01/1977	1
88326-60010	RT104,118..RHD REAR	08/1973 - 01/1977	1
88326 - PLATE, COOLER COMPRESSOR BOTTOM
88331-60010	RT104,118..RHD LOWER	08/1973 - 01/1977	1
88326-60010	RT104,118..RHD REAR	08/1973 - 01/1977	1
88328 - REED SUB-ASSY, COOLER COMPRESSOR VALVE
88307-60010	RT104,118..RHD	08/1973 - 05/1979	1
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-60010	RT104,118..RHD	08/1973 - 05/1979	2
88329A - RING, COMPRESSOR PISTON SNAP
90099-90005	RT104,118..RHD	08/1973 - 05/1979	1
88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE
88371-60010	RT104,118..RHD	08/1973 - 05/1979	1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-60010	RT104,118..RHD	08/1973 - 01/1977	1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90005	RT10#,112,114,116,117,118..ARL,EUR,GEN,SA	08/1973 - 05/1979	1
88363 - ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING
88302-60010	RT104,118..RHD	08/1973 - 05/1979	2
88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR
88367-60010	RT102,104,112,114,117,118	08/1973 - 09/1975	1
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020	RT10#,112,114,116,117,118..ARL,EUR,GEN,SA	08/1973 - 05/1979	2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-12020	RT10#,112,114,116,117,118..ARL,EUR,GEN,SA	08/1973 - 05/1979	2
Common parts
90099-04254
90099-04276
90099-04277
91112-70610
