RT104-HRF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)3FC

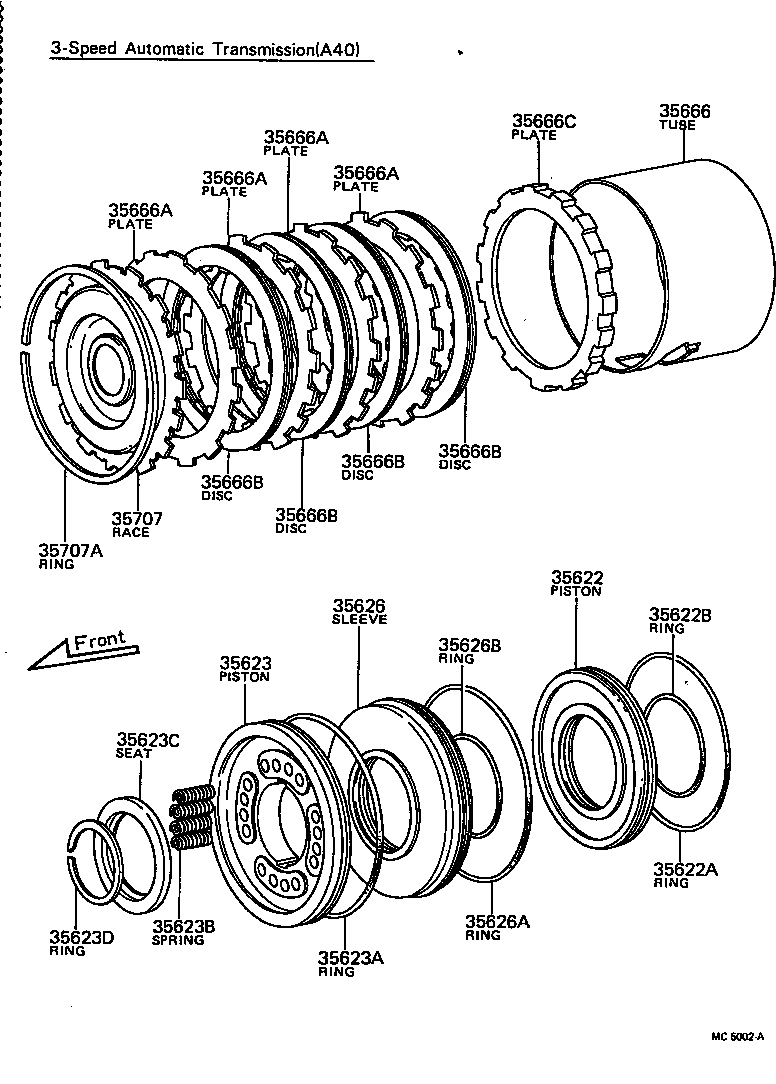

Click highlighted areas on diagram

diagram 35622 35622A 35622B 35623 35623A 35623B 35623C 35623D 35626 35626A 35626B 35666 35666A 35666A 35666A 35666A 35666B 35666B 35666B 35666B 35666C 35707 35707A
Part # Description Qty Price
35622 - PISTON, BRAKE, NO.2
35622-22010

RT102,104,112,114,118..3FC

 1
35622A - RING (FOR BRAKE PISTON OUTER)
90301-99193

RT102,104,112,114,118..3FC

 1
35622B - RING (FOR BRAKE PISTON INNER)
90301-57188

RT102,104,112,114,118..3FC

 1
35623 - PISTON, BRAKE, NO.3
35623-22010

RT102,104,112,114,118..3FC

 1
35623A - RING, O (FOR BRAKE PISTON NO.3 )
90301-99192

RT102,104,112,114,118..3FC

 1
35623B - SPRING (FOR BRAKE PISTON RETURN)
90501-10671

RT102,104,112,114,118..3FC

 16
35623C - SEAT, BRAKE RETURN SPRING
35627-22010

RT102,104,112,114,118..3FC

 1
35623D - RING, SHAFT SNAP (FOR BRAKE)
90520-52262

RT102,104,112,114,118..3FC

 1
35626 - SLEEVE, BRAKE REACTION
35626-22010

RT102,104,112,114,118..3FC

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99200

RT102,104,112,114,118..3FC

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-68191

RT102,104,112,114,118..3FC

 1
35666 - TUBE, BRAKE APPLY
35666-22010

RT102,104,112,114,118..3FC

 1
35666A - PLATE, CLUTCH (FOR BRAKE)
35634-22020

RT102,104,112,118..3FC

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35634-22020

RT102,104,112,118..3FC

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35634-22020

RT102,104,112,118..3FC

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35634-22020

RT102,104,112,118..3FC

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35633-22020

RT102,104,112,118..3FC

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35633-22020

RT102,104,112,118..3FC

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35633-22020

RT102,104,112,118..3FC

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35633-22020

RT102,104,112,118..3FC

 4
35666C - PLATE, CLUTCH PRESSURE (FOR BRAKE)
35639-22010

RT102,104,112,114,118..3FC

 1
35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707-22010

RT102,104,112,114,118..3FC

 1
35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)
90521-99140

RT102,104,112,114,118..3FC

 1
