RT104-HRF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)3FC

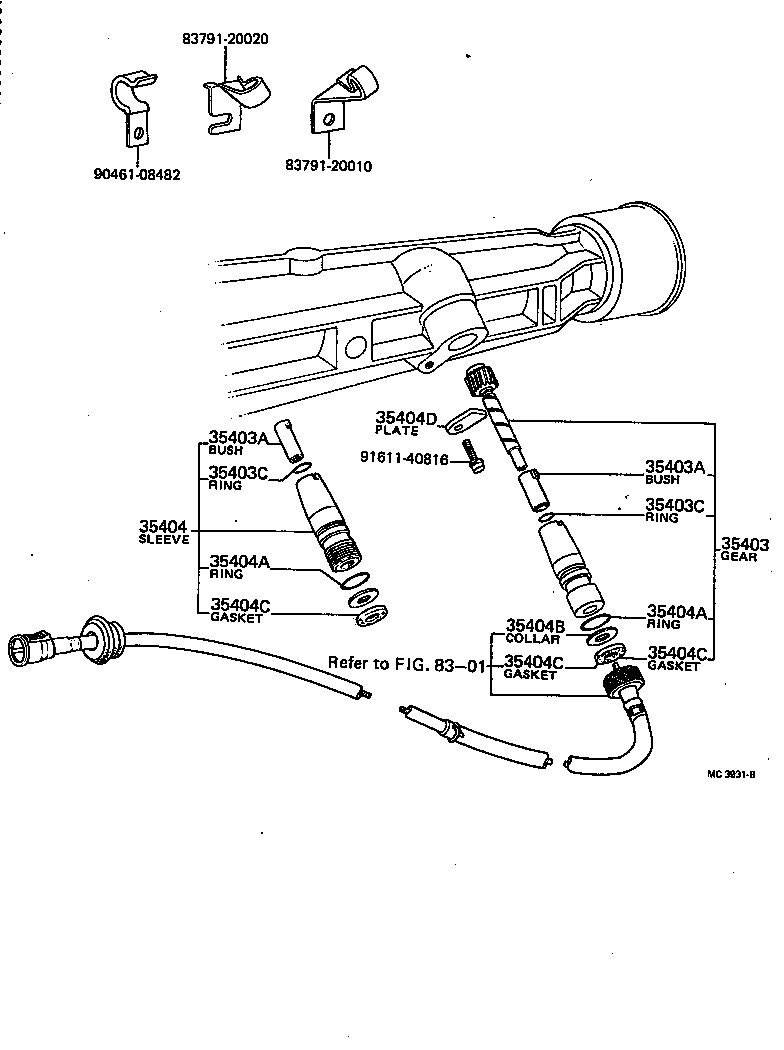

Click highlighted areas on diagram

diagram 35403 35403A 35403A 35403C 35403C 35404 35404A 35404A 35404B 35404C 35404C 35404C 35404D 8301 8379120010 8379120020 9046108482 9161140816
Part # Description Qty Price
35403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-39036

RT104,114..GEN

N=17

 1
33403-69026

RT104,118..RHD..3FC

N=19

 1
33403-29065

RT104,114..3FC..(EUR,GEN,SA)

N=20,DIFF.GEAR R=4.100

 1
35403A - BUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90386-09078

RT102,104,112,114,118..3FC

 1
35403A - BUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90386-09078

RT102,104,112,114,118..3FC

 1
35403C - RING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)
90301-09017

RT102,104,112,114,118..3FC

 1
35403C - RING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)
90301-09017

RT102,104,112,114,118..3FC

 1
35404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-39016

RT102,104,112,114,118..3FC

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

RT102,104,112,114,118..3FC

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

RT102,104,112,114,118..3FC

 1
35404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM)
90201-07069

RT102,104,112,114,118..3FC

 1
35404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)
90303-06017

RT102,104,112,114,118..3FC

 1
35404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)
90303-06017

RT102,104,112,114,118..3FC

 1
35404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)
90303-06017

RT102,104,112,114,118..3FC

 1
35404D - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-30010

RT102,104,112,114,118..3FC

 1
Common parts
83791-20010
83791-20020
90461-08482
91611-40816
Linked diagrams
8301
