RT104-HDF (1975)
Toyota Corona
Production
Sep 1975
-
Aug 1978
Engine
18R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7905)

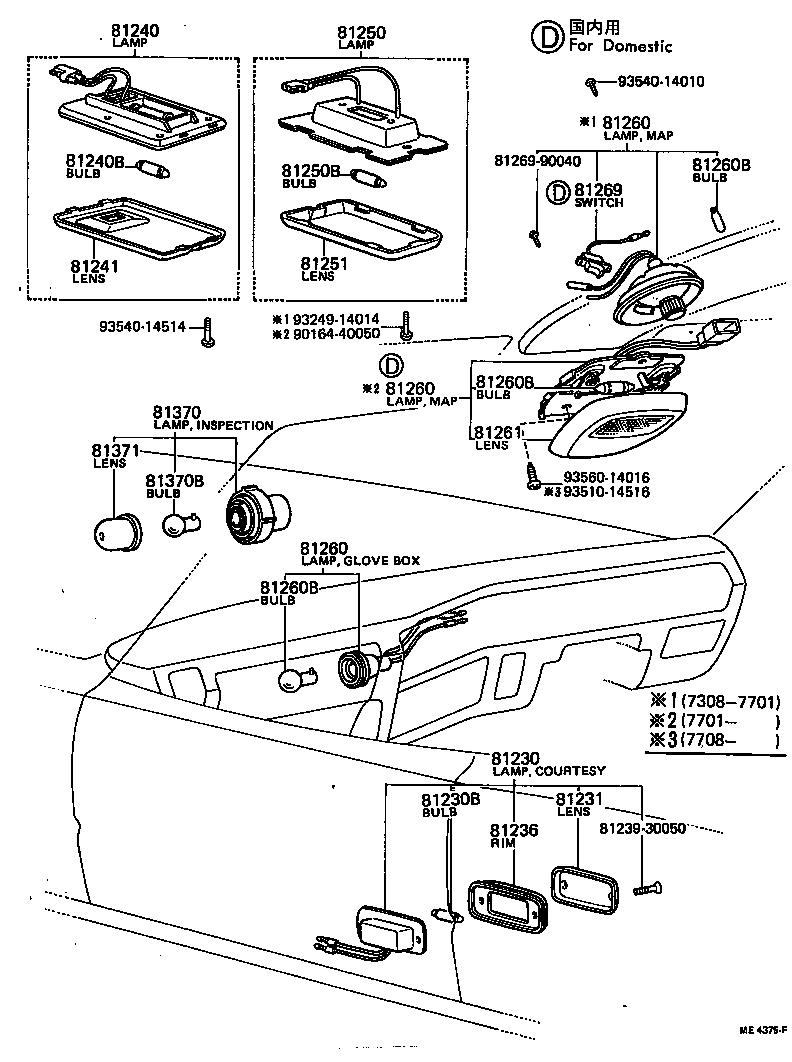

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-3004003 |
RT104,114,116,117,118 GRAY,GRAY,TRIM1# |
1 | ||
| 81240-2005013 |
RT100,104..ARL,EUR,GEN,PHL GRAY,GRAY,TRIM1#,2# |
1 | ||
| 81240-2005005 |
RT100,104..ARL,EUR,GEN,PHL BEIGE,BEIGE,TRIM4# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
RT10#,11# 12V 10W,12V 10W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-14010 |
RT10#,11# |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-14011 |
RT10#,110,112,114..DLX GLOVE BOX |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-14011 |
RT10#,110,112,114..DLX GLOVE BOX |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-14011 |
RT10#,110,112,114..DLX GLOVE BOX |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 99132-11034 |
RT10#,110,112,114..DLX 12V 3.4W,12V 3.4W |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 99132-11034 |
RT10#,110,112,114..DLX 12V 3.4W,12V 3.4W |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 99132-11034 |
RT10#,110,112,114..DLX 12V 3.4W,12V 3.4W |
1 | ||
| Common parts | ||||
| 81239-30050 | ||||
| 81269-90040 | ||||
| 90164-40050 | ||||
| 93249-14014 | ||||
| 93510-14516 | ||||
| 93540-14010 | ||||
| 93540-14514 | ||||
| 93560-14016 | ||||
