RT104-HDF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)16R,18R#

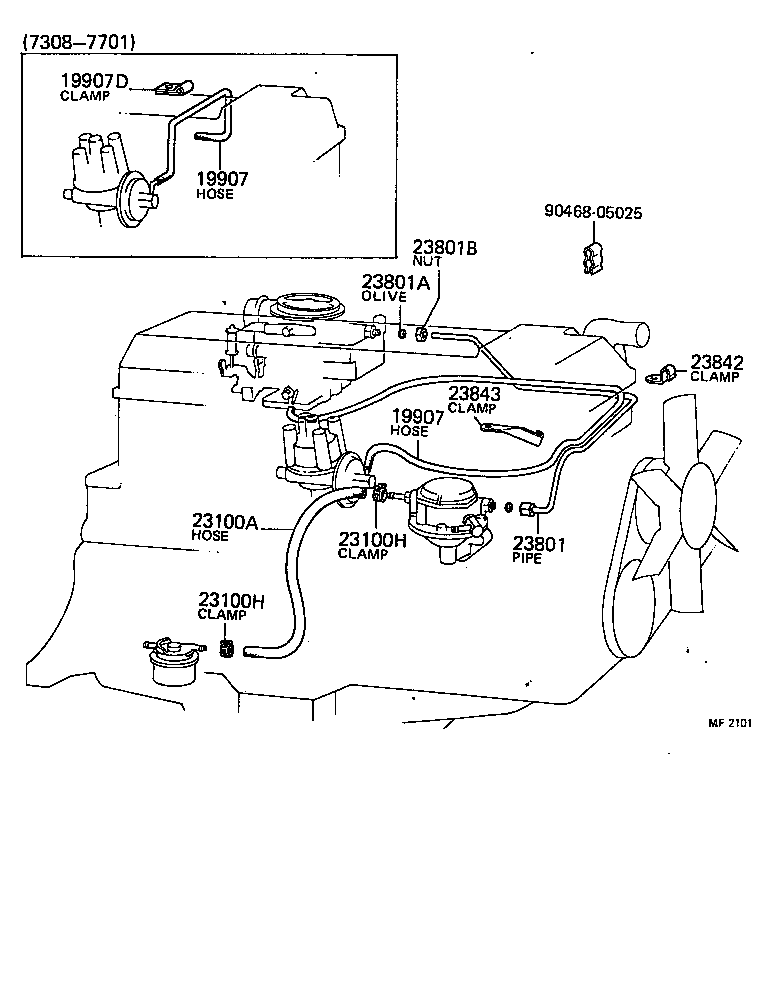

Click highlighted areas on diagram

diagram 19907 19907 19907D 23100A 23100H 23100H 23801 23801A 23801B 23842 23843 9046805025
Part # Description Qty Price
19907 - HOSE, VACUUM, NO.1
90445-07007

16R,18R..RT102,104,112,114,117,118

L=440

 1
90445-07007

16R,18R..RT102,104,114,118

L=440

 1
19907 - HOSE, VACUUM, NO.1
90445-07007

16R,18R..RT102,104,112,114,117,118

L=440

 1
90445-07007

16R,18R..RT102,104,114,118

L=440

 1
19907D - CLAMP, DISTRIBUTOR VACUUM HOSE
90468-05025

16R,18R#..RT102,104,114,118

 1
90468-05025

16R,18R..RT102,104,112,114,117,118

 1
23100A - HOSE, FUEL
95331-06034

12R,16R,18R..RT10#,11#

L=340

 1
95331-06034

12R,16R,18R#..RT10#,11#

L=340

 1
95331-06030

12R#,16R,18R#..RT10#,11#

L=300

 1
95331-06034

16R,18R#..RT102,104,114,118

L=340

 1
23100H - CLIP(FOR FUEL HOSE)
90467-12140

12R,16R,18R..RT10#,11#

 2
96132-30600

12R#,16R,18R#..RT10#,11#

 2
23100H - CLIP(FOR FUEL HOSE)
90467-12140

12R,16R,18R..RT10#,11#

 2
96132-30600

12R#,16R,18R#..RT10#,11#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-33032

16R,18R..RT102,104,112,114,117,118

 1
23811-34030

16R,18R#..RT102,104,114,118

 1
23801A - OLIVE(FOR FUEL PIPE)
96395-71400

16R,18R..RT102,104,112,114,117,118

 2
23801B - NUT, UNION(FOR FUEL PIPE)
90402-13041

16R,18R..RT102,104,112,114,117,118

 2
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
90461-10407

16R,18R..RT102,104,112,114,117,118

 1
23843 - CLAMP, FUEL PIPE(HOSE), NO.3
90461-10844

16R,18R..RT102,104,112,114,117,118

 1
23842-34040

16R,18R#..RT102,104,114,118

 1
Common parts
90468-05025
