RT102L-KRF (1973)

Toyota Corona

Production Aug 1973 - Sep 1975
Engine 16R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)LHD

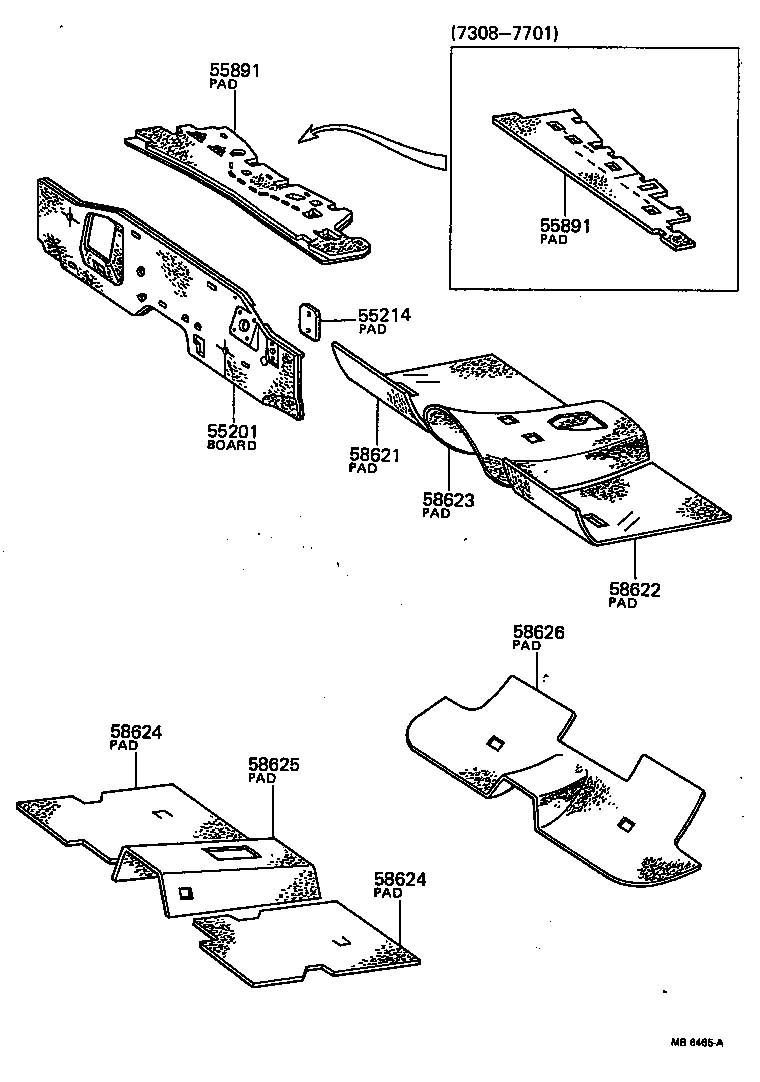

Click highlighted areas on diagram

diagram 55201 55214 55891 55891 58621 58622 58623 58624 58624 58625 58626
Part # Description Qty Price
55201 - BOARD SUB-ASSY, DASH PANEL SILENCER
55201-20200

RT100,102,112,116,117..LHD

FOR W/HEATER & COOLER

 1
55201-20190

RT10#,11#..LHD

FOR L/HEATER & COOLER

 1
55201-20220

RT10#,112,116,117,118..LHD

FOR W/HEATER,L/COOLER

 1
55891 - PAD, COWL TOP SILENCER, INNER RH
55891-20040

RT10#,11#..LHD

 1
55891 - PAD, COWL TOP SILENCER, INNER RH
55891-20040

RT10#,11#..LHD

 1
58621 - PAD, FLOOR SILENCER, FRONT RH
58621-20020

RT10#,11#

 1
58622 - PAD, FLOOR SILENCER, FRONT LH
58621-20020

RT10#,11#

 1
58623 - PAD, FLOOR SILENCER, FRONT CENTER
58623-20020

RT100,102,116,117,118..4F..STD

 1
58624 - PAD, FLOOR SILENCER, REAR SIDE
58626-20010

RT10#,11#

 2
58624 - PAD, FLOOR SILENCER, REAR SIDE
58626-20010

RT10#,11#

 2
58625 - PAD, FLOOR SILENCER, REAR CENTER
58624-20010

RT10#,11#..LHD

 1
58626 - PAD, FLOOR SILENCER, REAR
58627-20010

RT10#,110,112,114

 1
