RT102L-KDFW (1973)

Toyota Corona

Production Nov 1973 - Sep 1975
Engine 16R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)16R,18R#

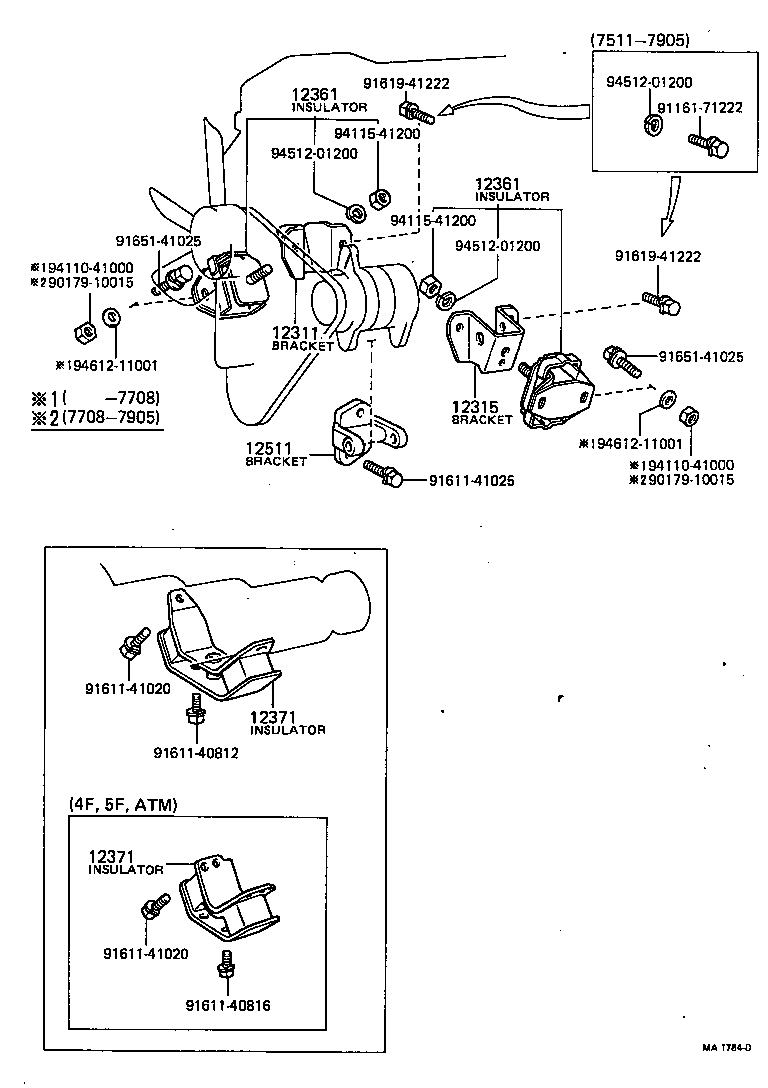

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12511 9017910015 9017910015 9116171222 9161140812 9161140816 9161141020 9161141020 9161141025 9161941222 9161941222 9165141025 9165141025 9411041000 9411041000 9411541200 9411541200 9451201200 9451201200 9451201200 9461211001 9461211001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-33011

16R,18R..RT102,104,112,114,117,118

 1
12311-33010

16R,18R..RT102,104,112,114,117,118

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-33010

16R,18R..RT102,104,112,114,117,118

 1
12315-33011

16R,18R..RT102,104,112,114,117,118

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-39035

16R,18R..RT102,104,112,114,117,118

LH

 1
12361-39095

16R,18R..RT102,104,112,114,117,118

RH

 1
12361-39096

16R,18R..RT102,104,112,114,117,118

RH

 1
12362-39036

16R,18R..RT102,104,112,114,117,118

LH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-39035

16R,18R..RT102,104,112,114,117,118

LH

 1
12361-39095

16R,18R..RT102,104,112,114,117,118

RH

 1
12361-39096

16R,18R..RT102,104,112,114,117,118

RH

 1
12362-39036

16R,18R..RT102,104,112,114,117,118

LH

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

16R..RT102,112,117

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

16R..RT102,112,117

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-33011

16R,18R..RT102,104,112,114,117,118

FOR 12V 45A ALTERNATOR

 1
12511-34020

16R,18R..RT102,104,112,114,117,118

FOR 12V 55A ALTERNATOR

 1
Common parts
90179-10015
91161-71222
91611-40812
91611-40816
91611-41020
91611-41025
91619-41222
91651-41025
94110-41000
94115-41200
94512-01200
94612-11001
