RT102L-KDF (1973)

Toyota Corona

Production Aug 1973 - Sep 1975
Engine 16R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7309-7509) ; (7509-7701)EUG

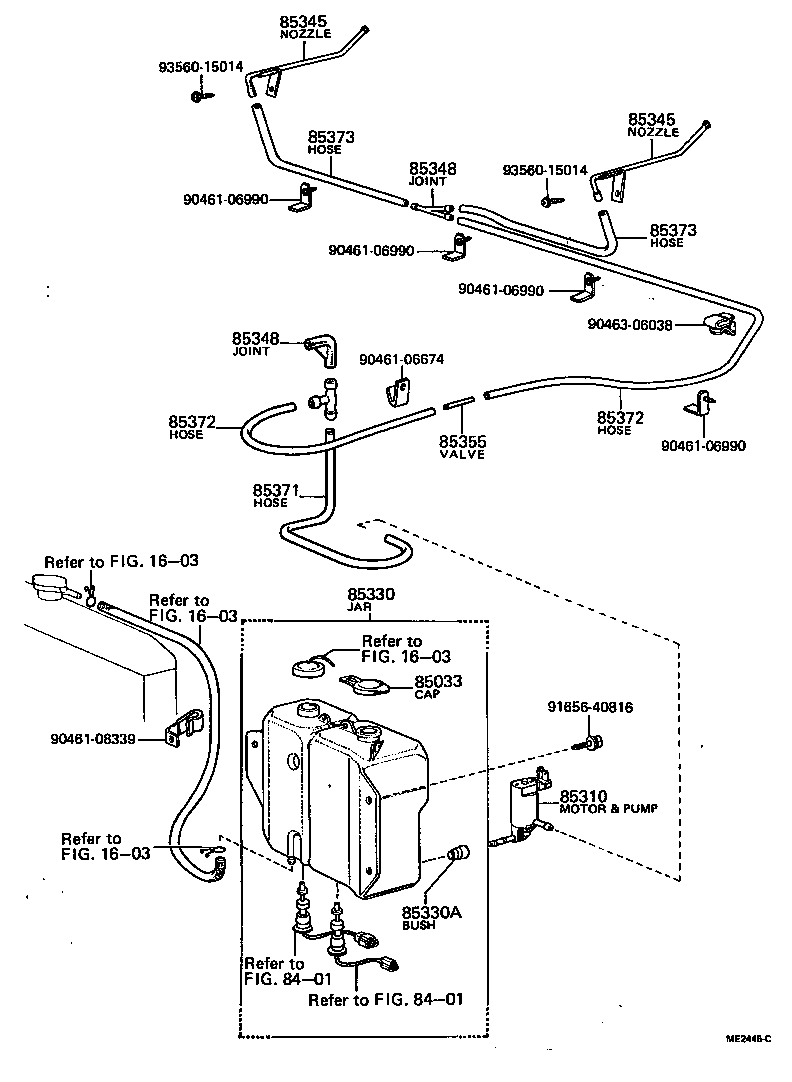

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 8401 8401 85033 85310 85330 85330A 85345 85345 85348 85348 85355 85371 85372 85372 85373 85373 9046106674 9046106990 9046106990 9046106990 9046106990 9046108339 9046306038 9165640816 9356015014 9356015014
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-20020

RT10#,11#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-12020

RT10#,11#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-20100

RT10#,11#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32057

RT10#,11#

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-20090

RT10#,11#

LH

 1
85341-20080

RT10#,11#

RH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-20090

RT10#,11#

LH

 1
85341-20080

RT10#,11#

RH

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-14010

RT10#,11#

 1
85355-20070

RT10#,11#

WASHER TANK SIDE

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-14010

RT10#,11#

 1
85355-20070

RT10#,11#

WASHER TANK SIDE

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-14010

RT10#,11#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06236

RT10#,11#

*H,L=450

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06051

RT10#,11#

L=320

 1
90446-06205

RT10#,11#

L=1200

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06051

RT10#,11#

L=320

 1
90446-06205

RT10#,11#

L=1200

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06267

RT10#,11#

*H,L=315

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06267

RT10#,11#

*H,L=315

 2
Common parts
90461-06674
90461-06990
90461-08339
90463-06038
91656-40816
93560-15014
Linked diagrams
1603
8401
