RT102L-HDF (1973)

Toyota Corona

Production Aug 1973 - Sep 1975
Engine 16R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)

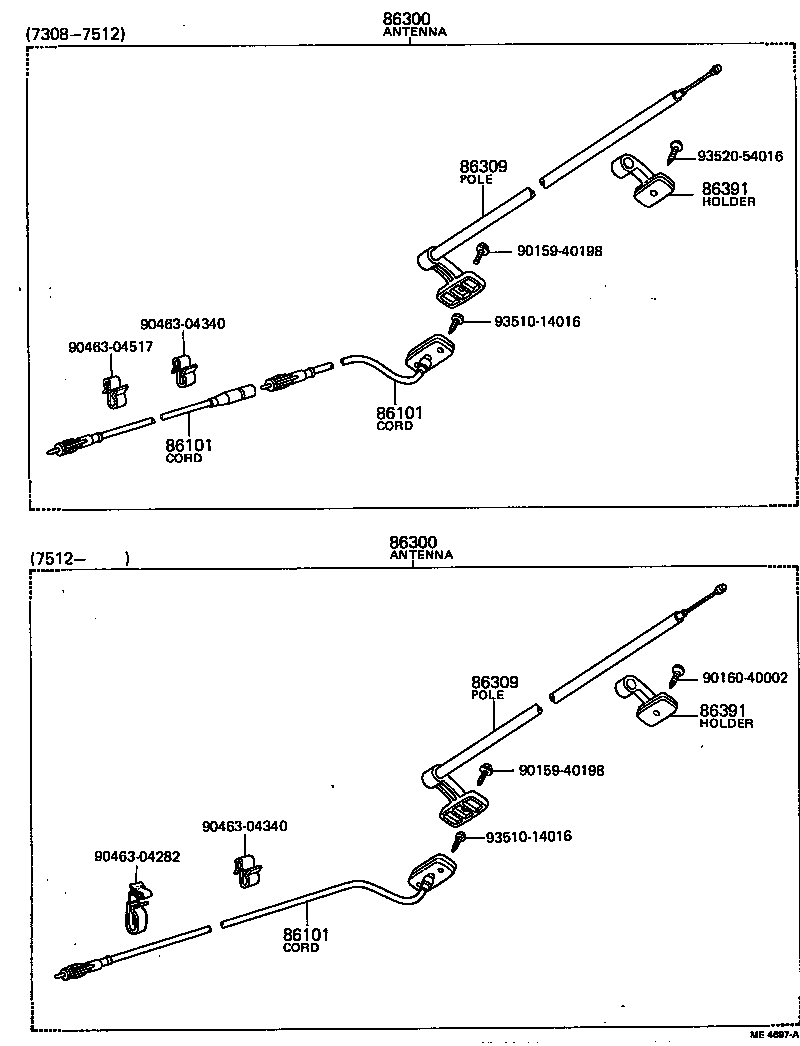

Click highlighted areas on diagram

diagram 86101 86101 86101 86300 86300 86309 86309 86391 86391 9015940198 9015940198 9016040002 9046304282 9046304340 9046304340 9046304517 9351014016 9351014016 9352054016
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-20030

RT102,104..4D

L=1200

 1
86101-20010

RT102,104..4D

L=450

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-20030

RT102,104..4D

L=1200

 1
86101-20010

RT102,104..4D

L=450

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-20030

RT102,104..4D

L=1200

 1
86101-20010

RT102,104..4D

L=450

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-29035

RT10#,110,112,114,116,117..LHD

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-29035

RT10#,110,112,114,116,117..LHD

 1
86309 - POLE SUB-ASSY, PILLAR ANTENNA
86309-20020

RT10#,110,112,116,117..LHD

 1
86309 - POLE SUB-ASSY, PILLAR ANTENNA
86309-20020

RT10#,110,112,116,117..LHD

 1
86391 - HOLDER, ANTENNA
86391-20060

RT102,104..4D

 1
86391 - HOLDER, ANTENNA
86391-20060

RT102,104..4D

 1
Common parts
90159-40198
90160-40002
90463-04282
90463-04340
90463-04517
93510-14016
93520-54016
