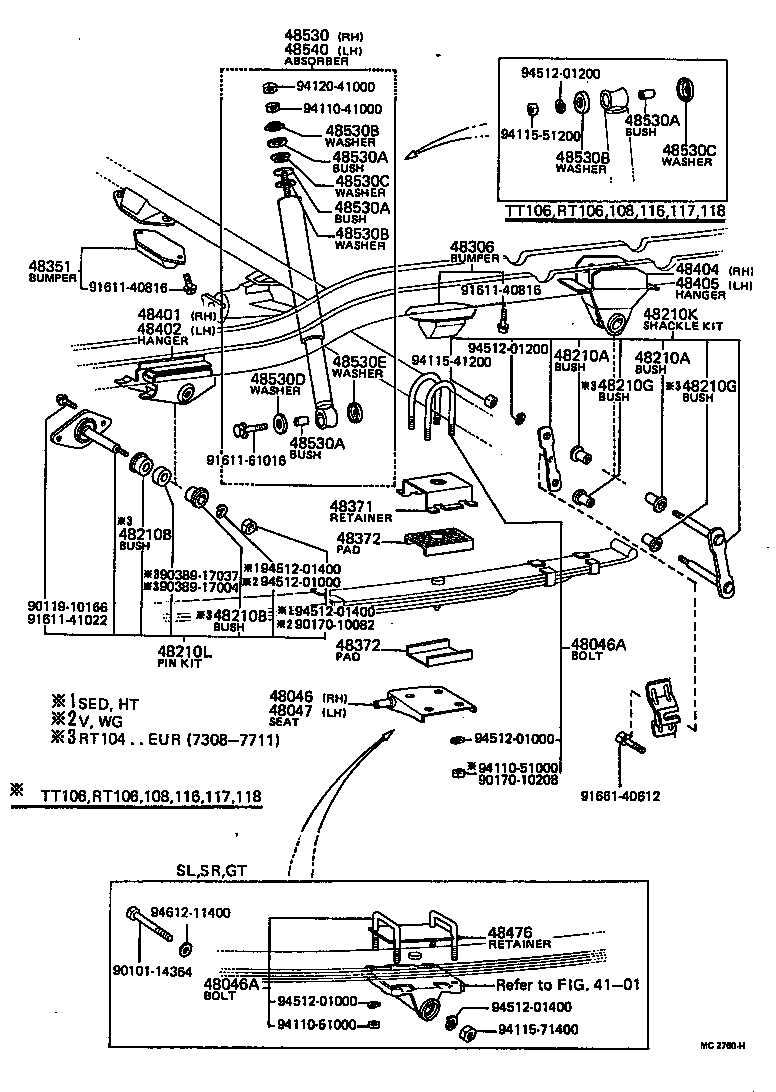

RT102L-HDF (1973)
Toyota Corona
(7308-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-20040 |
RT10#,110,112,114..ARL,GEN,PHL,SA |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-10123 |
RT10#,110,112,114..ARL,GEN,PHL,SA |
4 | ||
| 90118-10123 |
RT10#,110,112,114..GEN,PHL,SA |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-10123 |
RT10#,110,112,114..ARL,GEN,PHL,SA |
4 | ||
| 90118-10123 |
RT10#,110,112,114..GEN,PHL,SA |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-20040 |
RT10#,110,112,114..ARL,GEN,PHL,SA |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15039 |
RT10#,110,112,114 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15039 |
RT10#,110,112,114 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-17069 |
RT10#,112,114..ARL,GEN,SA |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-17069 |
RT10#,112,114..ARL,GEN,SA |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-15039 |
RT10#,110,112,114 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-15039 |
RT10#,110,112,114 |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-30011 |
RT10#,110,112,114 |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04484-20040 |
RT10#,112,114..ARL,GEN,SA |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-29025 |
RT102..GEN |
2 | ||
| 48306-29025 |
RT102,104..ARL,GEN |
2 | ||
| 48351 - BUMPER, DIFFERENTIAL CARRIER | ||||
| 48351-29025 |
RT10#,110,112,114 |
1 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-20080 |
RT102,104,110,112,114..ARL,GEN,PHL,SA |
2 | ||
| 48371-20080 |
RT102,104,110,112,114..GEN,PHL,SA |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-20030 |
RT102,104,110,112,114..ARL,GEN,PHL,SA |
4 | ||
| 48372-20030 |
RT102,104,110,112,114..GEN,PHL,SA |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-20030 |
RT102,104,110,112,114..ARL,GEN,PHL,SA |
4 | ||
| 48372-20030 |
RT102,104,110,112,114..GEN,PHL,SA |
4 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-29296 |
RT10#,110,112,114 |
1 | ||
| 48531-29295 |
RT10#,110,112,114 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
RT10#,110,112,114 |
4 | ||
| 90385-16060 |
RT10#,11# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
RT10#,110,112,114 |
4 | ||
| 90385-16060 |
RT10#,11# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
RT10#,110,112,114 |
4 | ||
| 90385-16060 |
RT10#,11# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
RT10#,110,112,114 |
4 | ||
| 90385-16060 |
RT10#,11# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02007 |
RT10#,110,112,114 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02007 |
RT10#,110,112,114 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02007 |
RT10#,110,112,114 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
RT10#,110,112,114 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
RT10#,110,112,114 |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
RT10#,110,112,114 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
RT10#,110,112,114 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-29295 |
RT10#,110,112,114 |
1 | ||
| 48531-29296 |
RT10#,110,112,114 |
1 | ||
| Common parts | ||||
| 90101-14364 | ||||
| 90119-10166 | ||||
| 90170-10082 | ||||
| 90170-10208 | ||||
| 90389-17004 | ||||
| 90389-17037 | ||||
| 91611-40816 | ||||
| 91611-41022 | ||||
| 91611-61016 | ||||
| 91661-40612 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94115-41200 | ||||
| 94115-51200 | ||||
| 94115-71400 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
| 94612-11400 | ||||
| Linked diagrams | ||||
| 4101 | ||||

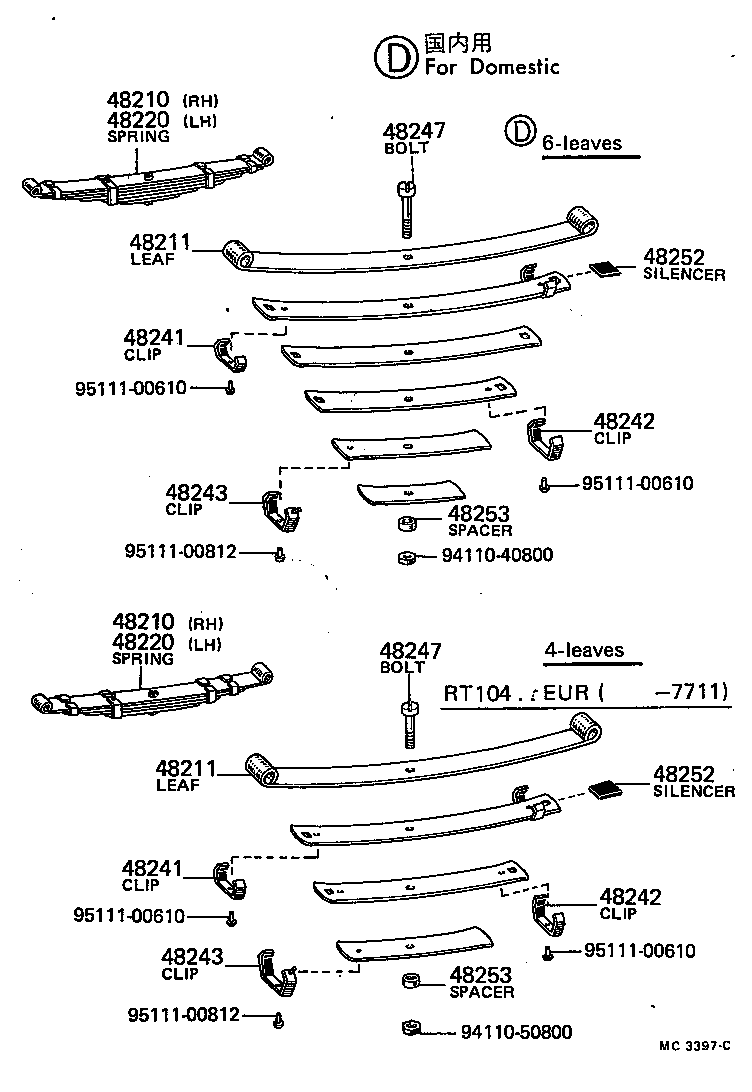

(7308-7905)RT10#,110,112,114
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-20280 |
RT102..GEN 5-LEAVES |
1 | ||
| 48210-20282 |
RT102..GEN 4-LEAVES |
1 | ||
| 48210-20281 |
RT102..GEN 5-LEAVES |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-20280 |
RT102..GEN 5-LEAVES |
1 | ||
| 48210-20282 |
RT102..GEN 4-LEAVES |
1 | ||
| 48210-20281 |
RT102..GEN 5-LEAVES |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-20230 |
RT102..GEN |
2 | ||
| 48211-20231 |
RT102..GEN |
2 | ||
| 48211-20231 |
RT102,104..ARL,GEN |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-20230 |
RT102..GEN |
2 | ||
| 48211-20231 |
RT102..GEN |
2 | ||
| 48211-20231 |
RT102,104..ARL,GEN |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-20280 |
RT102..GEN 5-LEAVES |
1 | ||
| 48210-20281 |
RT102..GEN 5-LEAVES |
1 | ||
| 48210-20282 |
RT102..GEN 5-LEAVES |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-20280 |
RT102..GEN 5-LEAVES |
1 | ||
| 48210-20281 |
RT102..GEN 5-LEAVES |
1 | ||
| 48210-20282 |
RT102..GEN 5-LEAVES |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-22010 |
RT10#,110,112,114 |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-22010 |
RT10#,110,112,114 |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-22010 |
RT10#,110,112..EUR,GEN,PHL |
4 | ||
| 48242-22010 |
RT10#,112,114 |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-22010 |
RT10#,110,112..EUR,GEN,PHL |
4 | ||
| 48242-22010 |
RT10#,112,114 |
4 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48243-20190 |
RT10#,110,112,114 |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48243-20190 |
RT10#,110,112,114 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-20100 |
RT102,104,110,112,114..ARL,GEN,PHL,SA |
2 | ||
| 48247-20100 |
RT102,104,110,112,114..GEN,PHL,SA |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-20100 |
RT102,104,110,112,114..ARL,GEN,PHL,SA |
2 | ||
| 48247-20100 |
RT102,104,110,112,114..GEN,PHL,SA |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
RT10#,110,112,114 50X50 |
16 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
RT10#,110,112,114 50X50 |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-20100 |
RT10#,110,112,114..ARL,GEN,PHL,SA |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-20100 |
RT10#,110,112,114..ARL,GEN,PHL,SA |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-50800 | ||||
| 94110-70800 | ||||
| 95111-00610 | ||||
| 95111-00812 | ||||

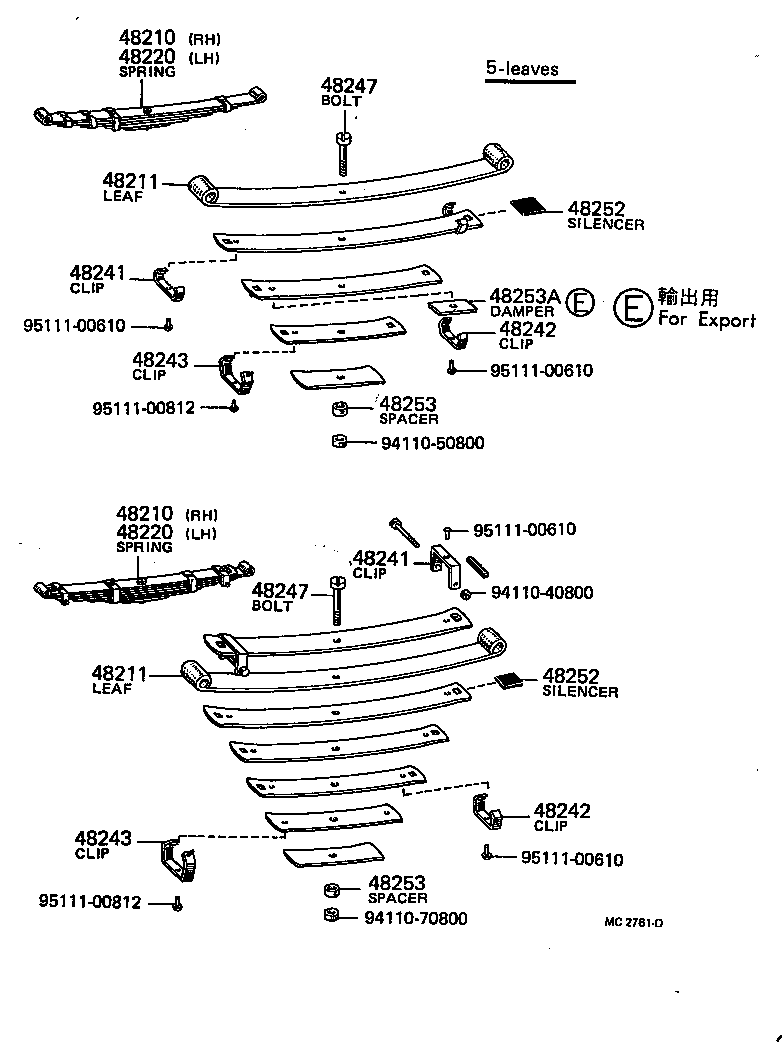

(7308-7905)RT10#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-20280 |
RT102..GEN 5-LEAVES |
1 | ||
| 48210-20282 |
RT102..GEN 4-LEAVES |
1 | ||
| 48210-20281 |
RT102..GEN 5-LEAVES |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-20280 |
RT102..GEN 5-LEAVES |
1 | ||
| 48210-20282 |
RT102..GEN 4-LEAVES |
1 | ||
| 48210-20281 |
RT102..GEN 5-LEAVES |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-20230 |
RT102..GEN |
2 | ||
| 48211-20231 |
RT102..GEN |
2 | ||
| 48211-20231 |
RT102,104..ARL,GEN |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-20230 |
RT102..GEN |
2 | ||
| 48211-20231 |
RT102..GEN |
2 | ||
| 48211-20231 |
RT102,104..ARL,GEN |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-20280 |
RT102..GEN 5-LEAVES |
1 | ||
| 48210-20281 |
RT102..GEN 5-LEAVES |
1 | ||
| 48210-20282 |
RT102..GEN 5-LEAVES |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-20280 |
RT102..GEN 5-LEAVES |
1 | ||
| 48210-20281 |
RT102..GEN 5-LEAVES |
1 | ||
| 48210-20282 |
RT102..GEN 5-LEAVES |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-22010 |
RT10#,110,112,114 |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-22010 |
RT10#,110,112,114 |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-22010 |
RT10#,110,112..EUR,GEN,PHL |
4 | ||
| 48242-22010 |
RT10#,112,114 |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-22010 |
RT10#,110,112..EUR,GEN,PHL |
4 | ||
| 48242-22010 |
RT10#,112,114 |
4 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48243-20190 |
RT10#,110,112,114 |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48243-20190 |
RT10#,110,112,114 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-20100 |
RT102,104,110,112,114..ARL,GEN,PHL,SA |
2 | ||
| 48247-20100 |
RT102,104,110,112,114..GEN,PHL,SA |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-20100 |
RT102,104,110,112,114..ARL,GEN,PHL,SA |
2 | ||
| 48247-20100 |
RT102,104,110,112,114..GEN,PHL,SA |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
RT10#,110,112,114 50X50 |
16 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
RT10#,110,112,114 50X50 |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-20100 |
RT10#,110,112,114..ARL,GEN,PHL,SA |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-20100 |
RT10#,110,112,114..ARL,GEN,PHL,SA |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-50800 | ||||
| 95111-00610 | ||||
| 95111-00812 | ||||
