RT102-KRFW (1973)
Toyota Corona

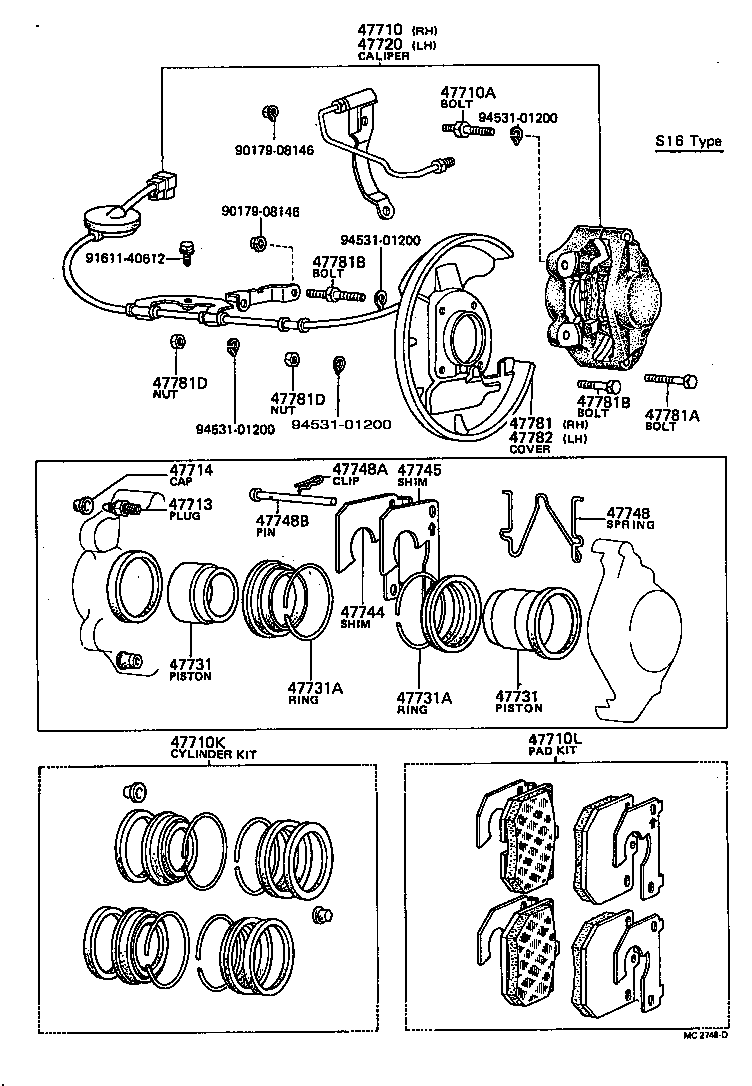

ILLUST NO. 1 OF 2(7308-7407)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710 - CALIPER ASSY, DISC BRAKE, FRONT, RH | ||||
| 47710-20090 |
RT102,104,114,117,118..ARL,EUR,SA 141N.D1SC |
1 | ||
| 47710-20091 |
RT102,104,114,117,118..ARL,EUR,SA 141N.D1SC |
1 | ||
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-20041 |
RT10#,11# |
1 | ||
| 04479-30021 |
RT102,104,114,117,118..ARL,EUR,SA |
1 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-20090 |
RT102,104,114,117,118..ARL,EUR,SA 141N.D1SC |
1 | ||
| 04491-20050 |
RT10#,112,114,116,117,118 13IN.DISC |
1 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20030 |
RT102,104,114,117,118..ARL,EUR,SA 141N.DISC |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
2 | ||
| 47720 - CALIPER ASSY, DISC BRAKE, FRONT, LH | ||||
| 47720-20090 |
RT102,104,114,117,118..ARL,EUR,SA 141N.D1SC |
1 | ||
| 47720-20091 |
RT102,104,114,117,118..ARL,EUR,SA 141N.D1SC |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-20040 |
RT102,104,114,118..ARL,EUR,SA |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-58026 |
RT102,104,114,117,118..ARL,EUR,SA |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-20040 |
RT102,104,114,117,118..ARL,EUR,SA 141N.DISC |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 91161-71250 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
2 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 91161-71230 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
6 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 91161-71230 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
6 | ||
| 47781D - NUT(FOR DUST COVER SETTING) | ||||
| 94115-51200 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
8 | ||
| 47781D - NUT(FOR DUST COVER SETTING) | ||||
| 94115-51200 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-20040 |
RT102,104,114,117,118..ARL,EUR,SA |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90206-08084 | ||||
| 90209-08098 | ||||
| 90468-08118 | ||||
| 91611-40612 | ||||
| 94531-01200 | ||||
ILLUST NO. 1 OF 2(7308-7501)ARL,EUR,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710 - CALIPER ASSY, DISC BRAKE, FRONT, RH | ||||
| 47710-20090 |
RT102,104,114,117,118..ARL,EUR,SA 141N.D1SC |
1 | ||
| 47710-20091 |
RT102,104,114,117,118..ARL,EUR,SA 141N.D1SC |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12379 |
RT102,104,114,117,118..ARL,EUR,SA |
4 | ||
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-20041 |
RT10#,11# |
1 | ||
| 04479-30021 |
RT102,104,114,117,118..ARL,EUR,SA |
1 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-20090 |
RT102,104,114,117,118..ARL,EUR,SA 141N.D1SC |
1 | ||
| 04491-20050 |
RT10#,112,114,116,117,118 13IN.DISC |
1 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20030 |
RT102,104,114,117,118..ARL,EUR,SA 141N.DISC |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
2 | ||
| 47720 - CALIPER ASSY, DISC BRAKE, FRONT, LH | ||||
| 47720-20090 |
RT102,104,114,117,118..ARL,EUR,SA 141N.D1SC |
1 | ||
| 47720-20091 |
RT102,104,114,117,118..ARL,EUR,SA 141N.D1SC |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-20040 |
RT102,104,114,118..ARL,EUR,SA |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-20040 |
RT102,104,114,118..ARL,EUR,SA |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-58026 |
RT102,104,114,117,118..ARL,EUR,SA |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-58026 |
RT102,104,114,117,118..ARL,EUR,SA |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-30012 |
RT102,104,114,117,118..ARL,EUR,SA 14IN.DISC |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-30012 |
RT102,104,114,117,118..ARL,EUR,SA |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-30012 |
RT102,104,114,117,118..ARL,EUR,SA |
2 | ||
| 47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90468-12024 |
RT102,104,114,117,118..ARL,EUR,SA |
4 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90240-06098 |
RT102,104,114,117,118..ARL,EUR,SA |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-20040 |
RT102,104,114,117,118..ARL,EUR,SA 141N.DISC |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 91161-71250 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
2 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 91161-71230 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
6 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 91161-71230 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
6 | ||
| 47781D - NUT(FOR DUST COVER SETTING) | ||||
| 94115-51200 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
8 | ||
| 47781D - NUT(FOR DUST COVER SETTING) | ||||
| 94115-51200 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-20040 |
RT102,104,114,117,118..ARL,EUR,SA |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91611-40612 | ||||
| 94531-01200 | ||||
