RT102-KRF (1973)

Toyota Corona

Production Aug 1973 - Sep 1975
Engine 16R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7509)RT100,102,117 ; (7509-7808)RT100 ; (7509-7905)RT104..LHD..3FC ; (7509-79

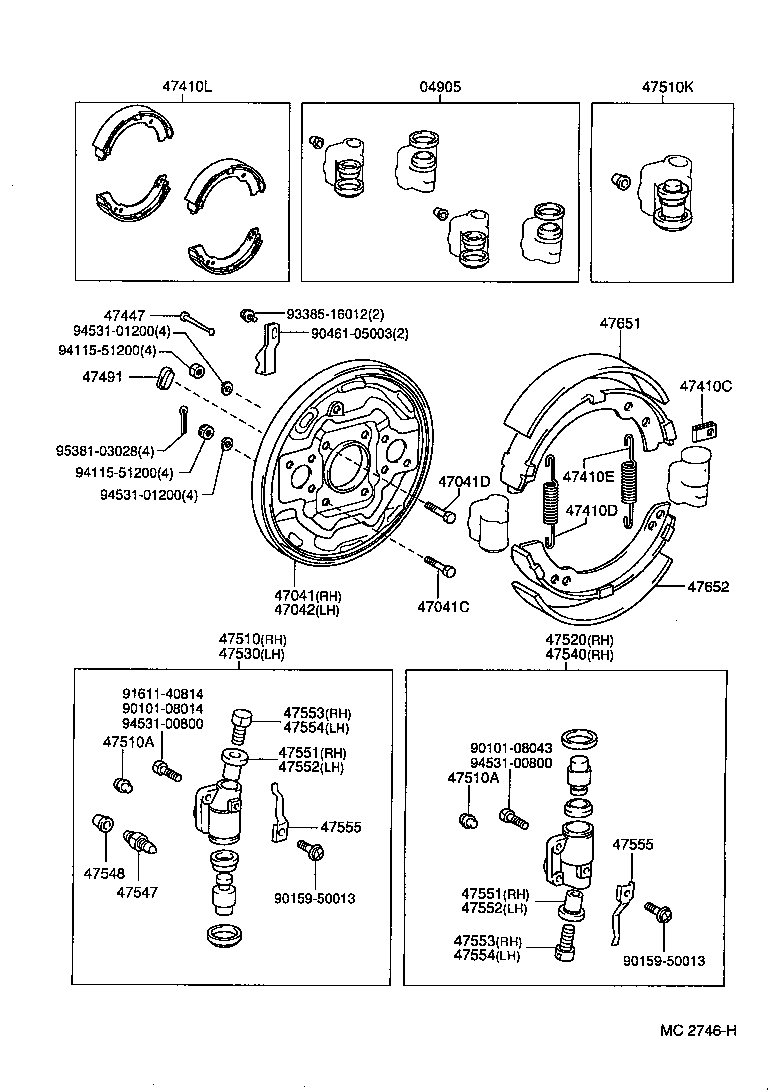

Click highlighted areas on diagram

diagram 04905 47041 47041C 47041D 47042 47410C 47410D 47410E 47410L 47447 47491 47510 47510A 47510A 47510K 47520 47530 47540 47547 47548 47551 47551 47552 47552 47553 47553 47554 47554 47555 47555 47651 47652 9010108014 9010108043 9015950013 9015950013 9046105003 9161140814 9338516012 9411551200 9411551200 9453100800 9453100800 9453101200 9453101200 9538103028
Part # Description Qty Price
Common parts
90101-08014
90101-08043
90159-50013
90461-05003
91611-40814
93385-16012
94115-51200
94531-00800
94531-01200
95381-03028
