RT102-KDF (1973)
Toyota Corona
Production
Aug 1973
-
Sep 1975
Engine
16R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7905)RT10#,110,112,114

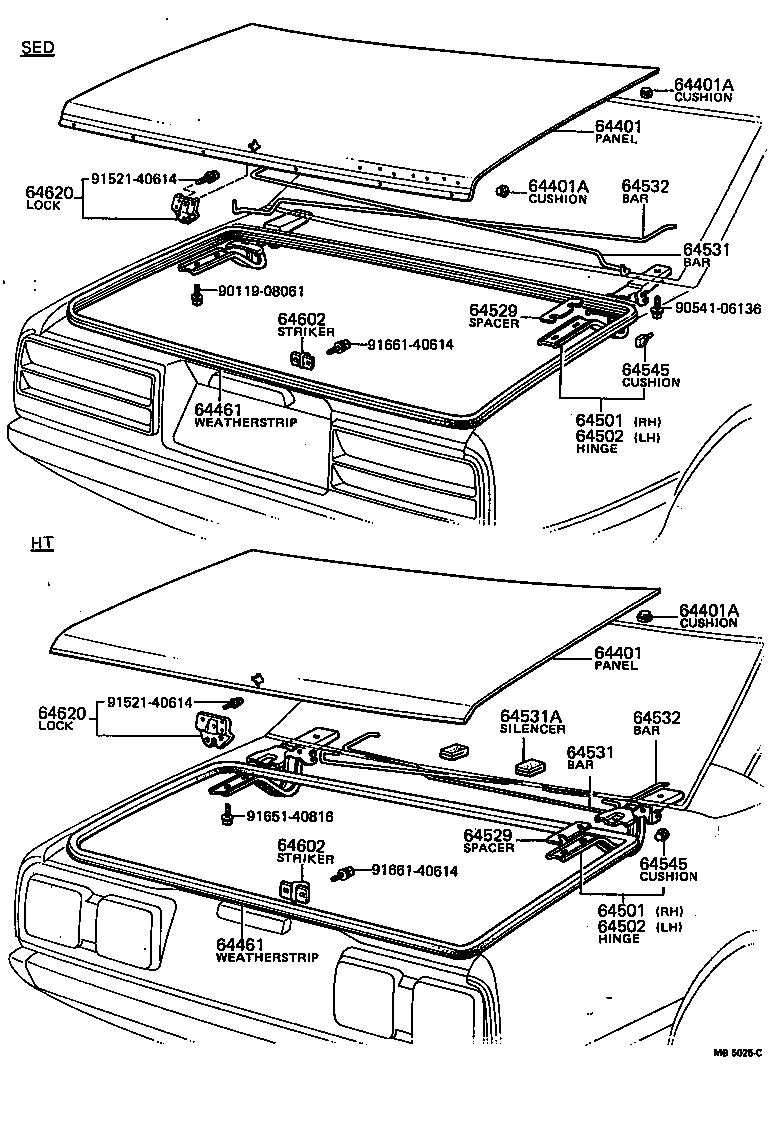

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-20270 |
RT10# |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-20270 |
RT10# |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09130 |
RT10# FRONT |
2 | ||
| 90541-09139 |
RT10# REAR |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09130 |
RT10# FRONT |
2 | ||
| 90541-09139 |
RT10# REAR |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09130 |
RT10# FRONT |
2 | ||
| 90541-09139 |
RT10# REAR |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-20090 |
RT10# |
1 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-20090 |
RT10# |
1 | ||
| 64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-20040 |
RT10# |
1 | ||
| 64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-20040 |
RT10# |
1 | ||
| 64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-20030 |
RT10# |
1 | ||
| 64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-20030 |
RT10# |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
RT10#,110,112,114 |
4 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
RT10#,110,112,114 |
4 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-20060 |
RT10# |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-20060 |
RT10# |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-20060 |
RT10# |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-20060 |
RT10# |
1 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-06136 |
RT10# |
2 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-06136 |
RT10# |
2 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64602-22020 |
RT10#,110,112,114 |
1 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64602-22020 |
RT10#,110,112,114 |
1 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-29015 |
RT10#,110,112,114 |
1 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-29015 |
RT10#,110,112,114 |
1 | ||
| Common parts | ||||
| 90119-08061 | ||||
| 90541-06136 | ||||
| 91521-40614 | ||||
| 91651-40816 | ||||
| 91661-40614 | ||||
