RT102-KDF (1973)

Toyota Corona

Production Aug 1973 - Sep 1975
Engine 16R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RHD

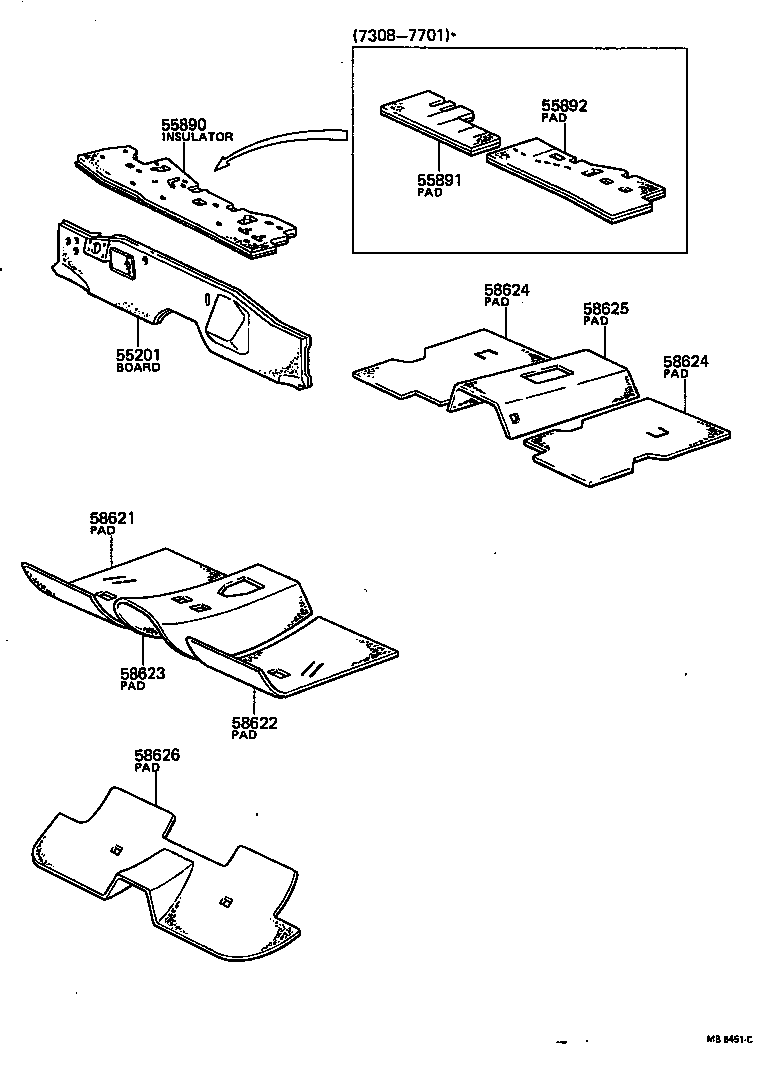

Click highlighted areas on diagram

diagram 55201 55890 55891 55892 58621 58622 58623 58624 58624 58625 58626
Part # Description Qty Price
55201 - BOARD SUB-ASSY, DASH PANEL SILENCER
55201-20170

RT10#,112,114,116,117,118..RHD

FOR W/HEATER,L/COOLER

 1
55201-20180

RT100,102,112,116,117..RHD..(EUR,GEN)

FOR L/HEATER & COOLER

 1
55201-20210

RT100,102,112..RHD..(EUR,GEN)

FOR W/HEATER & COOLER

 1
55891 - PAD, COWL TOP SILENCER, INNER RH
55891-20030

RT10#,112,114,116,117,118..RHD

 1
55892 - PAD, COWL TOP SILENCER, INNER LH
55892-20040

RT10#,112,114,116,117,118..RHD

 1
58621 - PAD, FLOOR SILENCER, FRONT RH
58621-20020

RT10#,11#

 1
58622 - PAD, FLOOR SILENCER, FRONT LH
58621-20020

RT10#,11#

 1
58624 - PAD, FLOOR SILENCER, REAR SIDE
58626-20010

RT10#,11#

 2
58624 - PAD, FLOOR SILENCER, REAR SIDE
58626-20010

RT10#,11#

 2
58626 - PAD, FLOOR SILENCER, REAR
58627-20010

RT10#,110,112,114

 1
