RT102-HDF (1973)

Toyota Corona

Production Aug 1973 - Sep 1975
Engine 16R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)4D

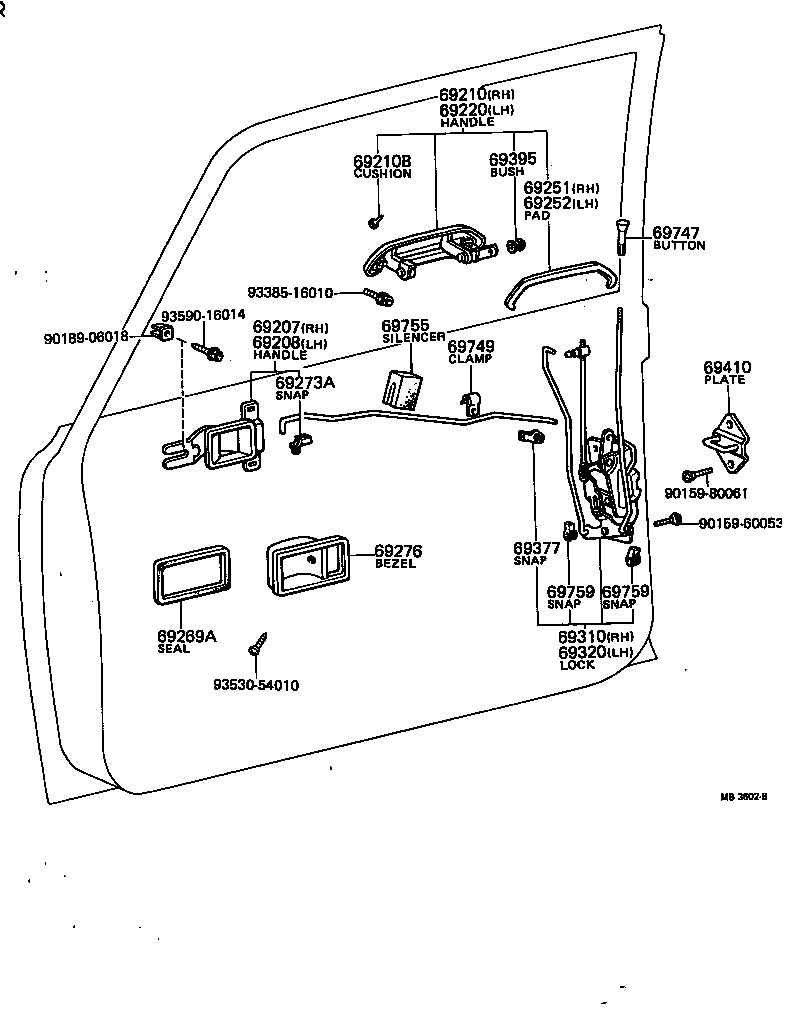

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69251 69252 69269A 69273A 69276 69310 69320 69377 69395 69410 69747 69749 69755 69759 69759 9015960053 9015980061 9018906018 9338516010 9353054010 9359016014
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69207-20030

RT10#,11#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69208-20020

RT10#,11#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-20050

RT10#,11#

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

RT10#,11#

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-20050

RT10#,11#

 1
69251 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69251-20030

RT10#,11#

 1
69252 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69251-20030

RT10#,11#

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69276-22020

RT10#,11#

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-20050

RT10#,116,117,118..4D

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-20050

RT10#,116,117,118..4D

 1
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
69395-22010

RT10#,11#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20050

RT10#,11#

 2
69747 - BUTTON, DOOR LOCKING
69747-30012

RT10#,116,117,118..4D

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

RT10#,11#

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-12011

RT10#,11#

 2
Common parts
90159-60053
90159-80061
90189-06018
93385-16010
93530-54010
93590-16014
