RT100L-YRF (1973)
Toyota Corona
(7308-7905)RT100,116..LHD ; (7308-7905)RT100,116..RHD..4F ; (7308-7905)RT102,104,11
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46110 - HANDLE ASSY, PARKING BRAKE CONTROL | ||||
| 46201-20020 |
RT100,116..LHD;RT100..RHD..4F..STD |
1 | ||
| 46120-20040 |
RT100..LHD..3H STEICK TYPE |
1 | ||
| 46201-20020 |
RT10#,11#..LHD CENTER TYPE |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1001301 |
RT100,104,11#..LHD BLACK,OD=13.8-14.4,BLACK,TRIM2# |
1 | ||
| 46217-10013 |
RT10#,11#..LHD BLACK,13.8-14.4 |
1 | ||
| 46225 - ROD, PARKING BRAKE PAWL RELEASE | ||||
| 46225-20020 |
RT10#,11#..LHD |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10745 |
RT10#,11#..LHD |
1 | ||
| 46231 - SECTOR, PARKING BRAKE LEVER | ||||
| 46231-20020 |
RT10#,11#..LHD |
1 | ||
| 46236 - PIN, LEVER PIVOT | ||||
| 46236-12010 |
RT10#,11#..LHD |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-20020 |
RT10#,11#..LHD |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-20020 |
RT100,116..LHD;RT100..RHD..4F..STD |
1 | ||
| 46243-20021 |
RT100..RHD..4F..STD;RT100,104,110,116..LHD |
1 | ||
| 46243-20021 |
RT104,11#..LHD;RT100..LHD..GEN;RT100..DLX..PHL |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-20020 |
RT10#,11# |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-20030 |
RT100..3H;RT116..RHD..3H STEICK TYPE |
1 | ||
| 46311-22020 |
RT10#,11#..LHD CENTER TYPE |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90240-08156 |
RT100..3H;RT116..RHD..3H STEICK TYPE |
1 | ||
| 90243-06017 |
RT10#,11#..LHD CENTER TYPE |
1 | ||
| 46311C - SPACER(FOR PARKING BRAKE PAWL PIVOT) | ||||
| 90560-06195 |
RT10#,11#..LHD |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-20030 |
RT10#,11#..LHD |
1 | ||
| 46361C - GROMMET(FOR PARKING BRAKE PULL ROD) | ||||
| 90480-01429 |
RT10#,11#..LHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-20060 |
RT10#,110,112,114 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-20060 |
RT10#,110,112,114 |
1 | ||
| Common parts | ||||
| 90179-06166 | ||||
| 90240-08037 | ||||
| 90461-12302 | ||||
| 90461-12965 | ||||
| 90468-12070 | ||||
| 90560-10200 | ||||
| 91616-40614 | ||||
| 91616-40616 | ||||
| 91651-40614 | ||||
| 91651-40825 | ||||
| 94120-40600 | ||||
| 94180-40600 | ||||
| 94181-10600 | ||||
| 94611-10800 | ||||
| 94612-10600 | ||||
| 96990-10060 | ||||

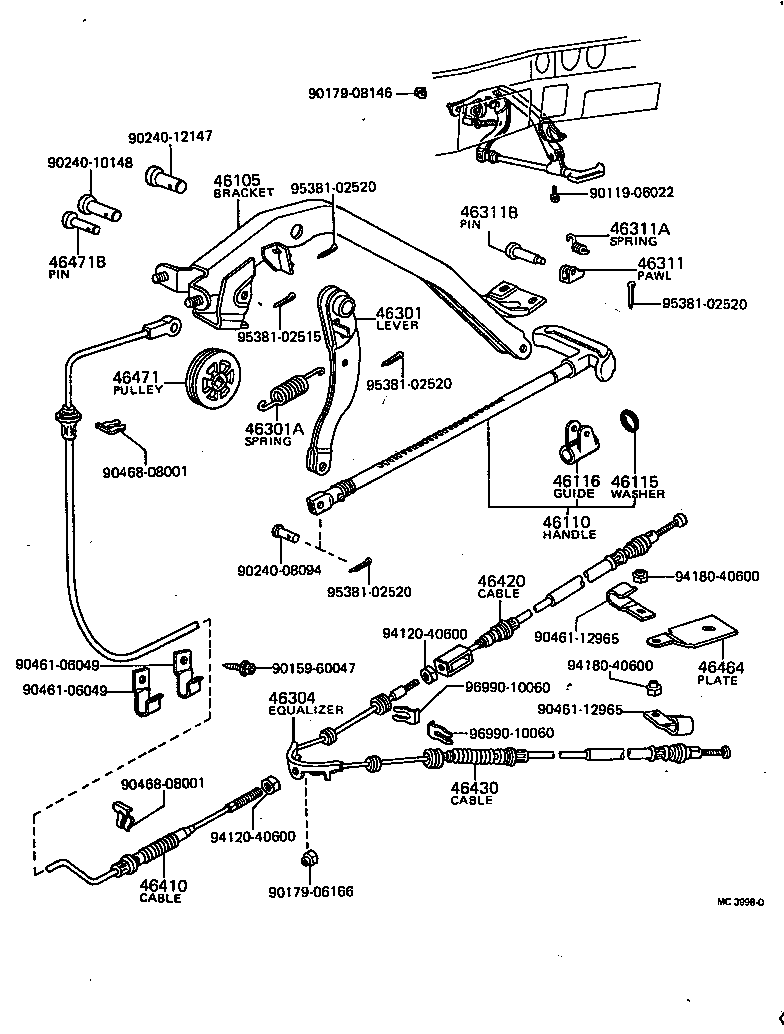

(7504-7808)LHD..3H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46105 - BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL | ||||
| 46105-20031 |
RT100..LHD..3H |
1 | ||
| 46105-20030 |
RT100..LHD..3H |
1 | ||
| 46110 - HANDLE ASSY, PARKING BRAKE CONTROL | ||||
| 46201-20020 |
RT100,116..LHD;RT100..RHD..4F..STD |
1 | ||
| 46120-20040 |
RT100..LHD..3H STEICK TYPE |
1 | ||
| 46201-20020 |
RT10#,11#..LHD CENTER TYPE |
1 | ||
| 46115 - WASHER, PARKING BRAKE PLUNGER | ||||
| 46115-20010 |
RT100..3H;RT116..RHD..3H |
1 | ||
| 46116 - GUIDE, PARKING BRAKE PLUNGER | ||||
| 46116-20050 |
RT100..3H;RT116..RHD..3H |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-20030 |
RT100..LHD..3H |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-12175 |
RT100..3H;RT116..RHD..3H |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-20020 |
RT10#,11# |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-20030 |
RT100..3H;RT116..RHD..3H STEICK TYPE |
1 | ||
| 46311-22020 |
RT10#,11#..LHD CENTER TYPE |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08405 |
RT100..3H;RT116..RHD..3H |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90240-08156 |
RT100..3H;RT116..RHD..3H STEICK TYPE |
1 | ||
| 90243-06017 |
RT10#,11#..LHD CENTER TYPE |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-20140 |
RT100..LHD..3H |
1 | ||
| 46410-20141 |
RT100..LHD..3H |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-20060 |
RT10#,110,112,114 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-20060 |
RT10#,110,112,114 |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20020 |
RT100..3H;RT116..RHD..3H |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-10157 |
RT100..3H;RT116..RHD..3H |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90159-60047 | ||||
| 90179-06166 | ||||
| 90179-08146 | ||||
| 90240-08094 | ||||
| 90240-10148 | ||||
| 90240-12147 | ||||
| 90461-06049 | ||||
| 90461-12965 | ||||
| 90468-08001 | ||||
| 94120-40600 | ||||
| 94180-40600 | ||||
| 95381-02515 | ||||
| 95381-02520 | ||||
| 96990-10060 | ||||
