RT100L-YDF (1973)
Toyota Corona
Production
Aug 1973
-
Aug 1978
Engine
12R
Transmission
3H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7808)12R#

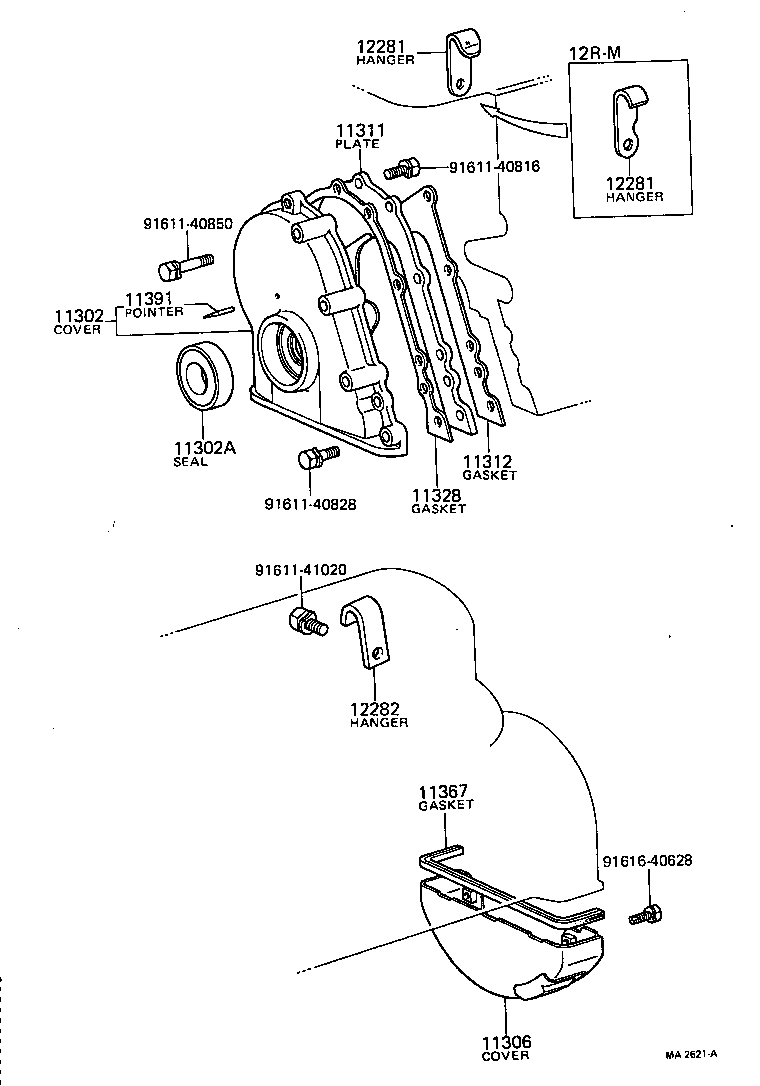

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-31903 |
12R..RT100,116 |
1 | ||
| 11321-30903 |
12R..RT100,110,116 |
1 | ||
| 11321-31901 |
12R..RT100,110,116 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38002 |
12R#..RT100,110,116 HTC3 38.5 58 11 |
1 | ||
| 90311-38024 |
12R#..RT100,110,116 TC3 38.5 58 11 |
1 | ||
| 90311-38013 |
12R#..RT100 HTC3 38.5 58 11 |
1 | ||
| 11306 - COVER SUB-ASSY, FLYWHEEL HOUSING UNDER | ||||
| 11306-31021 |
12R#..RT100,110,116 |
1 | ||
| 11311 - PLATE, FRONT END | ||||
| 11311-31010 |
12R#..RT100,110,116 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-31010 |
12R#..RT100,110,116 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-31010 |
12R#..RT100,110,116 |
1 | ||
| 11367 - GASKET, FLYWHEEL HOUSING UNDER | ||||
| 11367-31020 |
12R#..RT100,110,116 |
1 | ||
| 11391 - POINTER, TIMING | ||||
| 11391-32010 |
12R..RT100,110,116 |
1 | ||
| 11391-31021 |
12R#..RT100,110,116 |
1 | ||
| 11391-31020 |
12R..RT100,110,116 |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-42010 |
12R..RT100,116 |
1 | ||
| 12281-31020 |
12R..RT100,110,116 |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-42010 |
12R..RT100,116 |
1 | ||
| 12281-31020 |
12R..RT100,110,116 |
1 | ||
| 12282 - HANGER, ENGINE, NO.2 | ||||
| 12282-31020 |
12R#..RT100,110,116 |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 91611-40828 | ||||
| 91611-40850 | ||||
| 91611-41020 | ||||
| 91616-40628 | ||||
