RT100L-KRFM (1975)

Toyota Corona

Production Nov 1975 - Aug 1978
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7511-7808)12R

Click highlighted areas on diagram

diagram 16331 16331A 16341 16361 16361A 16365 16381 16400 16400B 16400F 16401 16470A 16470B 16470B 16471 16571 16571A 16571A 16572 16572A 16572A 16701 16701 16701 9046108339 9161140825 9161160622 9161160640 9166140820 9166640820 9166640820 9166640820
Part # Description Qty Price
16331 - OUTLET, WATER
16331-31010

12R..RT100,110,116

 1
16331-31031

12R..RT100,116

 1
16331A - THERMOSTAT
90916-03037

12R,16R,18R..RT10#,11#

WAX 82-95 KUZEH

 1
90916-03034

12R..RT100,116

WAX 82-95 FUJI-THOMSON

 1
90916-03037

12R..RT100,116

WAX 82-95 KUZEH

 1
16341 - GASKET, WATER OUTLET
16341-49010

12R,16R,18R..RT10#,11#

 1
16361 - FAN
16361-31021

12R#..RT100,110,116

4 BLADES

 1
16361-31050

12R..RT100,116

5 BLADES,W/COOLER

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99521-10897

12R..RT100,110,116

L=897

 1
99332-00900

12R#..RT100,116

L=900

 1
90916-02061

12R#..RT100,110,116

L=900

 1
90916-02055

12R#..RT100,110,116

L=900

 1
16365 - SPACER, FAN
16365-24010

12R..RT100,116

W/COOLER

 1
16381 - BAR, FAN BELT ADJUSTING
16381-30020

12RM..RT100,110,116

 1
16381-30021

12R..RT100,116

 1
16381-30020

12R..RT100,110,116

 1
16400 - RADIATOR ASSY
16400-31171

12R..RT100,116

 1
16400-31170

12RM..RT100,110,116

 1
16400-31170

12R..RT100,110,116

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

12R,16R,18R..RT10#,11#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96710-01007

12R,16R,18R..RT10#,11#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-36010

12R#,16R,18R#..RT10#,11#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12521

12R#,16R,18R#..RT10#,11#

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

12R,16R,18R..RT10#,11#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

12R,16R,18R..RT10#,11#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
85332-20030

12R#,16R,18R#..RT10#,11#

 1
16571 - HOSE, RADIATOR, INLET
16572-31040

12RM..RT100,110,116

 1
16572-31060

12R..RT100,116

 1
16572-31040

12R..RT100,110,116

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-43005

12R..RT100,116

ID=43

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-43005

12R..RT100,116

ID=43

 2
16572 - HOSE, RADIATOR, OUTLET
16571-31052

12R#..RT100,116

 1
16571-31051

12R#..RT100,110,116

 1
16571-31050

12R..RT100,110,116

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036

12R,16R..RT100,102,112,116,117

ID=47

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036

12R,16R..RT100,102,112,116,117

ID=47

 2
16701 - SHROUD SUB-ASSY, FAN
16711-31070

12R..RT100,116

UPP FOR COOLER

 1
16712-31010

12R..RT100,116

LWR FOR COOLER

 1
16711-31071

12R..RT100,116

UPP FOR COOLER

 1
16711-31060

12R#..RT100,110,116

 1
16701 - SHROUD SUB-ASSY, FAN
16711-31070

12R..RT100,116

UPP FOR COOLER

 1
16712-31010

12R..RT100,116

LWR FOR COOLER

 1
16711-31071

12R..RT100,116

UPP FOR COOLER

 1
16711-31060

12R#..RT100,110,116

 1
16701 - SHROUD SUB-ASSY, FAN
16711-31070

12R..RT100,116

UPP FOR COOLER

 1
16712-31010

12R..RT100,116

LWR FOR COOLER

 1
16711-31071

12R..RT100,116

UPP FOR COOLER

 1
16711-31060

12R#..RT100,110,116

 1
Common parts
90461-08339
91611-40825
91611-60622
91611-60640
91661-40820
91666-40820

(7512-7808)12RM

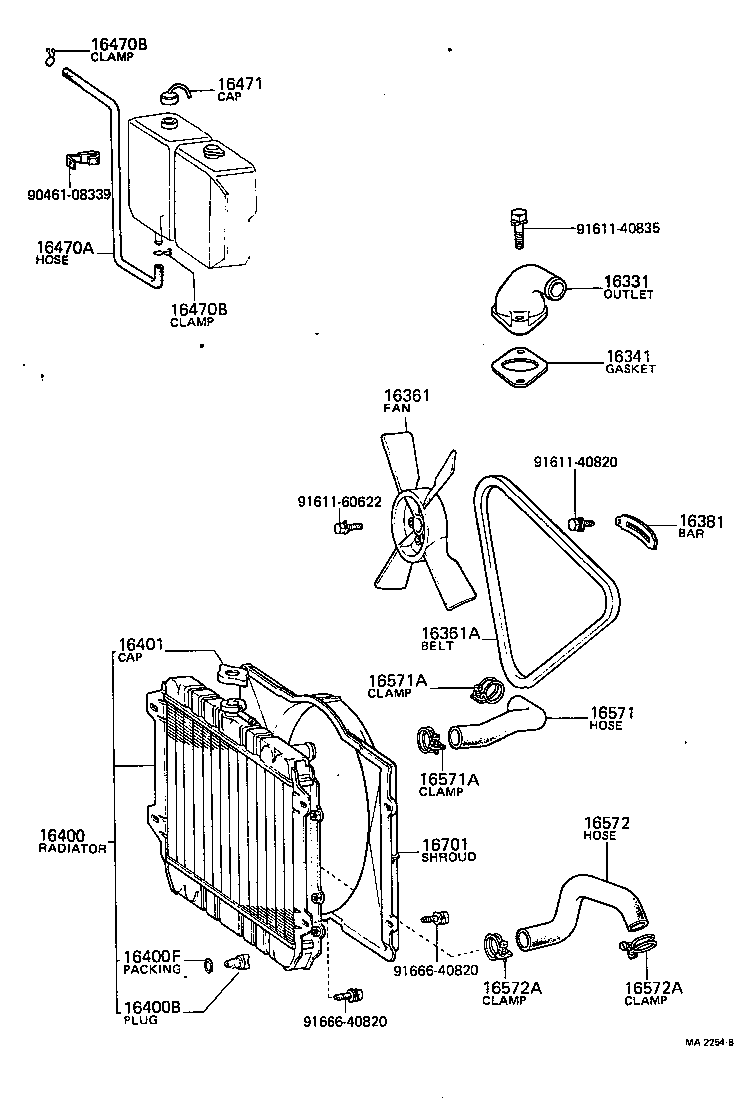

Click highlighted areas on diagram

diagram 16331 16341 16361 16361A 16381 16400 16400B 16400F 16401 16470A 16470B 16470B 16471 16571 16571A 16571A 16572 16572A 16572A 16701 9046108339 9161140820 9161140835 9161160622 9166640820 9166640820
Part # Description Qty Price
16331 - OUTLET, WATER
16331-31010

12R..RT100,110,116

 1
16331-31031

12R..RT100,116

 1
16341 - GASKET, WATER OUTLET
16341-49010

12R,16R,18R..RT10#,11#

 1
16361 - FAN
16361-31021

12R#..RT100,110,116

4 BLADES

 1
16361-31050

12R..RT100,116

5 BLADES,W/COOLER

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99521-10897

12R..RT100,110,116

L=897

 1
99332-00900

12R#..RT100,116

L=900

 1
90916-02061

12R#..RT100,110,116

L=900

 1
90916-02055

12R#..RT100,110,116

L=900

 1
16381 - BAR, FAN BELT ADJUSTING
16381-30020

12RM..RT100,110,116

 1
16381-30021

12R..RT100,116

 1
16381-30020

12R..RT100,110,116

 1
16400 - RADIATOR ASSY
16400-31171

12R..RT100,116

 1
16400-31170

12RM..RT100,110,116

 1
16400-31170

12R..RT100,110,116

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

12R,16R,18R..RT10#,11#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96710-01007

12R,16R,18R..RT10#,11#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-36010

12R#,16R,18R#..RT10#,11#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12521

12R#,16R,18R#..RT10#,11#

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

12R,16R,18R..RT10#,11#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

12R,16R,18R..RT10#,11#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
85332-20030

12R#,16R,18R#..RT10#,11#

 1
16571 - HOSE, RADIATOR, INLET
16572-31040

12RM..RT100,110,116

 1
16572-31060

12R..RT100,116

 1
16572-31040

12R..RT100,110,116

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-43005

12R..RT100,116

ID=43

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-43005

12R..RT100,116

ID=43

 2
16572 - HOSE, RADIATOR, OUTLET
16571-31052

12R#..RT100,116

 1
16571-31051

12R#..RT100,110,116

 1
16571-31050

12R..RT100,110,116

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036

12R,16R..RT100,102,112,116,117

ID=47

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036

12R,16R..RT100,102,112,116,117

ID=47

 2
16701 - SHROUD SUB-ASSY, FAN
16711-31070

12R..RT100,116

UPP FOR COOLER

 1
16712-31010

12R..RT100,116

LWR FOR COOLER

 1
16711-31071

12R..RT100,116

UPP FOR COOLER

 1
16711-31060

12R#..RT100,110,116

 1
Common parts
90461-08339
91611-40820
91611-40835
91611-60622
91666-40820
