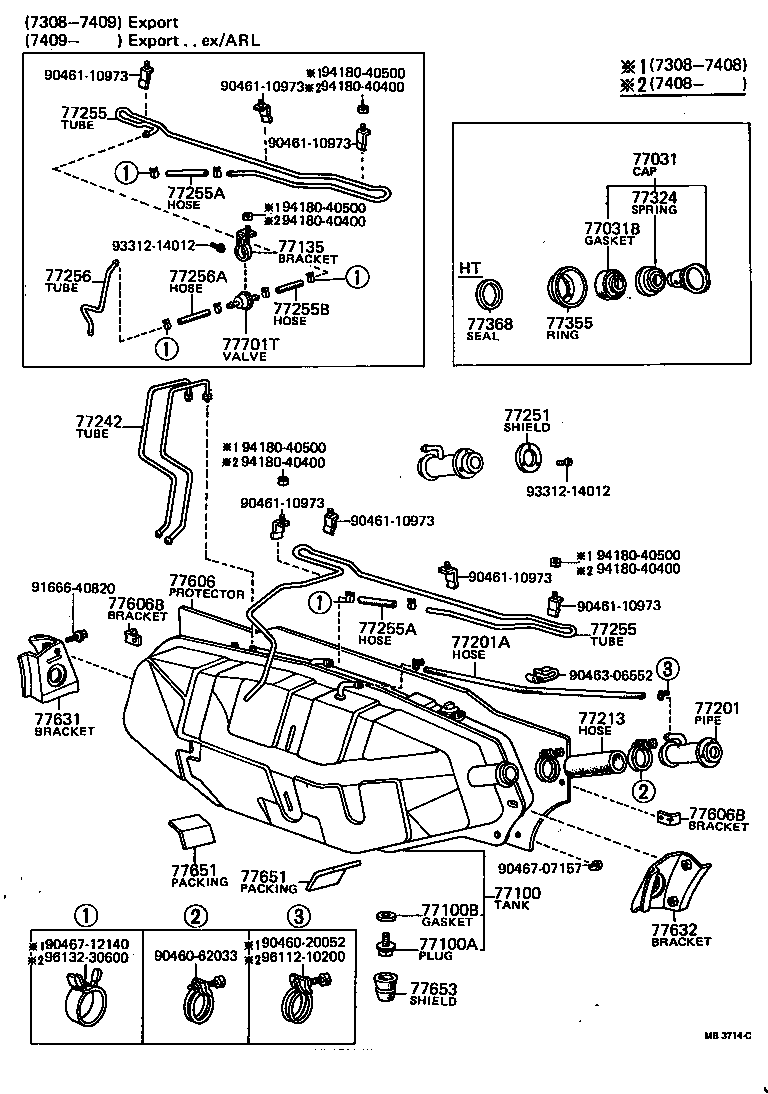

Toyota Corona RT100 FUEL TANK & TUBE

Part #	Description	Period	Qty
77031 - CAP ASSY, FUEL TANK
77031-20050	RT100,112,114 W/VALVE,W/KEY	08/1973 - 03/1974	1
69058-12030	RT10#;RT114..GEN;RT114..3FC..SA FOR W/KEY	09/1975 - 08/1976	1
77310-12052	RT10#,116,117,118..STD W/VALVE,L/KEY	08/1973 - 09/1975	1
77310-12052	RT100..STD..GEN;RT102,104,116,118..STD W/VALVE,L/KEY	01/1977 - 08/1977	1
69058-12030	RT100,104,114 FOR W/KEY	01/1977 - 06/1977	1
69058-12030	RT114..4F;RT100,104,110;RT114..3FC..GEN FOR W/KEY	08/1976 - 01/1977	1
77310-12052	RT100..STD..GEN;RT102,104,116,118..STD W/VALVE,L/KEY	09/1975 - 01/1977	1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12030	RT100,112,114 FOR W/KEY	08/1973 - 03/1974	1
77316-12050	RT100,104,114..ARL,EUR,GEN,SA	08/1976 - 01/1977	1
77316-12031	RT10#,110,114 FOR W/KEY	09/1975 - 08/1976	1
77316-12040	RT10#,116,117,118..STD FOR L/KEY	08/1973 - 09/1975	1
77316-12040	RT100..STD..GEN;RT102,104,116,118..STD FOR L/KEY	09/1975 - 01/1977	1
77100 - TANK ASSY, FUEL
77001-20160	RT10#,110,112,114	08/1973 - 08/1974	1
77001-20161	RT10#,110,112,114	08/1974 - 09/1975	1
77001-20162	RT10#,110,114	09/1975 - 07/1976	1
77100A - PLUG(FOR FUEL TANK)
90105-12018	RT10#,11#	08/1973 - 05/1979	1
77100B - GASKET(FOR FUEL TANK)
90430-12038	RT10#,11#	08/1973 - 08/1974	1
77135 - BRACKET, CHECK VALVE
77135-20011	RT10#,110,112,114	08/1973 - 08/1974	1
77135-20012	RT10#,110,112,114	08/1974 - 09/1974	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-20090	RT10#	08/1973 - 05/1979	1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
90445-18877	RT10#,110,112,114 L=500	08/1973 - 08/1974	1
90445-18877	RT10# L=500	08/1974 - 09/1975	1
77213 - HOSE, FUEL TANK SUB INLET
77213-20040	RT10#	08/1973 - 08/1974	1
77242 - TUBE, FUEL MAIN, NO.2
77209-20050	RT10#,110,112,114	08/1973 - 05/1979	1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77251-12011	RT10#,11#	08/1973 - 08/1976	1
77255 - TUBE, FUEL EMISSION, NO.2
77245-20010	RT10#	08/1973 - 09/1974	1
77245-20010	RT10#..EUR,GEN,SA	09/1974 - 09/1975	1
77255 - TUBE, FUEL EMISSION, NO.2
77245-20010	RT10#	08/1973 - 09/1974	1
77245-20010	RT10#..EUR,GEN,SA	09/1974 - 09/1975	1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95331-06010	RT10#,110,112,114 *H,L=100	08/1973 - 08/1974	1
95331-06011	RT10#,110,112,114 *H,L=110	08/1974 - 09/1975	1
95331-06015	RT10#,110,114 *H,L=150	09/1975 - 06/1977	1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95331-06010	RT10#,110,112,114 *H,L=100	08/1973 - 08/1974	1
95331-06011	RT10#,110,112,114 *H,L=110	08/1974 - 09/1975	1
95331-06015	RT10#,110,114 *H,L=150	09/1975 - 06/1977	1
77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2)
95331-06008	RT10#,110,112,114..EUR,GEN,PHL,SA *H,L=80	10/1974 - 06/1977	1
95331-06008	RT10#..EUR,GEN,SA *H,L=80	09/1974 - 10/1974	1
95331-06008	RT10# *H,L=80	08/1973 - 09/1974	1
77256 - TUBE, FUEL EMISSION, NO.3
77256-20050	RT10#,110,112,114	08/1973 - 09/1974	1
77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3)
95331-06011	RT10#,110,112,114..EUR,GEN,PHL,SA *H,L=110	09/1974 - 06/1977	1
95331-06011	RT10#,110,112,114 *H,L=110	08/1973 - 09/1974	1
77324 - SPRING, FUEL TANK CAP
77324-12010	RT100	08/1973 - 03/1974	1
77324-12011	RT10#,11#	09/1975 - 08/1976	1
77324-12011	RT100,116,117,118	03/1974 - 09/1975	1
77317-12030	RT100,104,114..ARL,EUR,GEN,SA	08/1976 - 01/1977	1
77355 - RING, INLET BOX
77355-20020	RT10#..4D	08/1973 - 06/1974	1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77641-20010	RT10#	08/1973 - 05/1979	1
77631 - BRACKET, FUEL TANK, NO.1
61651-20060	RT10#,110,112,114	08/1973 - 09/1974	1
77632 - BRACKET, FUEL TANK, NO.2
61652-20060	RT10#,110,112,114	08/1973 - 09/1974	1
77651 - PACKING, FUEL TANK BRACKET
77651-20010	RT10#	08/1973 - 09/1975	2
77651 - PACKING, FUEL TANK BRACKET
77651-20010	RT10#	08/1973 - 09/1975	2
77653 - SHIELD, FUEL TANK DRAIN PLUG
77653-20020	RT10#,110,112,114	08/1973 - 08/1974	1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020	RT10#,11#	08/1973 - 09/1975	1
Common parts
90460-20052
90460-62033
90461-10973
90463-06552
90467-07157
90467-12140
91666-40820
93312-14012
94180-40400
94180-40500
96112-10200
96132-30600

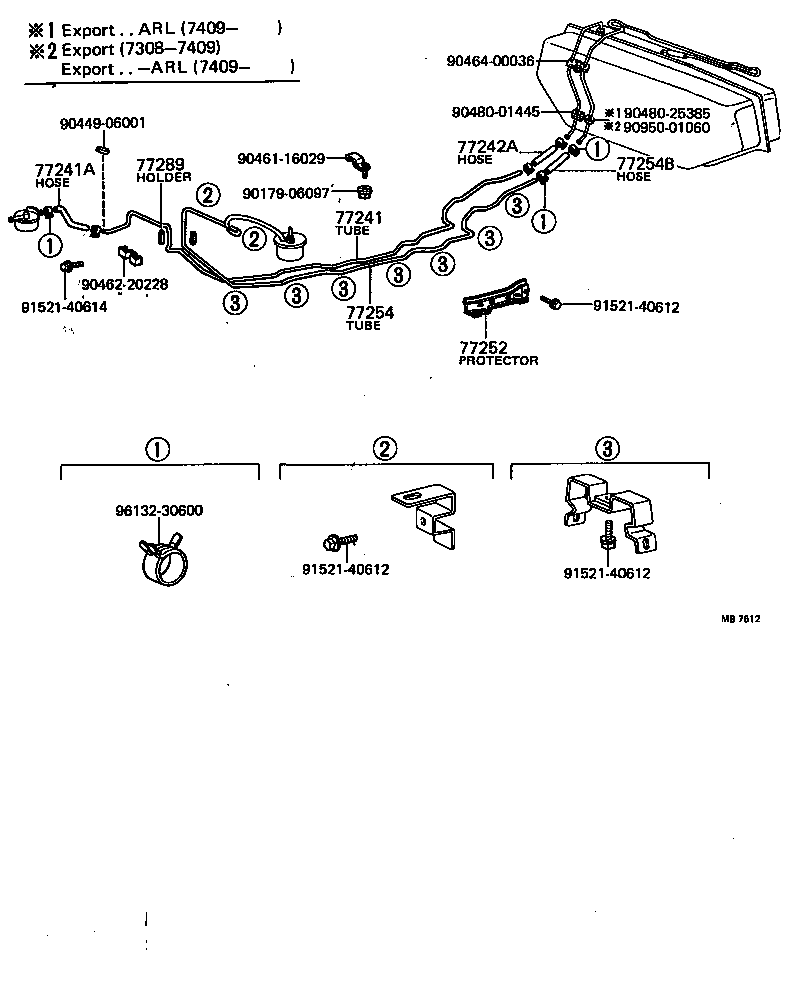

Part #	Description	Period	Qty
77241 - TUBE, FUEL MAIN, NO.1
77251-20100	RT102..LHD..DLX;RT100,110,112..LHD;RT102..LHD..STD..GEN	08/1973 - 11/1974	1
77251-20142	RT100,104,110,114..LHD	09/1975 - 01/1977	1
77251-20101	RT102..LHD..DLX;RT100,110,112..LHD;RT102..LHD..STD..GEN	11/1974 - 09/1975	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-06017	RT100,104,11#..LHD *H,L=170	01/1977 - 04/1977	1
95331-06017	RT10#,11# *H,L=170	09/1975 - 01/1977	1
95331-06017	RT10#,11# *H,L=170	08/1973 - 08/1974	1
95331-06020	RT10#,11# *H,L=200	04/1977 - 06/1977	1
95331-06017	RT100,11# *H,L=170	08/1974 - 09/1975	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95331-06010	RT10#,110,112,114 *H,L=100	08/1973 - 08/1974	1
77289 - HOLDER, FUEL TANK PIPE SETTING
77273-20010	RT10#,11#	08/1973 - 09/1975	1
Common parts
90179-06097
90449-06001
90461-16029
90462-20228
90464-00036
90480-01445
90480-25385
90950-01060
91521-40612
91521-40614
96132-30600

RT100L-KRF (1973)

(7308-7905)RT10#,110,112,114

(7308-7905)RT10#,110,112,114
