RT100L-KRF (1973)

Toyota Corona

Production Aug 1973 - Aug 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)

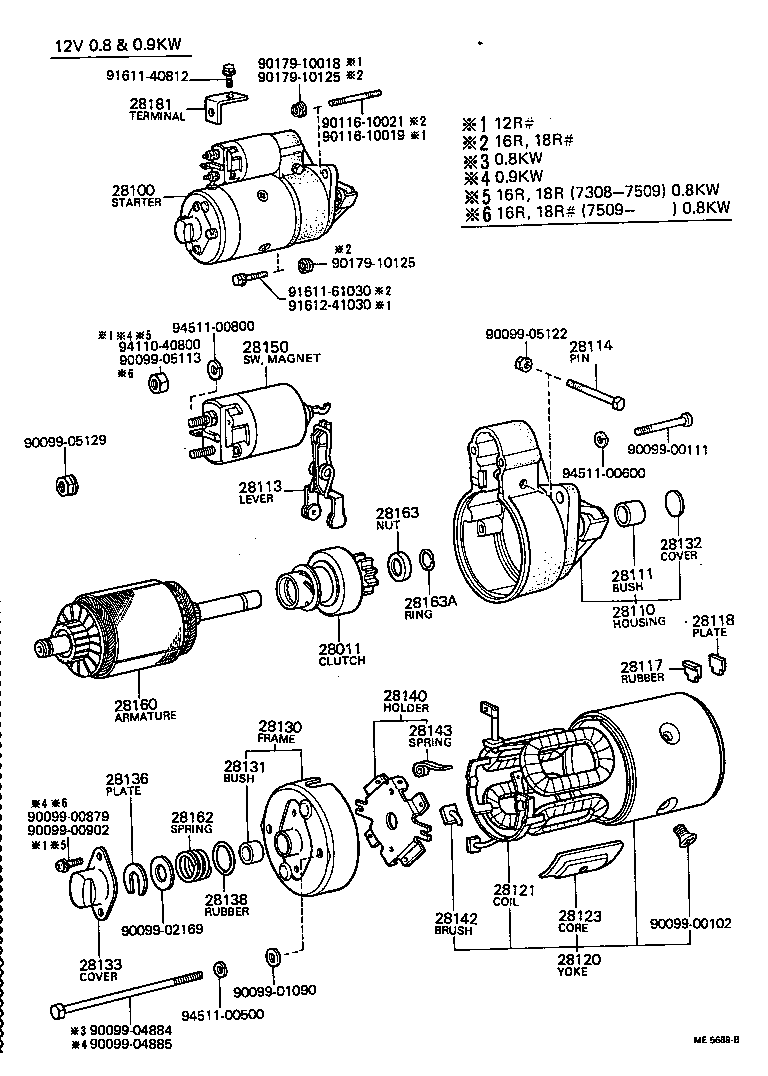

Click highlighted areas on diagram

diagram 28011 28100 28110 28111 28113 28114 28117 28118 28120 28121 28123 28130 28131 28132 28133 28136 28138 28140 28142 28143 28150 28160 28162 28163 28163A 28181 9009900102 9009900111 9009900879 9009900902 9009901090 9009902169 9009904884 9009904885 9009905113 9009905122 9009905129 9011610019 9011610021 9017910018 9017910125 9017910125 9161140812 9161161030 9161241030 9411040800 9451100500 9451100600 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-41011

12R,16R,18R..RT10#,11#

12V 0.8 & 0.9KW

 1
28011-41011

12R,18R..RT100,104,110,114,116,118

12V 0.8 & 0.9KW

 1
28011-41011

12R#..RT100,110,116

12V 0.8KW

 1
28100 - STARTER ASSY
28100-40015

12R#..RT100,116

12V 0.8KW,12V 0.8KW

 1
28100-40014

12R#..RT100,110,116

12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-40019

12R#..RT100,110,116

 1
28110-40030

12R#..RT100,116

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

12R#,16R,18R#..RT10#,11#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-41011

12R#,16R,18R#..RT10#,11#

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-41011

12R#,16R,18R#..RT10#,11#

 1
28117 - RUBBER(FOR STARTER YOKE)
28117-41012

12R,18R..RT100,104,116,118

12V 0.8 & 0.9KW

 1
28117-41012

12R,18R..RT100,104,114,116,118

12V 0.8 & 0.9KW

 1
28117-41012

12R#,16R,18R..RT10#,11#

12V 0.8KW

 1
28118 - PLATE(FOR STARTER YOKE)
28118-41012

12R,16R,18R..RT10#,11#

12V 0.8 & 0.9KW

 1
28118-41012

12R,18R..RT100,104,116,118

12V 0.8 & 0.9KW

 1
28118-41012

12R#,16R,18R..RT10#,11#

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-89101

12R,16R..RT100,112,116,117

12V 0.8KW

 1
28120-89101

12R#..RT100,110,116

12V 0.8KW

 1
28121 - COIL, STARTER FIELD
28121-40014

12R,16R..RT100,112,116,117

12V 0.8KW

 1
28121-40014

12R#..RT100,110,116

12V 0.8KW

 1
28123 - CORE, STARTER POLE
28123-40012

12R,16R..RT100,110,112,116,117

12V 0.8KW

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21011

12R,16R,18R..RT10#,11#

12V 0.8 & 0.9KW

 1
28131 - BUSH, COMMUTATOR END FRAME
90099-10039

12R#,16R,18R#..RT10#,11#

U/S 0.3

 1
90099-10040

12R#,16R,18R#..RT10#,11#

U/S 0.5

 1
28131-20010

12R#,16R,18R#..RT10#,11#

STD

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-41011

12R#,16R,18R#..RT10#,11#

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-41011

12R,16R,18R..RT10#,11#

12V 0.8 & 0.9KW

 1
28136 - PLATE, STARTER LOCK
28136-41011

12R,16R,18R..RT10#,11#

12V 0.8 & 0.9KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-41011

12R,16R,18R..RT10#,11#

12V 0.8 & 0.9KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-41013

12R#..RT100,110,116

12V 0.8KW

 1
28140-41013

12R,16R..RT100,112,116,117

12V 0.8KW

 1
28142 - BRUSH, STARTER
28142-21010

12R,16R,18R..RT10#,110,112,116,117,118..EUR,GEN,PHL

12V 0.8KW

 4
28143 - SPRING, STARTER BRUSH
28143-40010

12R#,16R,18R#..RT10#,11#

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-22011

12R#..RT100,110,116

12V 0.8KW

 1
28160 - ARMATURE ASSY, STARTER
28160-40014

12R,16R..RT100,110,112,116,117

12V 0.8KW

 1
28162 - SPRING, STARTER BRAKE
28162-41011

12R,16R,18R..RT10#,11#

12V 0.8 & 0.9KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

12R,16R..RT100,110,112,116,117

12V 0.8 & 1.0KW

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

12R#,16R,18R#..RT10#,11#

 1
28181 - TERMINAL, STARTER
28181-20010

12R#,16R,18R#..RT10#,11#

 1
Common parts
90099-00102
90099-00111
90099-00879
90099-00902
90099-01090
90099-02169
90099-04884
90099-04885
90099-05113
90099-05122
90099-05129
90116-10019
90116-10021
90179-10018
90179-10125
91611-40812
91611-61030
91612-41030
94110-40800
94511-00500
94511-00600
94511-00800
