RT100L-KDF (1973)

Toyota Corona

Production Aug 1973 - Aug 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)

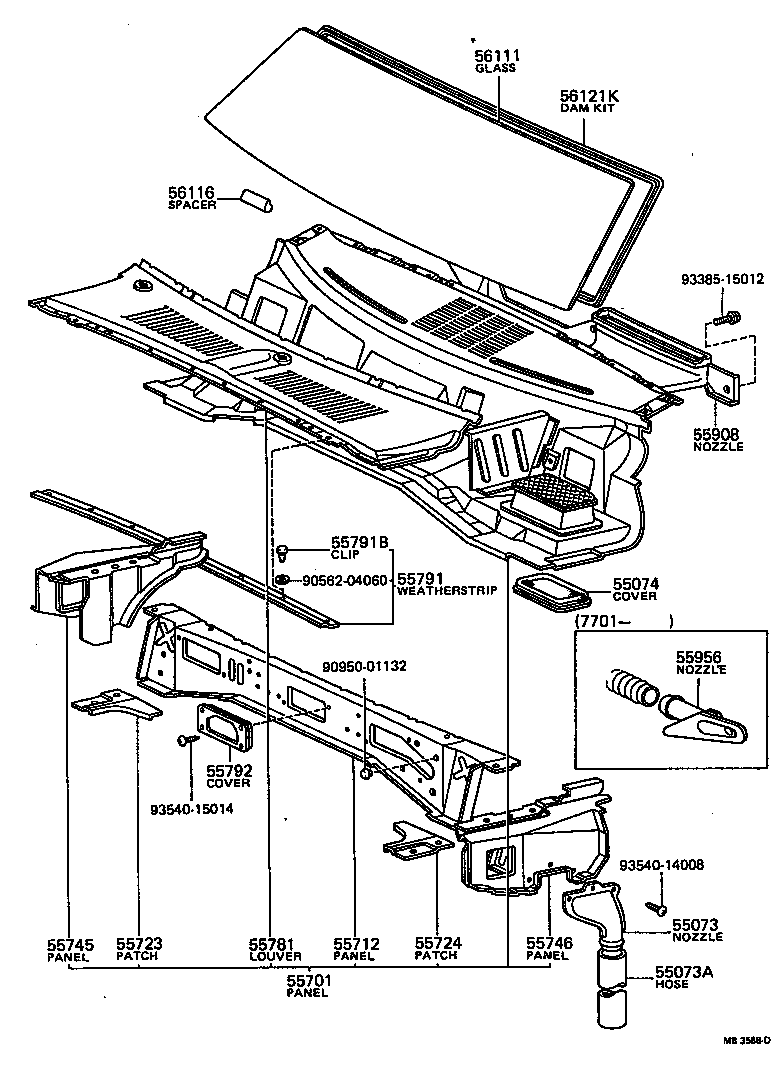

Click highlighted areas on diagram

diagram 55073 55073A 55074 55701 55712 55723 55724 55745 55746 55781 55791 55791B 55792 55908 55956 56111 56116 56121K 9056204060 9095001132 9338515012 9354014008 9354015014
Part # Description Qty Price
55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55073-20010

RT10#,11#

 2
55073A - HOSE(FOR EXTRACT NOZZLE)
90445-33003

RT10#,11#

 2
55701 - PANEL SUB-ASSY, COWL
55700-20080

RT10#,11#..LHD

 1
55712 - PANEL, COWL TOP OUTSIDE, FRONT
55712-20906

RT10#,11#..LHD

 1
55723 - PATCH, COWL TOP OUTER CORNER, RH
55723-20020

RT10#,11#

 1
55724 - PATCH, COWL TOP OUTER CORNER, LH
55724-20020

RT10#,11#

 1
55745 - PANEL, COWL TOP OUTSIDE, RH
55706-20030

RT10#,11#

 1
55706-20040

RT10#,11#

 1
55746 - PANEL, COWL TOP OUTSIDE, LH
55707-20010

RT10#,11#

 1
55707-20020

RT10#,11#

 1
55781 - LOUVER, COWL VENTILATOR
55711-20080

RT10#,11#..LHD

 1
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-20030

RT10#,11#

 1
55791B - CLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)
90467-07050

RT10#,11#

 8
55792 - COVER, WIPER MOTOR SERVICE HOLE
55071-20010

RT10#,11#

 3
55908 - NOZZLE SUB-ASSY, DEFROSTER, RH
55950-20010

RT10#,11#

 1
56111 - GLASS, WINDSHIELD
56111-20230

RT100,102..EUR,GEN

TN.LM.T=5.0

 1
56111-20210

RT100

TN.ZN.TP.T=5.0

 1
56111-20210

RT100,104..EUR,GEN,PHL,SA

TN.ZN.TP.T=5.0

 1
56111-20230

RT100,104..EUR,GEN,PHL

TN.LM.T=5.0

 1
56116 - SPACER, WINDSHIELD GLASS
56116-20030

RT10#,116,117,118

 2
56121K - DAM KIT, WINDSHIELD GLASS
04562-30010

RT10#,11#

 1
Common parts
90562-04060
90950-01132
93385-15012
93540-14008
93540-15014
