RT100L-KDF (1973)

Toyota Corona

Production Aug 1973 - Aug 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)

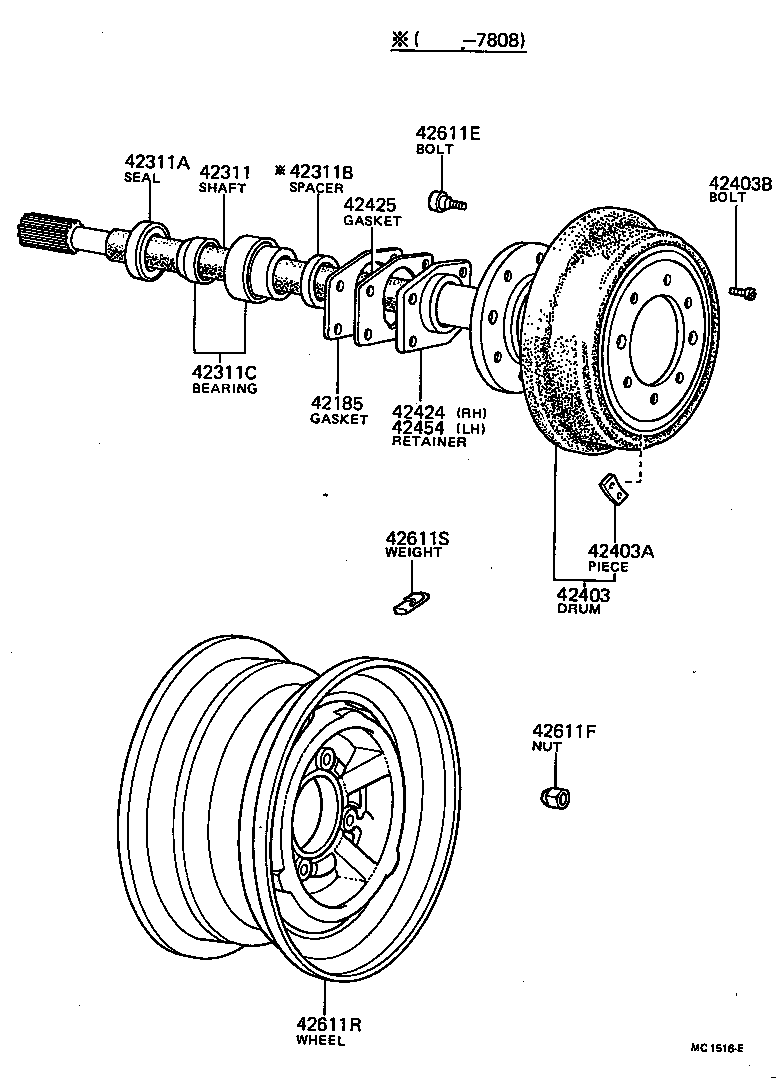

Click highlighted areas on diagram

diagram 42185 42311 42311A 42311B 42311C 42403 42403A 42403B 42424 42425 42454 42611E 42611F 42611R 42611S
Part # Description Qty Price
42185 - GASKET, REAR AXLE HOUSING END
42185-22020

RT10#,11#

 2
42311 - SHAFT, REAR AXLE
42311-20060

RT10#,110,112,114

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-52059

RT10#,11#

 2
42311B - SPACER (FOR REAR AXLE SHAFT BEARING)
90560-35153

RT10#,11#

 2
90560-35153

RT10#,110,114

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
04421-30010

RT10#,11#

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-20040

RT10#,11#

 2
42431-22050

RT10#,11#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01141

RT10#,11#

20G.

 1
90937-01143

RT10#,11#

40G.

 1
90937-01142

RT10#,11#

30G.

 1
90937-01122

RT10#,11#

60G,60G.

 1
90937-01144

RT10#,11#

50G.

 1
90937-01121

RT10#,11#

50G,50G.

 1
90937-01120

RT10#,11#

40G,40G.

 1
90937-01145

RT10#,11#

10G,60G.

 1
90937-01117

RT10#,11#

10G,10G.

 1
42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING)
90113-10007

RT10#,11#

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-21010

RT10#,11#

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-22020

RT10#,11#

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-21010

RT10#,11#

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02021

RT10#,11#

 8
42611F - NUT, HUB (FOR REAR AXLE)
90942-01007

RT100,11#

 8
42611R - WHEEL, DISC(FOR REAR)
42611-20150

RT100,102,112..GEN

4.5J-13,FOR W/TUBE

 2
42611-22080

RT100,104,114..GEN

4.5J-13,FOR TUBELESS

 2
42611-14230

RT100,104,114,116,118..GEN

4.5J-13,FOR W/TUBE

 2
42611-22080

RT100,102,112,116,117..GEN

4.5J-13,FOR TUBELESS

 2
42611-14220

RT100,104,114..GEN

4.5J-13,FOR TUBELESS

 2
42611-22090

RT10#,112,114,116,117,118..GEN

4.5J-13,FOR W/TUBE

 2
42601-21022

RT116;RT100..GEN;RT100..STD..PHL

4J-13,6PRY

 2
42611-22121

RT100,104,114,116,118..GEN

4,5J-13

 2
42611-20050

RT100..GEN

4J-13,FOR W/TUBE

 2
42611-21050

RT116;RT100..GEN;RT100..STD..PHL

4J-13,6PRY

 2
42611-20060

RT100..GEN;RT100,110..DLX..PHL

4J-13,FOR 5.60-13-4

 2
42611-20060

RT100..GEN;RT100,110..DLX..PHL

4J-13,FOR 4PR. TUBELESS,WSW.

 2
42611-20150

RT100,102,112,116,117..GEN

4.5J-13,FOR W/TUBE

 2
42611-21050

RT100,116

4J-13,FOR 5.60-13-6

 2
42611S - WEIGHT, BALANCE(FOR REAR DISC WHEEL)
90942-03022

RT10#,11#

40G.

 1
90942-03017

RT10#,11#

20G.

 1
90942-03020

RT10#,11#

30G.

 1
90942-03025

RT10#,11#

50G.

 1
90942-03027

RT10#,11#

60G.

 1
90942-03029

RT10#,11#

70G.

 1
90942-03041

RT10#,11#

10G.

 1
90942-03031

RT10#,11#

80G.

 1
