RT100-YRF (1973)
Toyota Corona

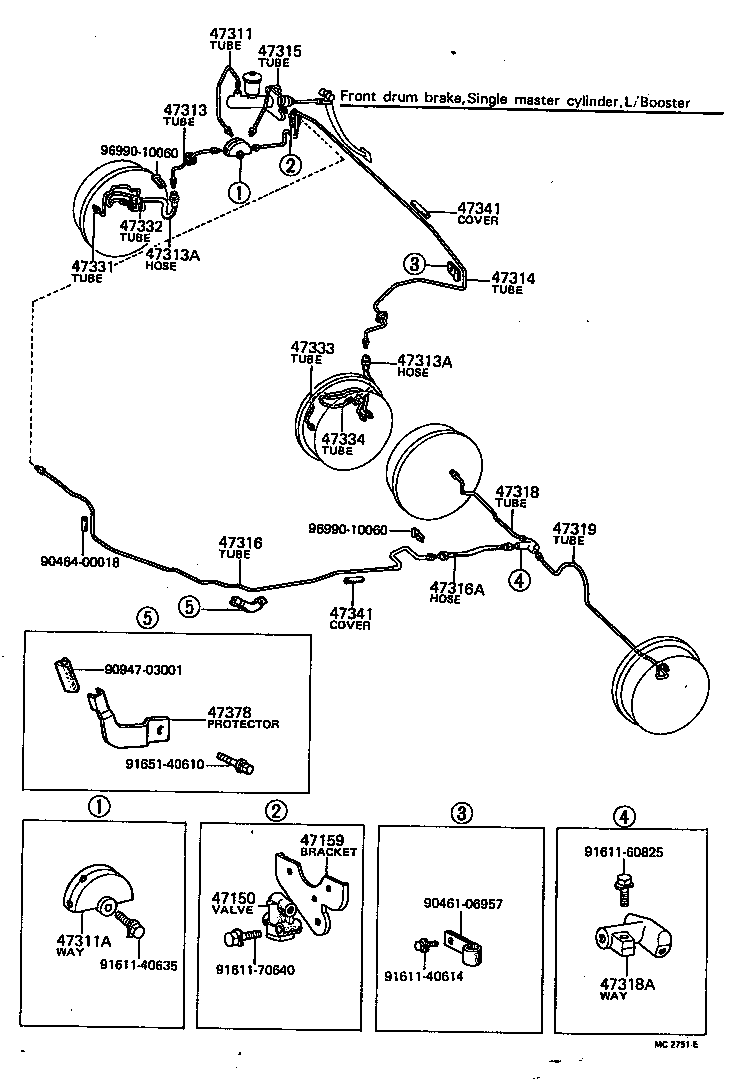

(7308-7808)RT100,116..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-14010 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-20040 |
RT100..RHD DRUM TANDEM |
1 | ||
| 47159-20050 |
RT104..RHD..(3FC,5F);RT100,102,114,116,118..RHD;RT104..RHD..4F..(EUR,GEN,SA) FOR 13IN.DISC |
1 | ||
| 47159-20030 |
RT100,116..RHD L/BOOSTER |
1 | ||
| 47159-20050 |
RT10#,112,114,116,117,118..RHD FOR 13IN.DISC |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20250 |
RT10#,112,114,116,117,118..RHD TANDEM |
1 | ||
| 47311-20270 |
RT100,116..RHD DRUM SINGLE MASTER |
1 | ||
| 47311-20250 |
RT10#,114,116,118..RHD TANDEM |
1 | ||
| 47311-20271 |
RT100,116..RHD DRUM SINGLE MASTER |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90414-10036 |
RT100,116..GEN |
1 | ||
| 90413-10069 |
RT10#,112,114,116,117,118..RHD TANDEM |
1 | ||
| 90414-10036 |
RT116;RT100..GEN;RT100..DLX..PHL |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20060 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02235 |
RT100..GEN;RT102,104,11#;RT100..DLX..PHL FOR DISC |
2 | ||
| 90947-02209 |
RT100,116 FOR DRUM |
2 | ||
| 90947-02210 |
RT10#,11# L=355 |
2 | ||
| 90947-02209 |
RT100,116..GEN FOR DRUM |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02235 |
RT100..GEN;RT102,104,11#;RT100..DLX..PHL FOR DISC |
2 | ||
| 90947-02209 |
RT100,116 FOR DRUM |
2 | ||
| 90947-02210 |
RT10#,11# L=355 |
2 | ||
| 90947-02209 |
RT100,116..GEN FOR DRUM |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20070 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20180 |
RT100,116..RHD DRUM SINGLE MASTER |
1 | ||
| 47315-20160 |
RT10#,112,114,116,117,118..RHD TANDEM |
1 | ||
| 47315-20160 |
RT104..4F..ARL;RT104..RHD..(EUR,GEN,SA);RT100,102,114,116,118..RHD TANDEM |
1 | ||
| 47315-20181 |
RT100,116..RHD DRUM SINGLE MASTER |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-20200 |
RT102..RHD..DLX;RT100,104,112,114..RHD;RT102..RHD..STD..(GEN,SA) DISC,TANDEM |
1 | ||
| 47316-20220 |
RT100..RHD DRUM SINGLE MASTER |
1 | ||
| 47316-20280 |
RT10#,114..RHD |
1 | ||
| 47316-20280 |
RT100,102,114..RHD;RT104..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA) |
1 | ||
| 47316-20300 |
RT100..RHD DRUM SINGLE MASTER |
1 | ||
| 47316-20301 |
RT100..RHD DRUM SINGLE MASTER |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02214 |
RT10#,112,114 L=390 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-20070 |
RT10#,110,112,114..ARL,GEN,PHL,SA |
1 | ||
| 47318A - WAY(FOR REAR RH BRAKE TUBE) | ||||
| 90413-10103 |
RT10#,110,112,114 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-20070 |
RT10#,110,112,114..ARL,GEN,PHL,SA |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-20050 |
RT100..GEN TAXI SPEC. |
1 | ||
| 47331-20050 |
RT100 TAXI SPEC. |
1 | ||
| 47331-20040 |
RT100,116..GEN |
1 | ||
| 47331-20050 |
RT100..GEN;RT100..STD..PHL TAXI SPEC. |
1 | ||
| 47331-20040 |
RT116;RT100..GEN;RT100..DLX..PHL |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-20050 |
RT116;RT100..GEN;RT100..DLX..PHL |
1 | ||
| 47332-20060 |
RT100 TAXI SPEC. |
1 | ||
| 47332-20060 |
RT100..GEN;RT100..STD..PHL TAXI SPEC. |
1 | ||
| 47332-20060 |
RT100..GEN TAXI SPEC. |
1 | ||
| 47332-20050 |
RT100,116..GEN |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-20050 |
RT100 TAXI SPEC. |
1 | ||
| 47333-20050 |
RT100..GEN;RT100..STD..PHL TAXI SPEC. |
1 | ||
| 47333-20040 |
RT116;RT100..GEN;RT100..DLX..PHL |
1 | ||
| 47333-20040 |
RT100,116..GEN |
1 | ||
| 47333-20050 |
RT100..GEN TAXI SPEC. |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-20050 |
RT116;RT100..GEN;RT100..DLX..PHL |
1 | ||
| 47334-20060 |
RT100 TAXI SPEC. |
1 | ||
| 47334-20060 |
RT100..GEN;RT100..STD..PHL TAXI SPEC. |
1 | ||
| 47334-20060 |
RT100..GEN TAXI SPEC. |
1 | ||
| 47334-20050 |
RT100,116..GEN |
1 | ||
| 47341 - COVER, TUBE | ||||
| 47341-20010 |
RT10#,11# |
4 | ||
| 47341 - COVER, TUBE | ||||
| 47341-20010 |
RT10#,11# |
4 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47377-20010 |
RT10#,110,114 |
1 | ||
| Common parts | ||||
| 90461-06957 | ||||
| 90464-00018 | ||||
| 90947-03001 | ||||
| 91611-40614 | ||||
| 91611-40635 | ||||
| 91611-60825 | ||||
| 91611-70640 | ||||
| 91651-40610 | ||||
| 96990-10060 | ||||
(7308-7605)RT10#,117,118 ; (7605-7905)RT102,104,118..ARL,EUR,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-14010 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-20040 |
RT100..RHD DRUM TANDEM |
1 | ||
| 47159-20050 |
RT104..RHD..(3FC,5F);RT100,102,114,116,118..RHD;RT104..RHD..4F..(EUR,GEN,SA) FOR 13IN.DISC |
1 | ||
| 47159-20030 |
RT100,116..RHD L/BOOSTER |
1 | ||
| 47159-20050 |
RT10#,112,114,116,117,118..RHD FOR 13IN.DISC |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20250 |
RT10#,112,114,116,117,118..RHD TANDEM |
1 | ||
| 47311-20270 |
RT100,116..RHD DRUM SINGLE MASTER |
1 | ||
| 47311-20250 |
RT10#,114,116,118..RHD TANDEM |
1 | ||
| 47311-20271 |
RT100,116..RHD DRUM SINGLE MASTER |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90414-10036 |
RT100,116..GEN |
1 | ||
| 90413-10069 |
RT10#,112,114,116,117,118..RHD TANDEM |
1 | ||
| 90414-10036 |
RT116;RT100..GEN;RT100..DLX..PHL |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20060 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02235 |
RT100..GEN;RT102,104,11#;RT100..DLX..PHL FOR DISC |
2 | ||
| 90947-02209 |
RT100,116 FOR DRUM |
2 | ||
| 90947-02210 |
RT10#,11# L=355 |
2 | ||
| 90947-02209 |
RT100,116..GEN FOR DRUM |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02235 |
RT100..GEN;RT102,104,11#;RT100..DLX..PHL FOR DISC |
2 | ||
| 90947-02209 |
RT100,116 FOR DRUM |
2 | ||
| 90947-02210 |
RT10#,11# L=355 |
2 | ||
| 90947-02209 |
RT100,116..GEN FOR DRUM |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20070 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20180 |
RT100,116..RHD DRUM SINGLE MASTER |
1 | ||
| 47315-20160 |
RT10#,112,114,116,117,118..RHD TANDEM |
1 | ||
| 47315-20160 |
RT104..4F..ARL;RT104..RHD..(EUR,GEN,SA);RT100,102,114,116,118..RHD TANDEM |
1 | ||
| 47315-20181 |
RT100,116..RHD DRUM SINGLE MASTER |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-20200 |
RT102..RHD..DLX;RT100,104,112,114..RHD;RT102..RHD..STD..(GEN,SA) DISC,TANDEM |
1 | ||
| 47316-20220 |
RT100..RHD DRUM SINGLE MASTER |
1 | ||
| 47316-20280 |
RT10#,114..RHD |
1 | ||
| 47316-20280 |
RT100,102,114..RHD;RT104..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA) |
1 | ||
| 47316-20300 |
RT100..RHD DRUM SINGLE MASTER |
1 | ||
| 47316-20301 |
RT100..RHD DRUM SINGLE MASTER |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02214 |
RT10#,112,114 L=390 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-20070 |
RT10#,110,112,114..ARL,GEN,PHL,SA |
1 | ||
| 47318A - WAY(FOR REAR RH BRAKE TUBE) | ||||
| 90413-10103 |
RT10#,110,112,114 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-20070 |
RT10#,110,112,114..ARL,GEN,PHL,SA |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-20050 |
RT100..GEN TAXI SPEC. |
1 | ||
| 47331-20050 |
RT100 TAXI SPEC. |
1 | ||
| 47331-20040 |
RT100,116..GEN |
1 | ||
| 47331-20050 |
RT100..GEN;RT100..STD..PHL TAXI SPEC. |
1 | ||
| 47331-20040 |
RT116;RT100..GEN;RT100..DLX..PHL |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-20050 |
RT116;RT100..GEN;RT100..DLX..PHL |
1 | ||
| 47332-20060 |
RT100 TAXI SPEC. |
1 | ||
| 47332-20060 |
RT100..GEN;RT100..STD..PHL TAXI SPEC. |
1 | ||
| 47332-20060 |
RT100..GEN TAXI SPEC. |
1 | ||
| 47332-20050 |
RT100,116..GEN |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-20050 |
RT100 TAXI SPEC. |
1 | ||
| 47333-20050 |
RT100..GEN;RT100..STD..PHL TAXI SPEC. |
1 | ||
| 47333-20040 |
RT116;RT100..GEN;RT100..DLX..PHL |
1 | ||
| 47333-20040 |
RT100,116..GEN |
1 | ||
| 47333-20050 |
RT100..GEN TAXI SPEC. |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-20050 |
RT116;RT100..GEN;RT100..DLX..PHL |
1 | ||
| 47334-20060 |
RT100 TAXI SPEC. |
1 | ||
| 47334-20060 |
RT100..GEN;RT100..STD..PHL TAXI SPEC. |
1 | ||
| 47334-20060 |
RT100..GEN TAXI SPEC. |
1 | ||
| 47334-20050 |
RT100,116..GEN |
1 | ||
| 47341 - COVER, TUBE | ||||
| 47341-20010 |
RT10#,11# |
4 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47377-20010 |
RT10#,110,114 |
1 | ||
| Common parts | ||||
| 90119-06128 | ||||
| 90461-06957 | ||||
| 90464-00018 | ||||
| 90947-03001 | ||||
| 91611-40614 | ||||
| 91611-40635 | ||||
| 91611-40840 | ||||
| 91611-60825 | ||||
| 91651-40610 | ||||
| 96990-10060 | ||||
(7308-7610)RHD ; (7610-7905)RT10#,114,116,118
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-14010 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-20040 |
RT100..RHD DRUM TANDEM |
1 | ||
| 47159-20050 |
RT104..RHD..(3FC,5F);RT100,102,114,116,118..RHD;RT104..RHD..4F..(EUR,GEN,SA) FOR 13IN.DISC |
1 | ||
| 47159-20030 |
RT100,116..RHD L/BOOSTER |
1 | ||
| 47159-20050 |
RT10#,112,114,116,117,118..RHD FOR 13IN.DISC |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20250 |
RT10#,112,114,116,117,118..RHD TANDEM |
1 | ||
| 47311-20270 |
RT100,116..RHD DRUM SINGLE MASTER |
1 | ||
| 47311-20250 |
RT10#,114,116,118..RHD TANDEM |
1 | ||
| 47311-20271 |
RT100,116..RHD DRUM SINGLE MASTER |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90414-10036 |
RT100,116..GEN |
1 | ||
| 90413-10069 |
RT10#,112,114,116,117,118..RHD TANDEM |
1 | ||
| 90414-10036 |
RT116;RT100..GEN;RT100..DLX..PHL |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20060 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02235 |
RT100..GEN;RT102,104,11#;RT100..DLX..PHL FOR DISC |
2 | ||
| 90947-02209 |
RT100,116 FOR DRUM |
2 | ||
| 90947-02210 |
RT10#,11# L=355 |
2 | ||
| 90947-02209 |
RT100,116..GEN FOR DRUM |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02235 |
RT100..GEN;RT102,104,11#;RT100..DLX..PHL FOR DISC |
2 | ||
| 90947-02209 |
RT100,116 FOR DRUM |
2 | ||
| 90947-02210 |
RT10#,11# L=355 |
2 | ||
| 90947-02209 |
RT100,116..GEN FOR DRUM |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20070 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20180 |
RT100,116..RHD DRUM SINGLE MASTER |
1 | ||
| 47315-20160 |
RT10#,112,114,116,117,118..RHD TANDEM |
1 | ||
| 47315-20160 |
RT104..4F..ARL;RT104..RHD..(EUR,GEN,SA);RT100,102,114,116,118..RHD TANDEM |
1 | ||
| 47315-20181 |
RT100,116..RHD DRUM SINGLE MASTER |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-20200 |
RT102..RHD..DLX;RT100,104,112,114..RHD;RT102..RHD..STD..(GEN,SA) DISC,TANDEM |
1 | ||
| 47316-20220 |
RT100..RHD DRUM SINGLE MASTER |
1 | ||
| 47316-20280 |
RT10#,114..RHD |
1 | ||
| 47316-20280 |
RT100,102,114..RHD;RT104..RHD..(3FC,5F);RT104..RHD..4F..(EUR,GEN,SA) |
1 | ||
| 47316-20300 |
RT100..RHD DRUM SINGLE MASTER |
1 | ||
| 47316-20301 |
RT100..RHD DRUM SINGLE MASTER |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02214 |
RT10#,112,114 L=390 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-20070 |
RT10#,110,112,114..ARL,GEN,PHL,SA |
1 | ||
| 47318A - WAY(FOR REAR RH BRAKE TUBE) | ||||
| 90413-10103 |
RT10#,110,112,114 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-20070 |
RT10#,110,112,114..ARL,GEN,PHL,SA |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-20050 |
RT116;RT100..GEN;RT100..DLX..PHL |
1 | ||
| 47332-20060 |
RT100 TAXI SPEC. |
1 | ||
| 47332-20060 |
RT100..GEN;RT100..STD..PHL TAXI SPEC. |
1 | ||
| 47332-20060 |
RT100..GEN TAXI SPEC. |
1 | ||
| 47332-20050 |
RT100,116..GEN |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-20050 |
RT116;RT100..GEN;RT100..DLX..PHL |
1 | ||
| 47334-20060 |
RT100 TAXI SPEC. |
1 | ||
| 47334-20060 |
RT100..GEN;RT100..STD..PHL TAXI SPEC. |
1 | ||
| 47334-20060 |
RT100..GEN TAXI SPEC. |
1 | ||
| 47334-20050 |
RT100,116..GEN |
1 | ||
| 47341 - COVER, TUBE | ||||
| 47341-20010 |
RT10#,11# |
4 | ||
| 47341 - COVER, TUBE | ||||
| 47341-20010 |
RT10#,11# |
4 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47377-20010 |
RT10#,110,114 |
1 | ||
| Common parts | ||||
| 90119-06128 | ||||
| 90461-06957 | ||||
| 90464-00018 | ||||
| 90947-03001 | ||||
| 91611-40614 | ||||
| 91611-40635 | ||||
| 91611-40840 | ||||
| 91611-60825 | ||||
| 91651-40610 | ||||
| 96990-10060 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
