Toyota Corona RT100 EXTENSION HOUSING (MTM)

RT100-YDF (1973)

Toyota Corona

Production Aug 1973 - Aug 1978

Engine 12R

Transmission 3H MTM

Displacement 2500cc

Power 168 HP (125 kW)

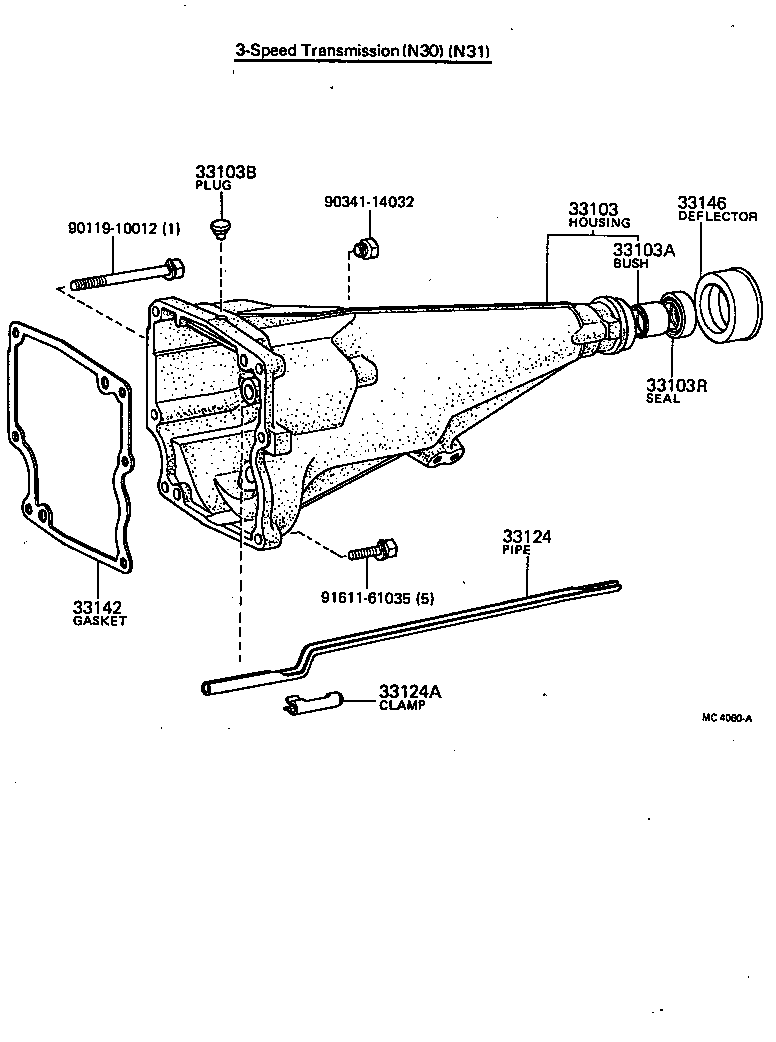

Click highlighted areas on diagram

Part #	Description	Period	Qty
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-30150	RT100,116..3H	09/1975 - 08/1978	1
33103-30120	RT100,116..3H	08/1973 - 09/1975	1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-73077	RT100,116..3H	09/1975 - 08/1978	1
90999-72012	RT10#,11#..3H,4F	08/1973 - 10/1974	1
90999-72023	RT10#,11#..3H,4F	10/1974 - 09/1975	1
33103B - PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)
90930-03001	RT100,116..3H	08/1973 - 08/1978	1
33103C - PLUG, NO.1(FOR EXTENSION HOUSING)
90341-18002	RT100,116..3H	08/1973 - 09/1975	1
33103F - GASKET(FOR EXTENSION HOUSING PLUG NO.1)
12157-10010	RT100,116..3H	08/1973 - 09/1975	1
33103K - SEAL KIT, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING
04332-30010	RT10#,11#..MTM	08/1973 - 05/1979	1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-30030	RT100,116..3H	08/1973 - 09/1975	1
33142-30040	RT100,116..3H	09/1975 - 08/1978	1
33145 - RETAINER, EXTENSION HOUSING DUST SEAL(MTM)
33145-30010	RT10#,11#..MTM	08/1973 - 05/1979	1
33145A - SEAL, DUST(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90303-38010	RT10#,11#..MTM	08/1973 - 05/1979	1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010	RT10#,11#..MTM	08/1973 - 05/1979	1
Common parts
91611-61032

Click highlighted areas on diagram

Part #	Description	Period	Qty
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-30150	RT100,116..3H	09/1975 - 08/1978	1
33103-30120	RT100,116..3H	08/1973 - 09/1975	1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-73077	RT100,116..3H	09/1975 - 08/1978	1
90999-72012	RT10#,11#..3H,4F	08/1973 - 10/1974	1
90999-72023	RT10#,11#..3H,4F	10/1974 - 09/1975	1
33103B - PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)
90930-03001	RT100,116..3H	08/1973 - 08/1978	1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38043	RT100,116..3H	09/1975 - 01/1977	1
90311-38140	RT100,116..3H	01/1977 - 08/1978	1
33124 - PIPE, OIL RECEIVER(MTM)
33124-30040	RT100,116..RHD..3H	09/1975 - 08/1978	1
33124A - CLAMP(FOR TRANSMISSION OIL RECEIVER PIPE)
90463-08036	RT100,116..RHD..3H	09/1975 - 08/1978	1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-30030	RT100,116..3H	08/1973 - 09/1975	1
33142-30040	RT100,116..3H	09/1975 - 08/1978	1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010	RT10#,11#..MTM	08/1973 - 05/1979	1
Common parts
90119-10012
90341-14032
91611-61035
