RT100-YDF (1973)
Toyota Corona
Production
Aug 1973
-
Aug 1978
Engine
12R
Transmission
3H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7509)3H

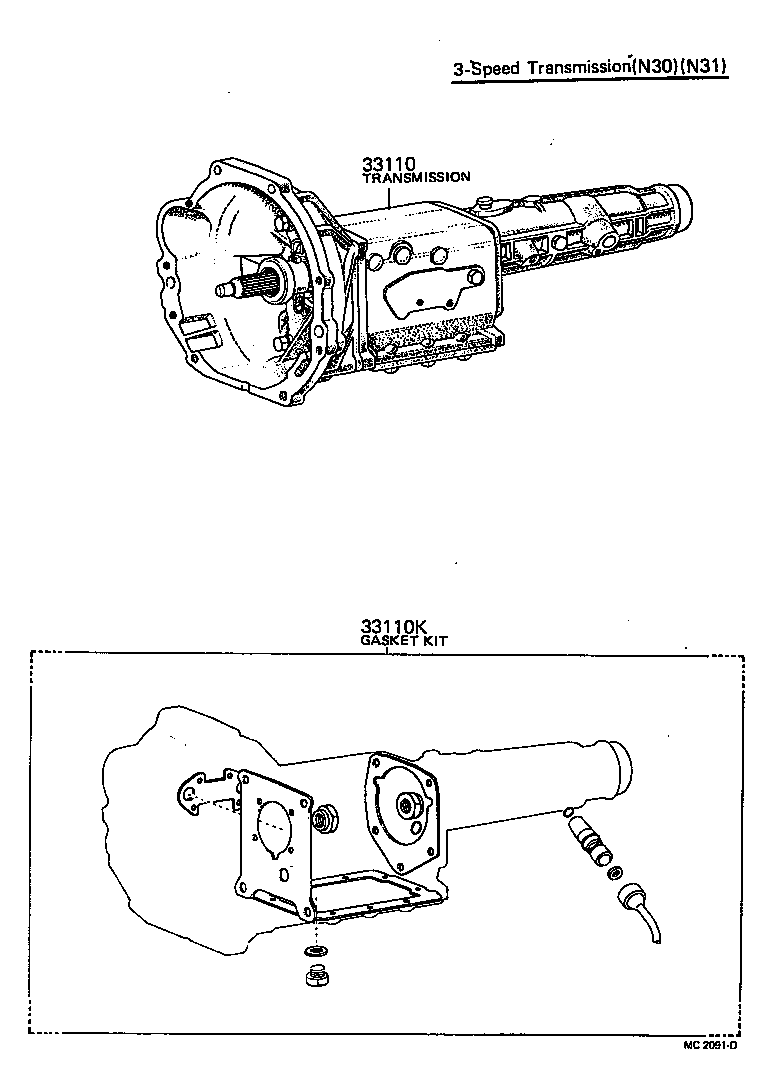

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33110 - TRANSMISSION ASSY, MANUAL | ||||
| 33120-20010 |
RT100..RHD..3H SMG.R=21:6 |
1 | ||
| 33030-20260 |
RT100..RHD..3H SMG.R=21:6 |
1 | ||
| 33110K - GASKET KIT, MANUAL TRANSMISSION OVERHAUL | ||||
| 04331-20020 |
RT100,116..3H |
1 | ||
| 04331-30060 |
RT100,116..3H |
1 | ||
(7509-7808)3H

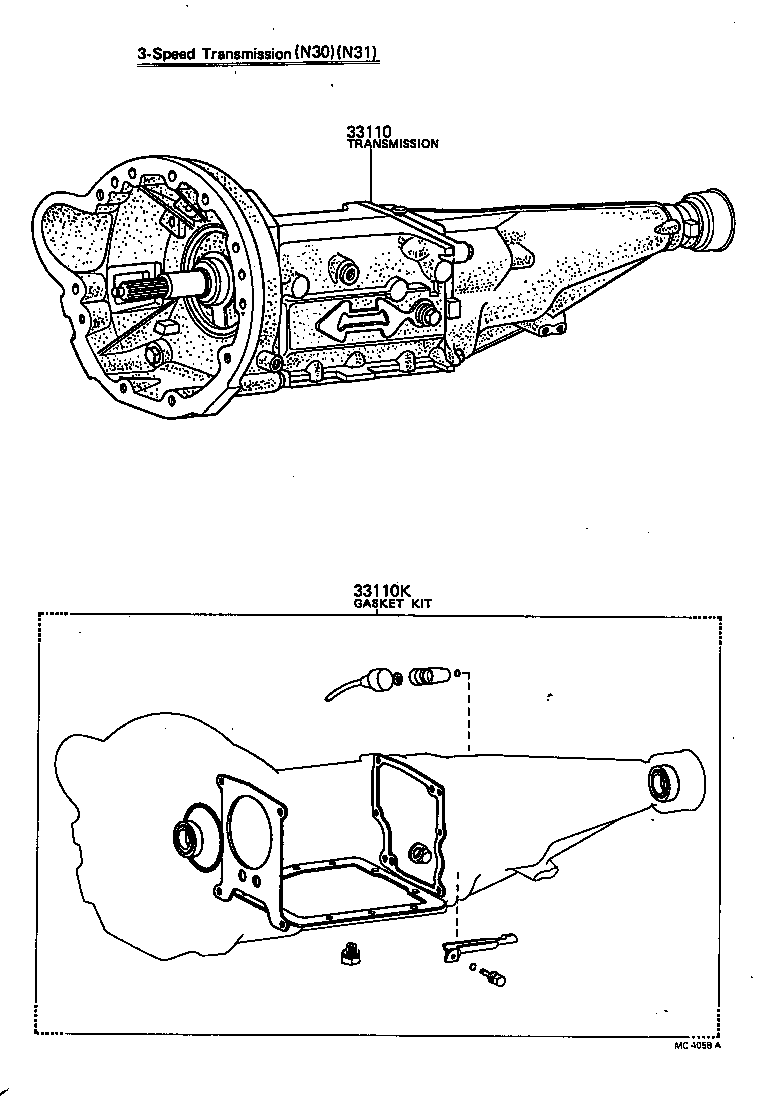

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33110 - TRANSMISSION ASSY, MANUAL | ||||
| 33120-20010 |
RT100..RHD..3H SMG.R=21:6 |
1 | ||
| 33030-20260 |
RT100..RHD..3H SMG.R=21:6 |
1 | ||
| 33110K - GASKET KIT, MANUAL TRANSMISSION OVERHAUL | ||||
| 04331-20020 |
RT100,116..3H |
1 | ||
| 04331-30060 |
RT100,116..3H |
1 | ||
