RT100-KDF (1973)

Toyota Corona

Production Aug 1973 - Aug 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT10#,110,112,114

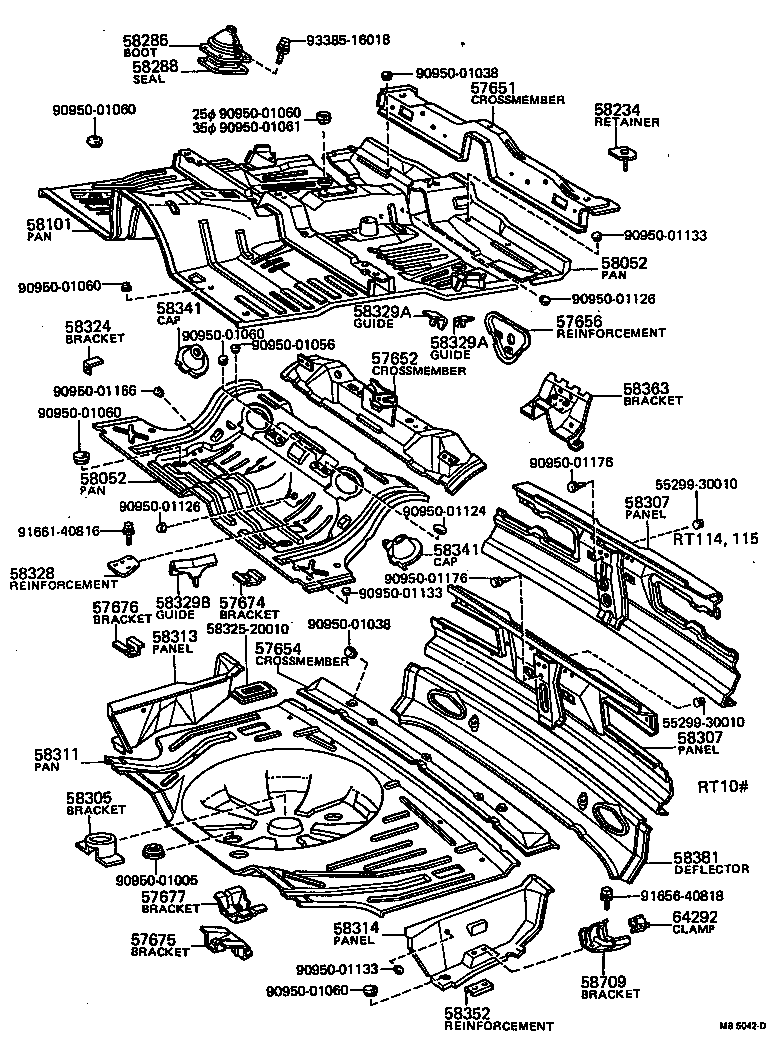

Click highlighted areas on diagram

diagram 5529930010 5529930010 57651 57652 57654 57656 57674 57675 57676 57677 58052 58052 58101 58234 58286 58288 58305 58307 58307 58311 58313 58314 58324 5832520010 58328 58329A 58329A 58329B 58341 58341 58352 58363 58381 58709 64292 9095001005 9095001038 9095001038 9095001056 9095001060 9095001060 9095001060 9095001060 9095001060 9095001060 9095001061 9095001124 9095001126 9095001126 9095001133 9095001133 9095001133 9095001166 9095001176 9095001176 9165640818 9166140816 9338516018
Part # Description Qty Price
57651 - CROSSMEMBER, REAR FLOOR, FRONT
57651-20040

RT10#,110,112,114

 1
57652 - CROSSMEMBER, REAR FLOOR, NO.2
58302-20080

RT10#,110,112,114

 1
57654 - MEMBER, REAR FLOOR CROSS, NO.4
57654-20040

RT10#,110,112,114

 1
57656 - REINFORCEMENT, EXHAUST PIPE HANGER SUPPORT
57658-20020

RT10#,110,112,114

 1
57674 - BRACKET, MUFFLER HANGER SUPPORT, NO.3
57673-20020

RT10#,110,112,114

 1
57675 - BRACKET, MUFFLER HANGER SUPPORT, NO.1
57675-20020

RT10#,110,112,114

 1
57676 - BRACKET, MUFFLER HANGER SUPPORT, NO.2
57676-20020

RT10#,110,112,114

 1
58052 - PAN SUB-ASSY, CENTER FLOOR
58211-20130

RT10#,110,112,114

FRONT

 1
58212-20050

RT10#,110,112,114

REAR

 1
58052 - PAN SUB-ASSY, CENTER FLOOR
58211-20130

RT10#,110,112,114

FRONT

 1
58212-20050

RT10#,110,112,114

REAR

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58280-20040

RT100..RHD..4F..DLX;RT10#,116,117,118..4F..STD

FOR L/CONSOLE

 1
58288 - SEAL, SHIFT LEVER BOOT
58288-22020

RT10#,11#..4F,5F

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

RT10#,110,112,114

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-20190

RT10#

 1
58307-20191

RT10#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-20190

RT10#

 1
58307-20191

RT10#

 1
58311 - PAN, REAR FLOOR
58311-20090

RT10#,110,112,114

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-20030

RT10#,110,112,114

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-20030

RT10#,110,112,114

 1
58324 - BRACKET, FLEXIBLE HOSE
58326-20020

RT10#,110,112,114

 1
58329A - GUIDE, WIRE, NO.2
58279-20020

RT10#,110,112,114

RH.

 1
58264-20040

RT10#,110,112,114

LH.

 1
58329A - GUIDE, WIRE, NO.2
58279-20020

RT10#,110,112,114

RH.

 1
58264-20040

RT10#,110,112,114

LH.

 1
58329B - GUIDE, WIRE, NO.3
58023-20010

RT10#,110,112,114

RH.

 1
58024-20030

RT10#,110,114

LH.

 1
58341 - CAP, REAR SHOCK ABSORBER
58341-20030

RT10#,110,112,114

RH.

 1
58342-20030

RT10#,110,112,114

LH.

 1
58341 - CAP, REAR SHOCK ABSORBER
58341-20030

RT10#,110,112,114

RH.

 1
58342-20030

RT10#,110,112,114

LH.

 1
58352 - REINFORCEMENT, JACK CLAMP
58352-20030

RT10#,110,112,114

 1
58363 - BRACKET SUB-ASSY, DIFF CARRIER BUMPER
58304-20041

RT10#,110,112,114

 1
58304-20040

RT10#,110,112,114

 1
58381 - DEFLECTOR, REAR BUMPER STONE
58381-20020

RT10#,110,112,114

 1
58709 - BRACKET SUB-ASSY, JACK CLAMP
58794-20030

RT10#,110,112,114

 1
64292 - CLAMP, JACK HANDLE
64292-12010

RT10#,110,112,114

 2
Common parts
55299-30010
58325-20010
90950-01005
90950-01038
90950-01056
90950-01060
90950-01061
90950-01124
90950-01126
90950-01133
90950-01166
90950-01176
91656-40818
91661-40816
93385-16018
