RT100-KDF (1973)

Toyota Corona

Production Aug 1973 - Aug 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7809)MTM

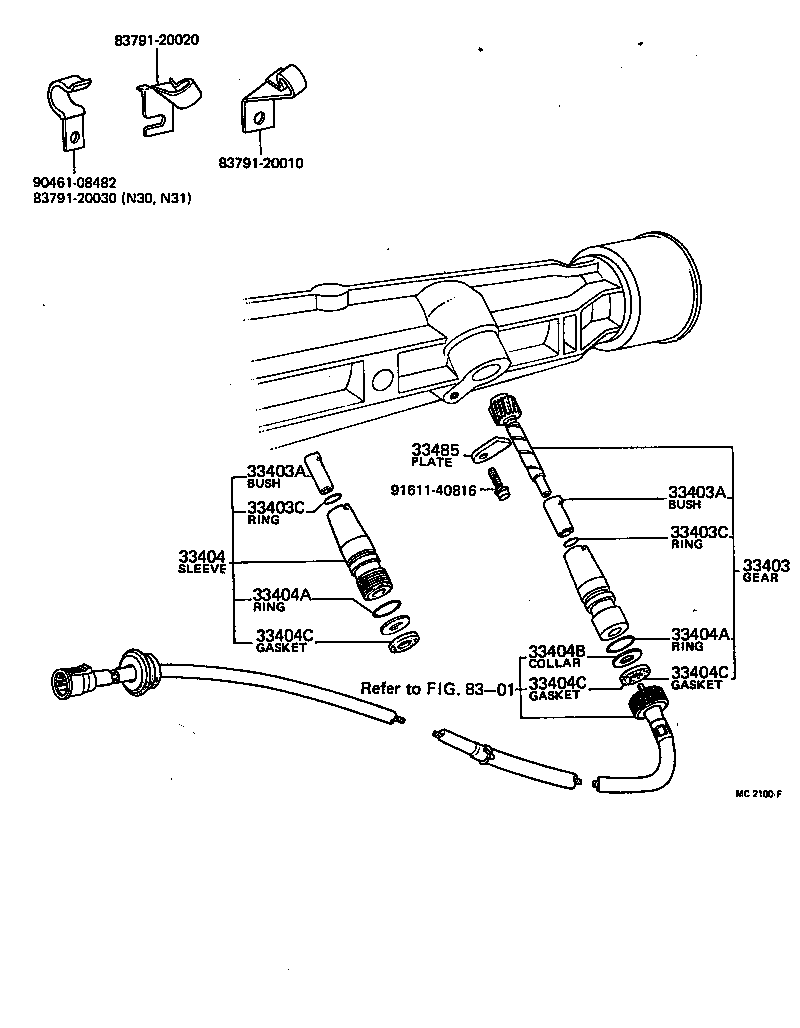

Click highlighted areas on diagram

diagram 33403 33403A 33403A 33403C 33403C 33404 33404A 33404A 33404B 33404C 33404C 33404C 33485 8301 8379120010 8379120020 8379120030 9046108482 9161140816
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-69026

RT100,110..4F

N=19

 1
33482-39015

RT100

N=21

 1
33403-69026

RT100..4F..GEN;RT100..DLX..PHL

N=19

 1
33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)
90386-09078

RT10#,11#..MTM

 1
33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)
90386-09078

RT10#,11#..MTM

 1
33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)
90301-09010

RT10#,11#..MTM

 1
33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)
90301-09010

RT10#,11#..MTM

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-39016

RT10#,11#..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

RT10#,11#..MTM

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

RT10#,11#..MTM

 1
33404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)
90201-07069

RT10#,11#..MTM

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

RT10#,11#..MTM

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

RT10#,11#..MTM

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

RT10#,11#..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30010

RT10#,11#..MTM

 1
Common parts
83791-20010
83791-20020
83791-20030
90461-08482
91611-40816
Linked diagrams
8301
