ST151R-TEMNE (1985)
Toyota Corona/Carina 2

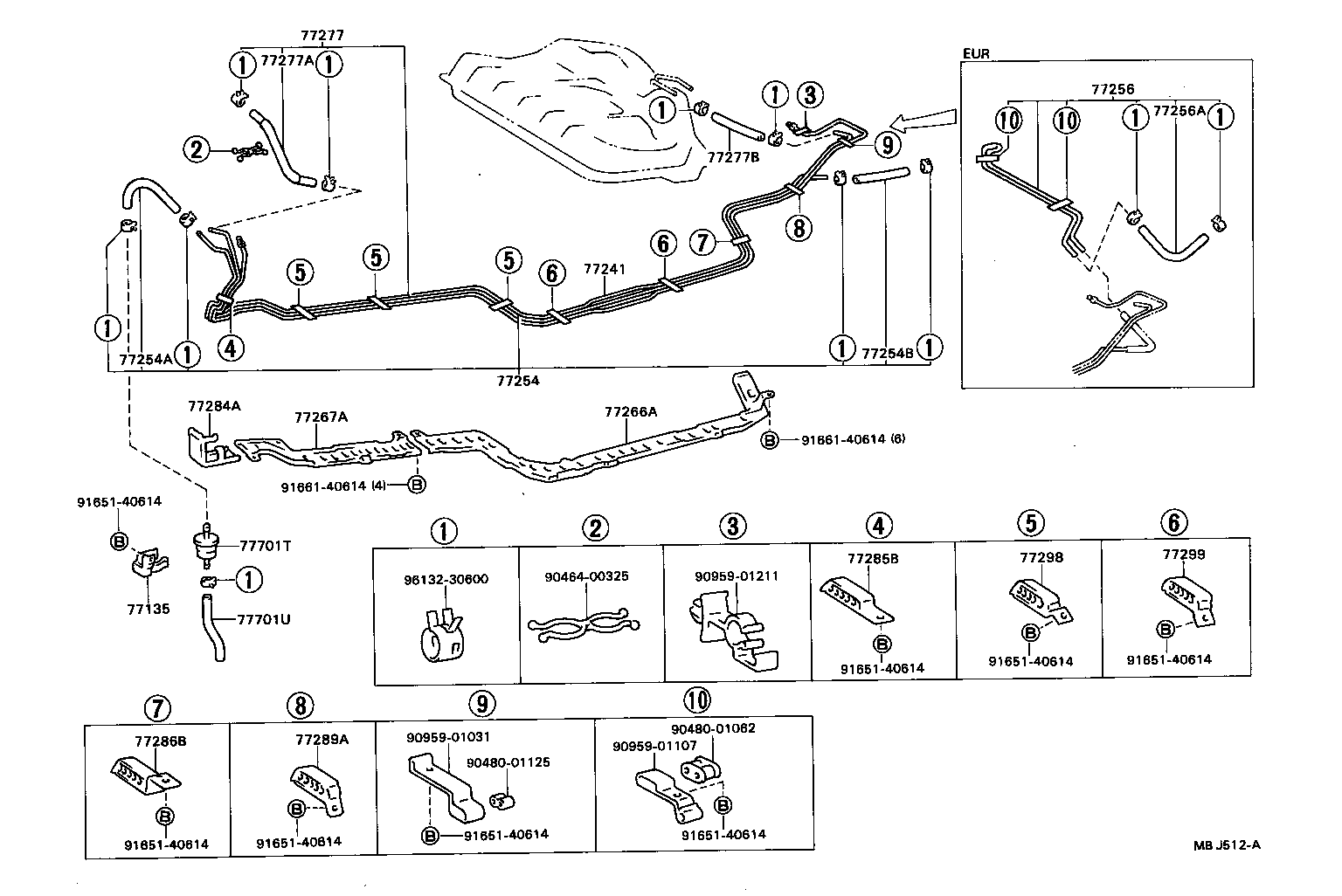

(8508-8605)ST150..EUG ; (8508-8703)ST151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20040 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 77135-20020 |
AT151,CT150,ST15#..GEN |
1 | ||
| 77135-32010 |
AT151,CT150,ST15#..GEN,TH |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-20262 |
ST151 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77019-20121 |
AT151,CT150,ST15#..GEN,SAA |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06030 |
AT151,CT150,ST15#..GEN,SAA *H,L=220 |
1 | ||
| 95332-06030 |
AT151,CT150,ST15#..GEN,SAA,TH *H,L=280 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
AT151,CT150,ST15# *H,L=260 |
1 | ||
| 95333-06030 |
AT151,CT150,ST15# *H,L=260 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77263-20050 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06026 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=260 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20050 |
AT151,CT150,ST15# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20010 |
AT151,CT150,ST15#..EUR,GEN,SAA POLYETHYLENE |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77207-20050 |
ST151 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12018 |
ST151 |
1 | ||
| 90447-12085 |
ST151 L=320 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
ST151 *H,L=200 |
1 | ||
| 95333-06020 |
ST151 *H,L=200 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-32020 |
CT150,ST151 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-32020 |
CT150,ST151 |
1 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-20010 |
CT150,ST151 |
3 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-20010 |
CT150,ST151 |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AT151,CT150,ST15#..EUR,GEN,TH |
1 | ||
| 90917-10020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 90917-10020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06017 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=170 |
1 | ||
| 95332-06020 |
AT151,CT150,ST15#..GEN,TH *H,L=130 |
1 | ||
| 95333-06020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=130 |
1 | ||
| 95332-06020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=130 |
1 | ||
| 95332-06007 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=70 |
1 | ||
| Common parts | ||||
| 90464-00325 | ||||
| 90480-01062 | ||||
| 90480-01125 | ||||
| 90959-01031 | ||||
| 90959-01107 | ||||
| 90959-01211 | ||||
| 91651-40614 | ||||
| 91661-40614 | ||||
| 96132-30600 | ||||

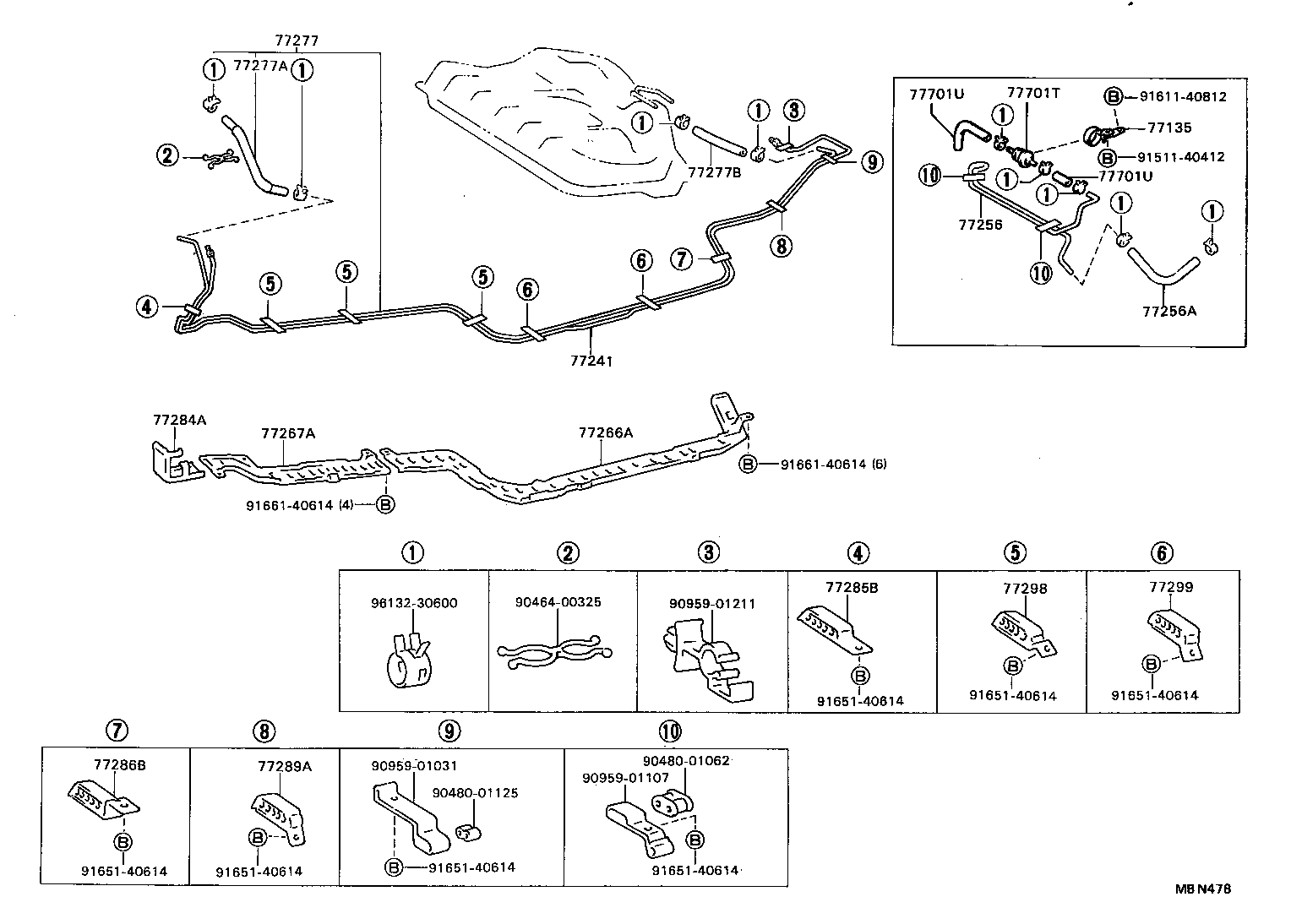

(8703- )ST151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20040 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 77135-20020 |
AT151,CT150,ST15#..GEN |
1 | ||
| 77135-32010 |
AT151,CT150,ST15#..GEN,TH |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-20262 |
ST151 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77263-20050 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06026 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=260 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20050 |
AT151,CT150,ST15# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20010 |
AT151,CT150,ST15#..EUR,GEN,SAA POLYETHYLENE |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77207-20050 |
ST151 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12018 |
ST151 |
1 | ||
| 90447-12085 |
ST151 L=320 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
ST151 *H,L=200 |
1 | ||
| 95333-06020 |
ST151 *H,L=200 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-32020 |
CT150,ST151 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-32020 |
CT150,ST151 |
1 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-20010 |
CT150,ST151 |
3 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-20010 |
CT150,ST151 |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AT151,CT150,ST15#..EUR,GEN,TH |
1 | ||
| 90917-10020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 90917-10020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06017 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=170 |
1 | ||
| 95332-06020 |
AT151,CT150,ST15#..GEN,TH *H,L=130 |
1 | ||
| 95333-06020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=130 |
1 | ||
| 95332-06020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=130 |
1 | ||
| 95332-06007 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=70 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06017 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=170 |
1 | ||
| 95332-06020 |
AT151,CT150,ST15#..GEN,TH *H,L=130 |
1 | ||
| 95333-06020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=130 |
1 | ||
| 95332-06020 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=130 |
1 | ||
| 95332-06007 |
AT151..EUG;AT151..GEN;CT150,ST15#..EUR,GEN *H,L=70 |
1 | ||
| Common parts | ||||
| 90464-00325 | ||||
| 90480-01062 | ||||
| 90480-01125 | ||||
| 90959-01031 | ||||
| 90959-01107 | ||||
| 90959-01211 | ||||
| 91511-40412 | ||||
| 91611-40812 | ||||
| 91651-40614 | ||||
| 91661-40614 | ||||
| 96132-30600 | ||||
