ST150R-TLMDS (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Nov 1987
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )1SL

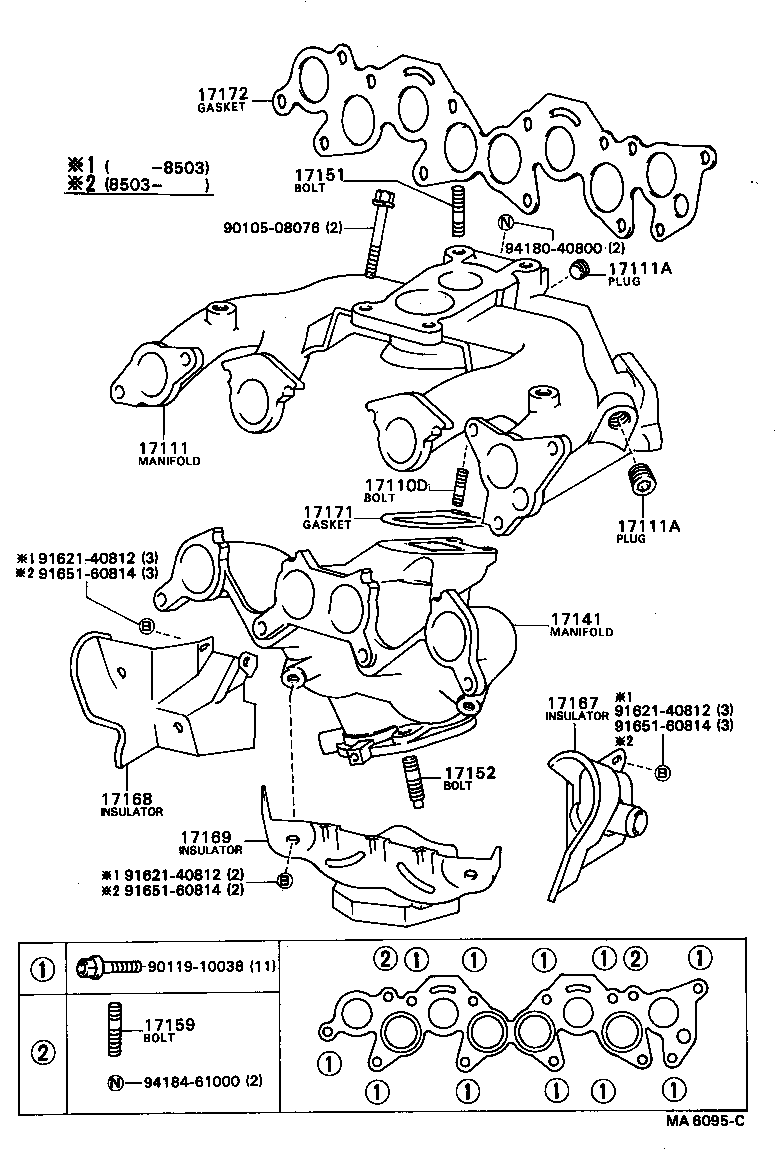

Click highlighted areas on diagram

diagram 17110D 17111 17111A 17111A 17141 17151 17152 17159 17167 17168 17169 17171 17172 9010508076 9011910038 9162140812 9162140812 9162140812 9165160814 9165160814 9165160814 9418040800 9418461000
Part # Description Qty Price
17110D - BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
92112-60825

1SL..ST150

 2
92112-40825

1SL..ST150

 2
17111 - MANIFOLD, INTAKE
17111-63040

1SL..ST150

 1
17111-63020

1SL..ST150

 1
17111A - PLUG, NO.1
90344-53011

1SL..ST150

 3
17111A - PLUG, NO.1
90344-53011

1SL..ST150

 3
17141 - MANIFOLD, EXHAUST
17141-63051

1SL..ST150

 1
17141-63050

1SL..ST150

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92122-40832

1SL..ST150

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

1S#,2SEL..ST15#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10123

1SL..ST150

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17902-63020

1SL..ST150

W/HOT AIR INTAKE

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17932-63030

1SL..ST150

W/HOT AIR INTAKE

 1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17904-63020

1S#,2SEL..ST15#

W/HOT AIR INTAKE

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-63021

1SL..ST150

 1
17171-63022

1SL..ST150

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-63020

1SL..ST150

 1
17172-63010

1SL..ST150

 1
Common parts
90105-08076
90119-10038
91621-40812
91651-60814
94180-40800
94184-61000
