ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

Click highlighted areas on diagram

diagram 88453 88454A 88460 88460B 8846712040 8846714050 8846714070 8846720040 88470 88470B 88472 88473 88479 88550 8857820090 8857832020 8857832020 8857832020 8857832020 88590 88596B 88596C 88716A 8871812280 8871820450 8871822420 8889320110 9009120612 9009120613 9009120619 9009904995 9009932100 9009932120 9009980509 9015960148 9331914016 9338516012 9338516012 9338516030
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-32010

ST150;CT150..DX,XL;CT150..LHD..GL

 1
88454A - SHROUD, FAN
88454-32020

ST150..MTM;ST150..3FC..GEN

 1
88460 - CONDENSER ASSY, COOLER
88460-20180

AT151..LHD..EUG;AT151..LHD..GEN;CT150,ST150..LHD

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-20330

CT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12061

CT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)

 1
88470B - BOLT, FUSE
88475-12020

CT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-20010

CT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)

 1
88473 - CAP, COOLER RECEIVER TANK
88894-12111

CT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)

400G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-20020

AT151..LHD..EUG;AT151..LHD..GEN;CT150,ST150..LHD

 1
88590 - BLOWER ASSY, W/SHROUD
88590-20010

ST150..5F..SAA

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-20640

CT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)

 1
Common parts
88467-12040
88467-14050
88467-14070
88467-20040
88578-20090
88578-32020
88718-12280
88718-20450
88718-22420
88893-20110
90091-20612
90091-20613
90091-20619
90099-04995
90099-32100
90099-32120
90099-80509
90159-60148
93319-14016
93385-16012
93385-16030

(8310-8508)ST150

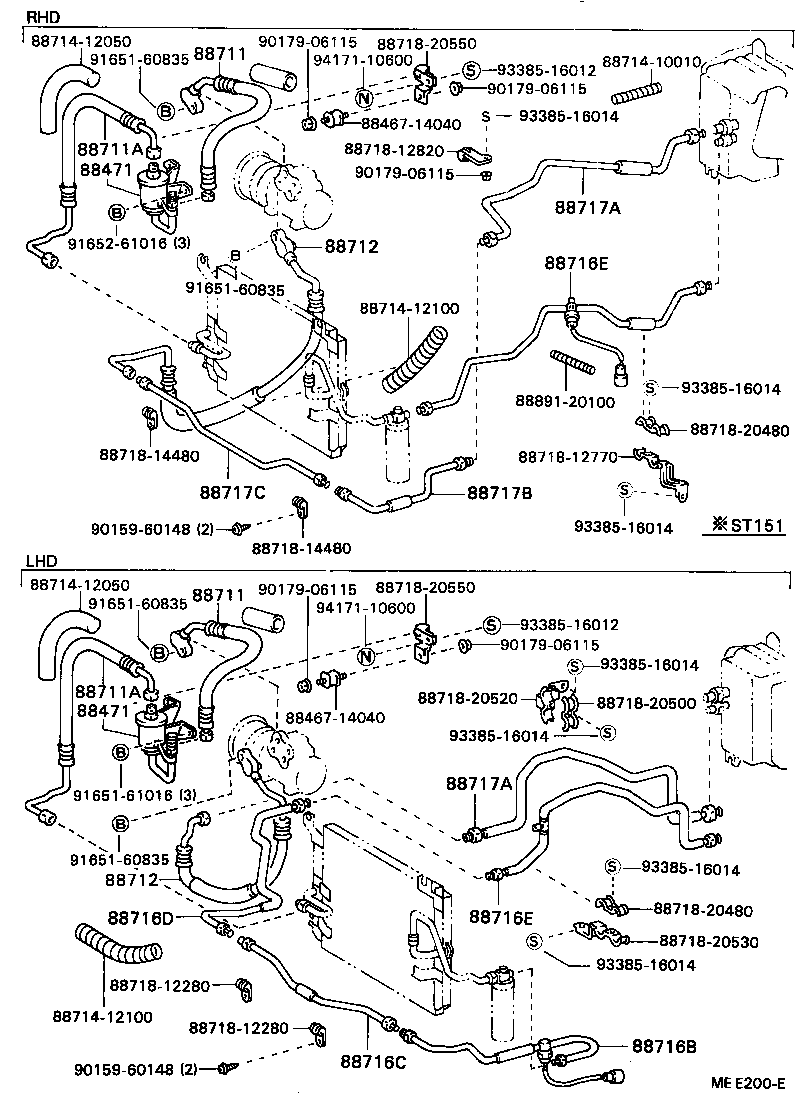

Click highlighted areas on diagram

diagram 8846714040 8846714040 88471 88471 88711 88711 88711A 88711A 88712 88712 8871410010 8871412050 8871412050 8871412100 8871412100 88716B 88716C 88716D 88716E 88716E 88717A 88717A 88717B 88717C 8871812280 8871812280 8871812770 8871812820 8871814480 8871814480 8871820480 8871820480 8871820500 8871820520 8871820530 8871820550 8871820550 8889120100 9015960148 9015960148 9017906115 9017906115 9017906115 9017906115 9017906115 9165160835 9165160835 9165160835 9165160835 9165161016 9165261016 9338516012 9338516012 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9417110600 9417110600
Part # Description Qty Price
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20020

ST15#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20020

ST15#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20400

ST150

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20400

ST150

 1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-20410

ST150

 1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-20410

ST150

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-20490

ST150..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-20490

ST150..LHD

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-20790

AT151..LHD..EUG;AT151..LHD..GEN;CT150,ST150..LHD

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-20780

ST150..SAA

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-20810

AT151..LHD..EUG;AT151,ST150..LHD..(GEN,SAA)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-20820

ST150..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-20820

ST150..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20410

ST150..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20410

ST150..LHD

 1
Common parts
88467-14040
88714-10010
88714-12050
88714-12100
88718-12280
88718-12770
88718-12820
88718-14480
88718-20480
88718-20500
88718-20520
88718-20530
88718-20550
88891-20100
90159-60148
90179-06115
91651-60835
91651-61016
91652-61016
93385-16012
93385-16014
94171-10600
