ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )ST15#

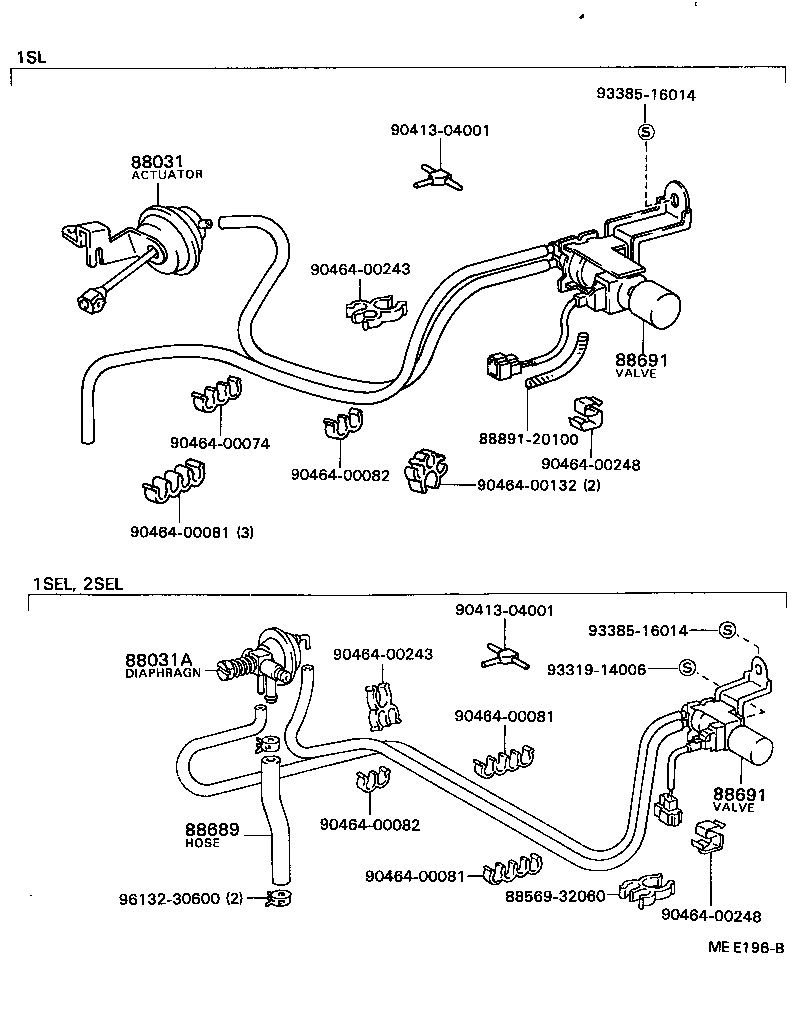

Click highlighted areas on diagram

diagram 88031 88031A 8856932060 88689 88691 88691 8889120100 9041304001 9041304001 9046400074 9046400081 9046400081 9046400081 9046400082 9046400082 9046400132 9046400243 9046400243 9046400248 9046400248 9331914006 9338516014 9338516014 9613230600
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-20060

ST150..GEN,SAA,TH

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20580

ST150..LHD..(GEN,SAA)

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20580

ST150..LHD..(GEN,SAA)

 1
Common parts
88569-32060
88891-20100
90413-04001
90464-00074
90464-00081
90464-00082
90464-00132
90464-00243
90464-00248
93319-14006
93385-16014
96132-30600
