ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )ST15#

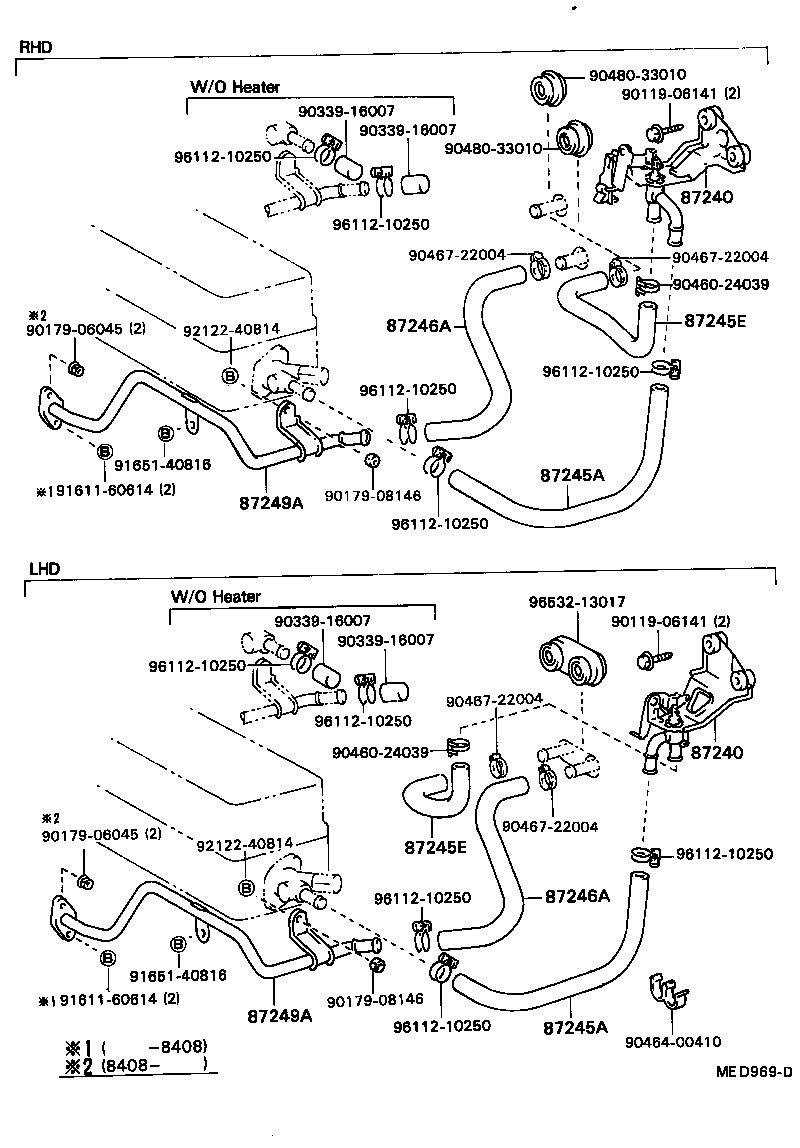

Click highlighted areas on diagram

diagram 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87249A 87249A 9011906141 9011906141 9017906045 9017906045 9017908146 9017908146 9033916007 9033916007 9033916007 9033916007 9046024039 9046024039 9046400410 9046722004 9046722004 9046722004 9046722004 9048033010 9048033010 9161160614 9161160614 9165140816 9165140816 9212240814 9212240814 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9653213017
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-20280

AT151,CT150,ST150..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-20280

AT151,CT150,ST150..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-20680

ST150..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-20680

ST150..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-20610

AT151,CT150,ST150..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-20610

AT151,CT150,ST150..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B110

ST150..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B110

ST150..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-32012

ST150..GEN,SAA,TH

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-32012

ST150..GEN,SAA,TH

 1
Common parts
90119-06141
90179-06045
90179-08146
90339-16007
90460-24039
90464-00410
90467-22004
90480-33010
91611-60614
91651-40816
92122-40814
96112-10250
96532-13017
