ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

Click highlighted areas on diagram

diagram 55903 55905A 55906A 55906A 55907A 55908A 55909A 55910 55910B 5593120070 5593310010 5593324010 5593920040 55941A 8302 8401 87284 9048013006 9048013015 9356614512 9356614512 9356755016
Part # Description Qty Price
55903 - LEVER SUB-ASSY, HEATER CONTROL
55917-20100

AT151,CT150,ST150..LHD..(GEN,SAA)

 1
55905A - KNOB, HEATER CONTROL
55905-12060

AT151,CT150,ST15#

 6
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20180

AT151,CT150,ST150..LHD..(GEN,SAA)

W/HEATER,R-L CONTROL

 1
55906-20220

AT151,CT150,ST150..LHD..(GEN,SAA)

W/*BV,R-L CONTROL

 1
55906-20170

AT151,CT150,ST150..LHD

MODE

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20180

AT151,CT150,ST150..LHD..(GEN,SAA)

W/HEATER,R-L CONTROL

 1
55906-20220

AT151,CT150,ST150..LHD..(GEN,SAA)

W/*BV,R-L CONTROL

 1
55906-20170

AT151,CT150,ST150..LHD

MODE

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20170

AT151,CT150,ST150..LHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20090

AT151,CT150,ST150..LHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
87286-20020

AT151,CT150,ST150..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20320

AT151,CT150,ST150..LHD..(GEN,SAA)

W/HEATER

 1
55910-20340

AT151,CT150,ST150..LHD..(GEN,SAA)

W/*BV

 1
55941A - GUIDE, HEATER CONTROL
55941-20050

AT151,CT150,ST15#

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-20050

AT151,CT150,ST15#..GEN,SAA,TH

 1
Common parts
55931-20070
55933-10010
55933-24010
55939-20040
90480-13006
90480-13015
93566-14512
93567-55016
Linked diagrams
8302
8401

(8310- )LHD

Click highlighted areas on diagram

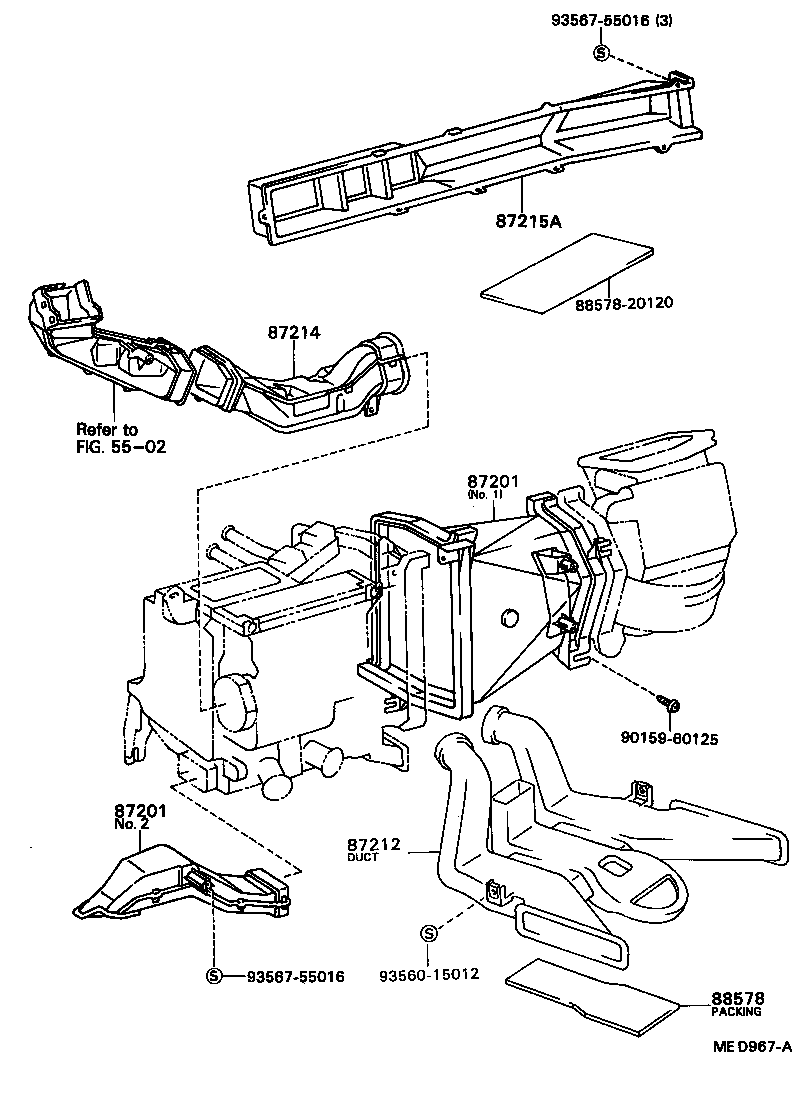

diagram 5502 87201 87201 87212 87214 87215A 88578 8857820120 9015960125 9356015012 9356755016 9356755016
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-20110

AT151,CT150,ST150..LHD

NO.1

 1
87201-20130

AT151,CT150,ST150..LHD

NO.2

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-20110

AT151,CT150,ST150..LHD

NO.1

 1
87201-20130

AT151,CT150,ST150..LHD

NO.2

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-20020

AT151,CT150,ST150..LHD

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55847-20080

AT151,CT150,ST150..LHD

 1
Common parts
88578-20120
90159-60125
93560-15012
93567-55016
Linked diagrams
5502
