ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )LHD

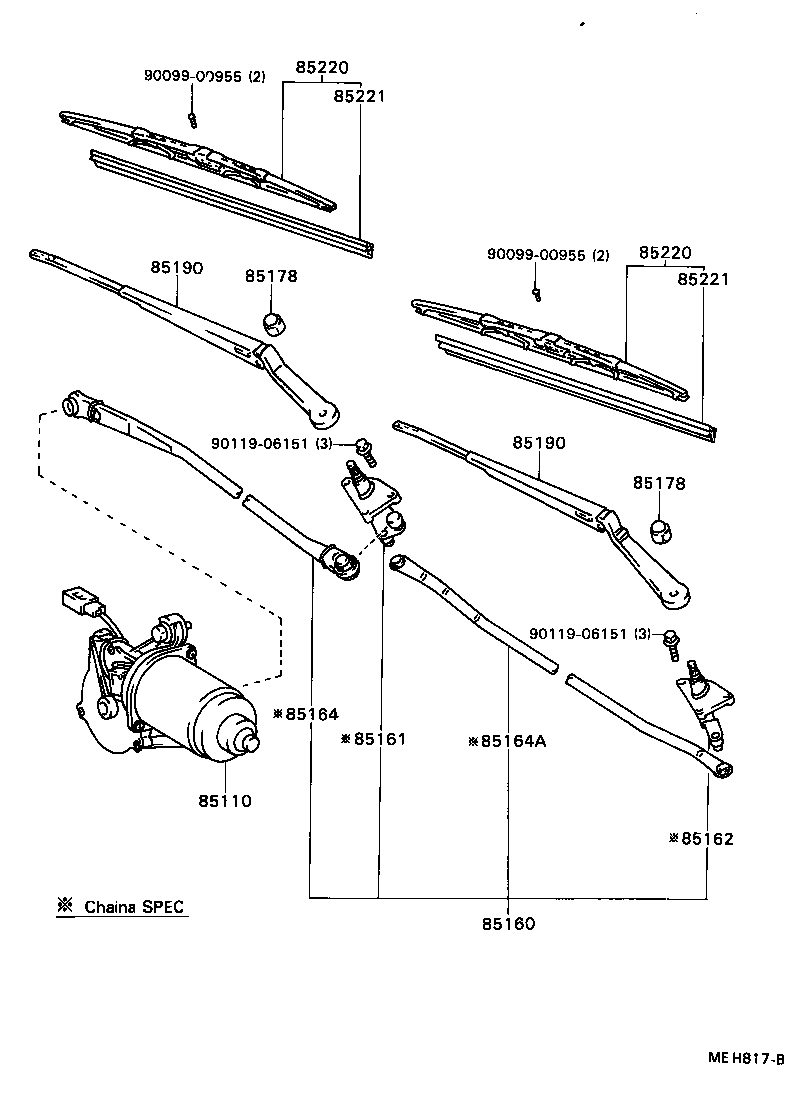

Click highlighted areas on diagram

diagram 85110 85160 85161 85162 85164 85164A 85178 85178 85190 85190 85220 85220 85221 85221 9009900955 9009900955 9011906151 9011906151
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-20170

AT151,CT150,ST150..LHD..(GEN,SAA)

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-20220

AT151,CT150,ST150..LHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08029

AT151,CT150,ST150

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08029

AT151,CT150,ST150

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85210-20120

AT151,CT150,ST150..LHD

RH

 1
85190-20390

AT151,CT150,ST150..LHD..(GEN,SAA)

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85210-20120

AT151,CT150,ST150..LHD

RH

 1
85190-20390

AT151,CT150,ST150..LHD..(GEN,SAA)

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16270

AT151,CT150,ST150..LHD

LH

 1
85220-16290

AT151,CT150,ST150..LHD

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16270

AT151,CT150,ST150..LHD

LH

 1
85220-16290

AT151,CT150,ST150..LHD

RH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30100

AT151,CT150,ST150..LHD

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30100

AT151,CT150,ST150..LHD

 2
Common parts
90099-00955
90119-06151
