ST150L-TLMDSV (1983)
Toyota Corona/Carina 2

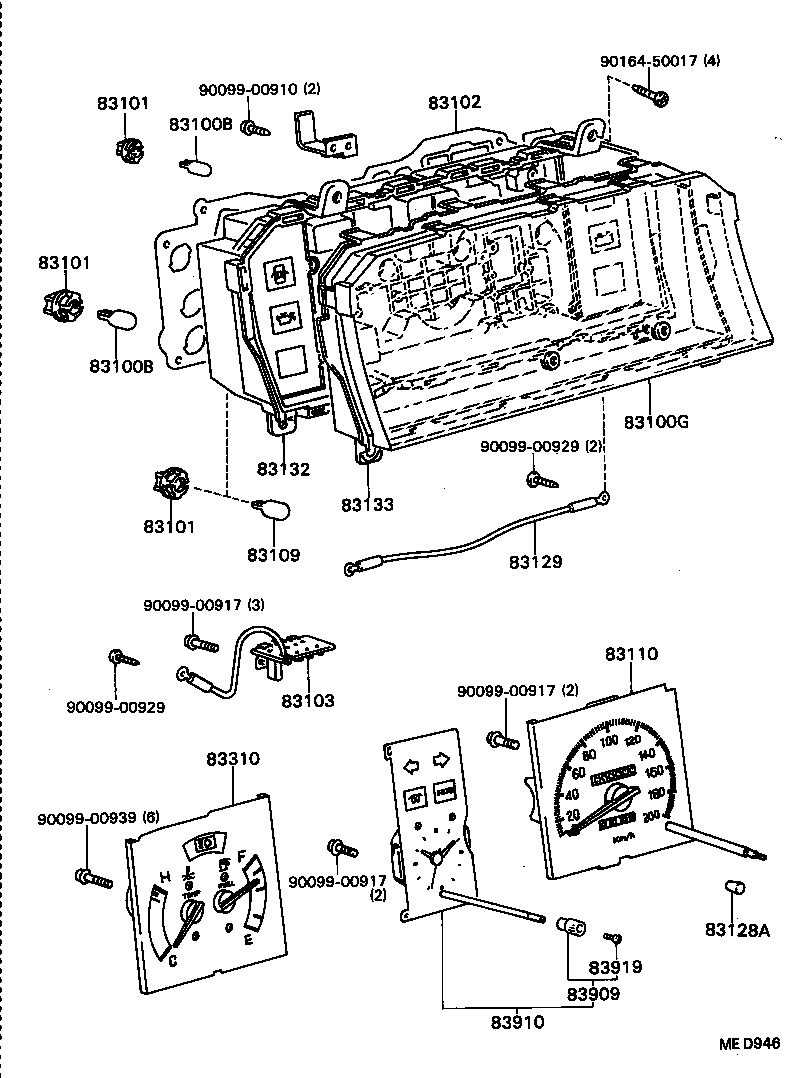

(8310- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT151,CT150,ST15# 12V 3.4W |
13 | ||
| 90981-11018 |
AT151,CT150,ST15#..DX,GL,XL 12V 1.2W W/O SOCKET |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT151,CT150,ST15# 12V 3.4W |
13 | ||
| 90981-11018 |
AT151,CT150,ST15#..DX,GL,XL 12V 1.2W W/O SOCKET |
9 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-20160 |
AT151,CT150,ST150..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83138-2B230 |
AT151,CT150,ST150..LHD..(STD,XL) W/O TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT151,CT150,ST15#..DX,GL,XL BULB=12V 1.4W |
9 | ||
| 83101-14030 |
AT151,CT150,ST15# BULB=12V 3.4W |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT151,CT150,ST15#..DX,GL,XL BULB=12V 1.4W |
9 | ||
| 83101-14030 |
AT151,CT150,ST15# BULB=12V 3.4W |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT151,CT150,ST15#..DX,GL,XL BULB=12V 1.4W |
9 | ||
| 83101-14030 |
AT151,CT150,ST15# BULB=12V 3.4W |
13 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-20650 |
AT151,ST150..XL..SAA W/O TACHOMETER |
1 | ||
| 83247-20600 |
ST150..SAA W/TACHOMETER |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
AT151,CT150,ST150..LHD..(STD,XL) 12V3.4W W(GREEN CAP) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2B240 |
ST150..XL..SAA W/O TACHOMETER |
1 | ||
| 83110-2B250 |
ST150..SAA W/TACHOMETER |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-16060 |
AT151,CT150,ST150..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83128-10260 |
AT151,CT150,ST150..LHD..(STD,XL) W/O TACHO METER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20260 |
AT151,ST150..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83132-2B870 |
ST150..XL..SAA W/O TACHOMETER |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-20190 |
AT151,CT150,ST150..LHD..(STD,XL) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-20300 |
AT151,CT150,ST150..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83243-20350 |
ST150..LHD..(3FC,5F)..XL W/O TACHOMETER,*ME |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
AT151,CT150,ST15#..(GL,XL)..(GEN,SAA) W/DIGITAL CLOCK |
1 | ||
| 83909-14012 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) W/ANALOGUE CLOCK |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20520 |
AT151,CT150,ST150..LHD..(GL,XL)..(GEN,SAA) DIGITAL CLOCK |
1 | ||
| 83910-20490 |
AT151,ST150..LHD..(STD,XL) ANALOGUE CLOCK |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) W/ANALOGUE CLOCK |
1 | ||
| 83919-12230 |
AT151,CT150,ST15#..(GL,XL)..(GEN,SAA) W/DIGITAL CLOCK |
1 | ||
| Common parts | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90164-50017 | ||||

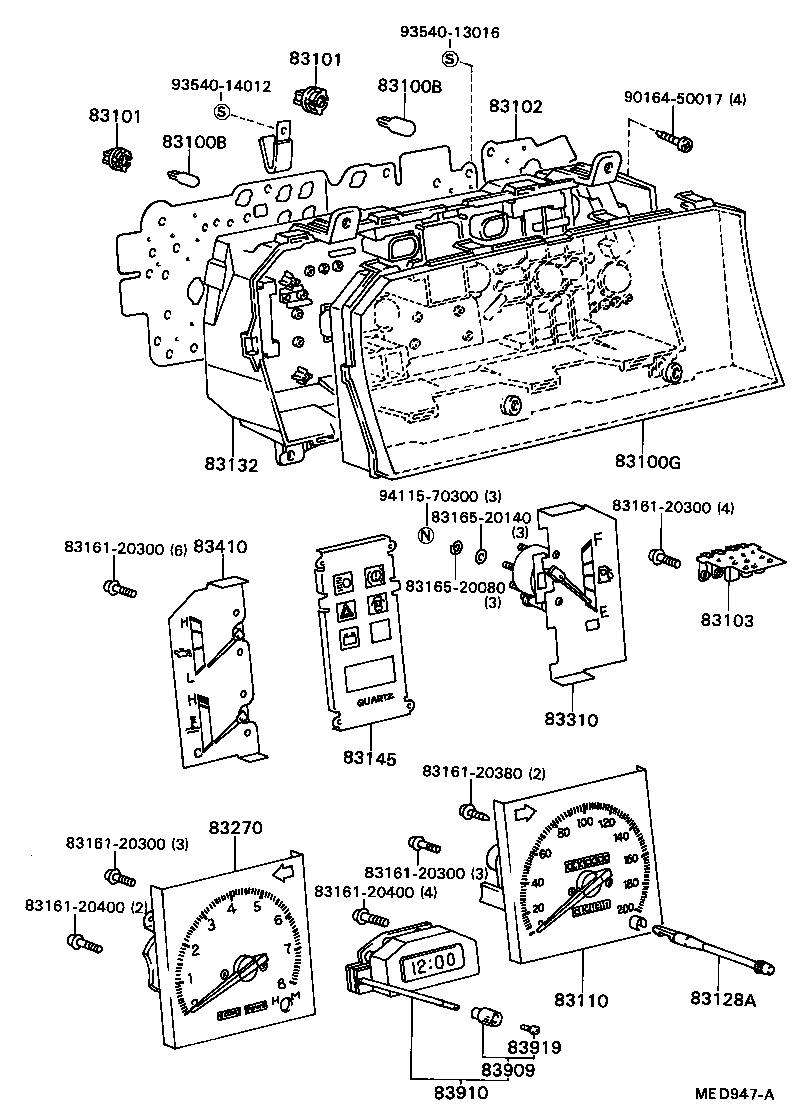

(8310- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT151,CT150,ST15# 12V 3.4W |
13 | ||
| 90981-11018 |
AT151,CT150,ST15#..DX,GL,XL 12V 1.2W W/O SOCKET |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT151,CT150,ST15# 12V 3.4W |
13 | ||
| 90981-11018 |
AT151,CT150,ST15#..DX,GL,XL 12V 1.2W W/O SOCKET |
9 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-20160 |
AT151,CT150,ST150..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83138-2B230 |
AT151,CT150,ST150..LHD..(STD,XL) W/O TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT151,CT150,ST15#..DX,GL,XL BULB=12V 1.4W |
9 | ||
| 83101-14030 |
AT151,CT150,ST15# BULB=12V 3.4W |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT151,CT150,ST15#..DX,GL,XL BULB=12V 1.4W |
9 | ||
| 83101-14030 |
AT151,CT150,ST15# BULB=12V 3.4W |
13 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-20650 |
AT151,ST150..XL..SAA W/O TACHOMETER |
1 | ||
| 83247-20600 |
ST150..SAA W/TACHOMETER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2B240 |
ST150..XL..SAA W/O TACHOMETER |
1 | ||
| 83110-2B250 |
ST150..SAA W/TACHOMETER |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-16060 |
AT151,CT150,ST150..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83128-10260 |
AT151,CT150,ST150..LHD..(STD,XL) W/O TACHO METER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20260 |
AT151,ST150..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83132-2B870 |
ST150..XL..SAA W/O TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-20620 |
ST150..SAA |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-20220 |
AT151,ST150..LHD..(GL,XL)..(GEN,SAA) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-20300 |
AT151,CT150,ST150..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83243-20350 |
ST150..LHD..(3FC,5F)..XL W/O TACHOMETER,*ME |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-20180 |
ST150..LHD..(3FC,5F) *ME |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
AT151,CT150,ST15#..(GL,XL)..(GEN,SAA) W/DIGITAL CLOCK |
1 | ||
| 83909-14012 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) W/ANALOGUE CLOCK |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20520 |
AT151,CT150,ST150..LHD..(GL,XL)..(GEN,SAA) DIGITAL CLOCK |
1 | ||
| 83910-20490 |
AT151,ST150..LHD..(STD,XL) ANALOGUE CLOCK |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) W/ANALOGUE CLOCK |
1 | ||
| 83919-12230 |
AT151,CT150,ST15#..(GL,XL)..(GEN,SAA) W/DIGITAL CLOCK |
1 | ||
| Common parts | ||||
| 83161-20300 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83165-20080 | ||||
| 83165-20140 | ||||
| 90164-50017 | ||||
| 93540-13016 | ||||
| 93540-14012 | ||||
| 94115-70300 | ||||
(8310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
AT151,CT150,ST15# |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
AT151,CT150,ST15# |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20380 |
AT151,CT150,ST150..LHD..(3FC,4F,5F) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20380 |
AT151,CT150,ST150..LHD..(3FC,4F,5F) |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-30360 | ||||
| 83791-12040 | ||||
| 90119-06067 | ||||
| 90464-00082 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
