Toyota Corona/carina 2 ST150 REAR LICENSE PLATE LAMP

ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985

Engine 1SL

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

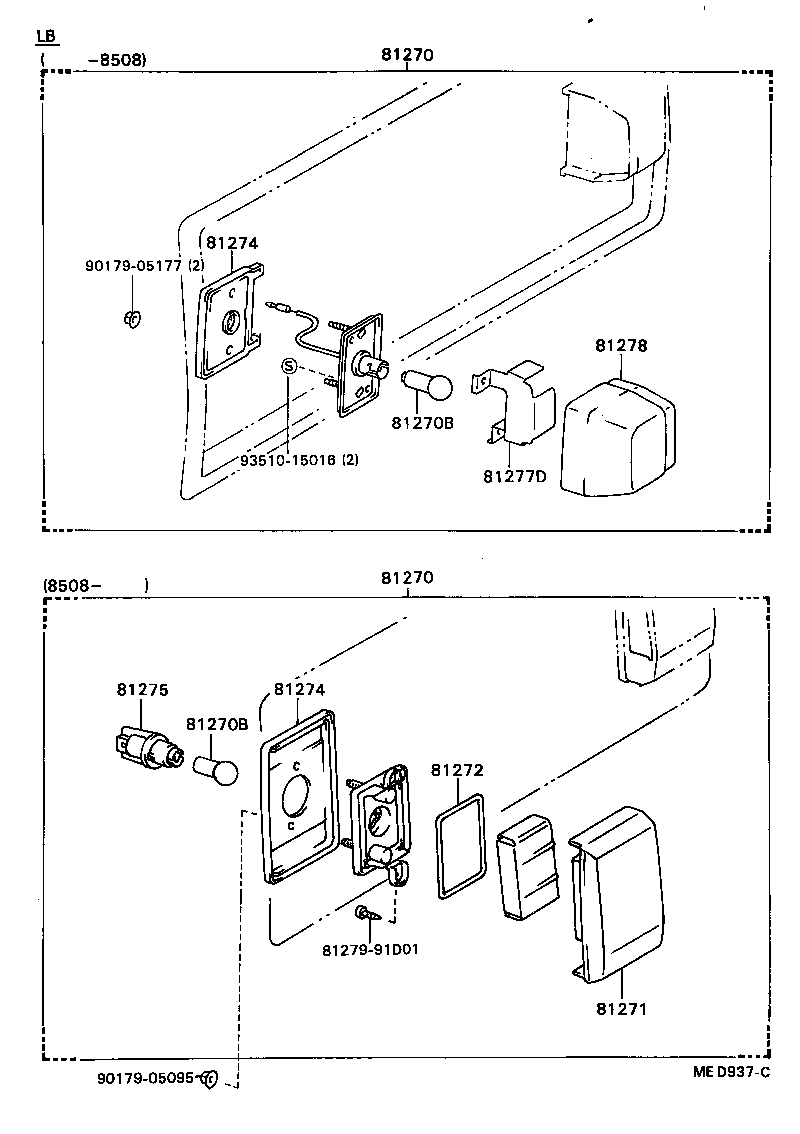

Click highlighted areas on diagram

Part #	Description	Period	Qty
81270 - LAMP ASSY, LICENSE PLATE
81690-19135	AT151,ST150..LB..(GEN,SAA) LH,SIDE LIGHTING	10/1983 - 08/1985	1
81270-19695	AT151,ST150..LB..(GEN,SAA) RH,SIDE LIGHTING	10/1983 - 08/1985	1
81270 - LAMP ASSY, LICENSE PLATE
81690-19135	AT151,ST150..LB..(GEN,SAA) LH,SIDE LIGHTING	10/1983 - 08/1985	1
81270-19695	AT151,ST150..LB..(GEN,SAA) RH,SIDE LIGHTING	10/1983 - 08/1985	1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100	AT151,ST150..LB..(GEN,SAA) 12V 10W,12V 10W	10/1983 - 08/1985	4
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100	AT151,ST150..LB..(GEN,SAA) 12V 10W,12V 10W	10/1983 - 08/1985	4
81274 - GASKET, LICENSE PLATE LAMP BODY
81694-16010	AT151,ST150..LB..(GEN,SAA) LH,SIDE LIGHTING	10/1983 - 08/1985	1
81274-16020	AT151,ST150..LB..(GEN,SAA) RH,SIDE LIGHTING	10/1983 - 08/1985	1
81274 - GASKET, LICENSE PLATE LAMP BODY
81694-16010	AT151,ST150..LB..(GEN,SAA) LH,SIDE LIGHTING	10/1983 - 08/1985	1
81274-16020	AT151,ST150..LB..(GEN,SAA) RH,SIDE LIGHTING	10/1983 - 08/1985	1
81277D - REFLECTOR, LICENSE PLATE LAMP
81277-20140	AT151,ST150..LB..(GEN,SAA) RH,SIDE LIGHTING	10/1983 - 08/1985	1
81697-20040	AT151,ST150..LB..(GEN,SAA) LH,SIDE LIGHTING	10/1983 - 08/1985	1
81278 - COVER, LICENSE PLATE LAMP
81691-16070	AT151,ST150..LB..(GEN,SAA) LH,SIDE LIGHTING	10/1983 - 08/1985	1
81271-16090	AT151,ST150..LB..(GEN,SAA) RH,SIDE LIGHTING	10/1983 - 08/1985	1
Common parts
81279-91D01
90179-05095
90179-05177
93510-15016

Click highlighted areas on diagram

Part #	Description	Period	Qty
81270 - LAMP ASSY, LICENSE PLATE
81690-19135	AT151,ST150..LB..(GEN,SAA) LH,SIDE LIGHTING	10/1983 - 08/1985	1
81270-19695	AT151,ST150..LB..(GEN,SAA) RH,SIDE LIGHTING	10/1983 - 08/1985	1
81270 - LAMP ASSY, LICENSE PLATE
81690-19135	AT151,ST150..LB..(GEN,SAA) LH,SIDE LIGHTING	10/1983 - 08/1985	1
81270-19695	AT151,ST150..LB..(GEN,SAA) RH,SIDE LIGHTING	10/1983 - 08/1985	1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100	AT151,ST150..LB..(GEN,SAA) 12V 10W,12V 10W	10/1983 - 08/1985	4
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100	AT151,ST150..LB..(GEN,SAA) 12V 10W,12V 10W	10/1983 - 08/1985	4
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100	AT151,ST150..LB..(GEN,SAA) 12V 10W,12V 10W	10/1983 - 08/1985	4
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100	AT151,ST150..LB..(GEN,SAA) 12V 10W,12V 10W	10/1983 - 08/1985	4
81278 - COVER, LICENSE PLATE LAMP
81691-16070	AT151,ST150..LB..(GEN,SAA) LH,SIDE LIGHTING	10/1983 - 08/1985	1
81271-16090	AT151,ST150..LB..(GEN,SAA) RH,SIDE LIGHTING	10/1983 - 08/1985	1
81278 - COVER, LICENSE PLATE LAMP
81691-16070	AT151,ST150..LB..(GEN,SAA) LH,SIDE LIGHTING	10/1983 - 08/1985	1
81271-16090	AT151,ST150..LB..(GEN,SAA) RH,SIDE LIGHTING	10/1983 - 08/1985	1
Common parts
81277-20240
81279-20240
90164-40032
90164-40051
90179-05095
90189-04018
90189-04022
93510-14012
