ST150L-TLMDSV (1983)
Toyota Corona/Carina 2
Production
Oct 1983
-
Aug 1985
Engine
1SL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8310- )LB

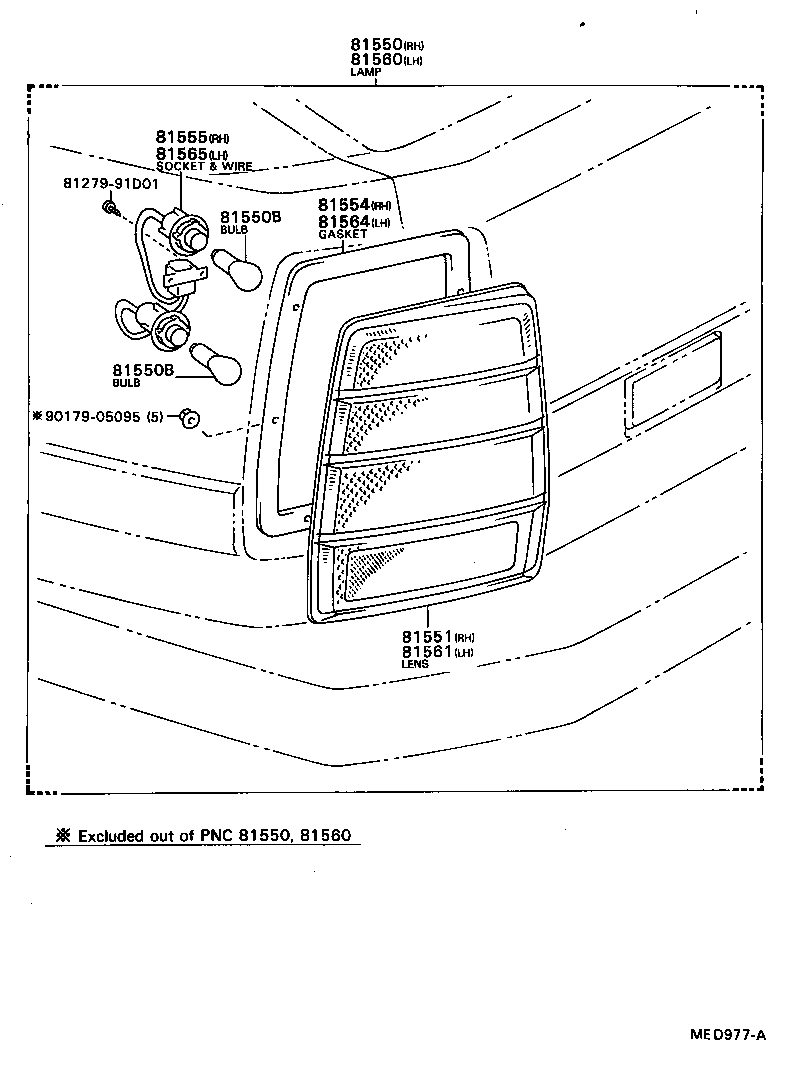

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-80154 |
AT151,ST150..LB..(GEN,SAA) |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AT151,CT150,ST15# 12V 21/5W,12V 21/5W |
2 | ||
| 99132-11230 |
AT151,CT150,ST15#..GEN,SAA,TH 12V 23W,12V 23W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AT151,CT150,ST15# 12V 21/5W,12V 21/5W |
2 | ||
| 99132-11230 |
AT151,CT150,ST15#..GEN,SAA,TH 12V 23W,12V 23W |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-20590 |
AT151,ST150..LB..(GEN,SAA) |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-20590 |
AT151,CT150,ST15#..LB |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-20590 |
AT151,ST15#..LB..(GEN,SAA,TH) |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-80159 |
AT151,ST150..LB..(GEN,SAA) |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-20530 |
AT151,ST150..LB..(GEN,SAA) |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-20590 |
AT151,CT150,ST15#..LB |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-20590 |
AT151,ST15#..LB..(GEN,SAA,TH) |
1 | ||
| Common parts | ||||
| 81279-91D01 | ||||
| 90179-05095 | ||||
