ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )LB

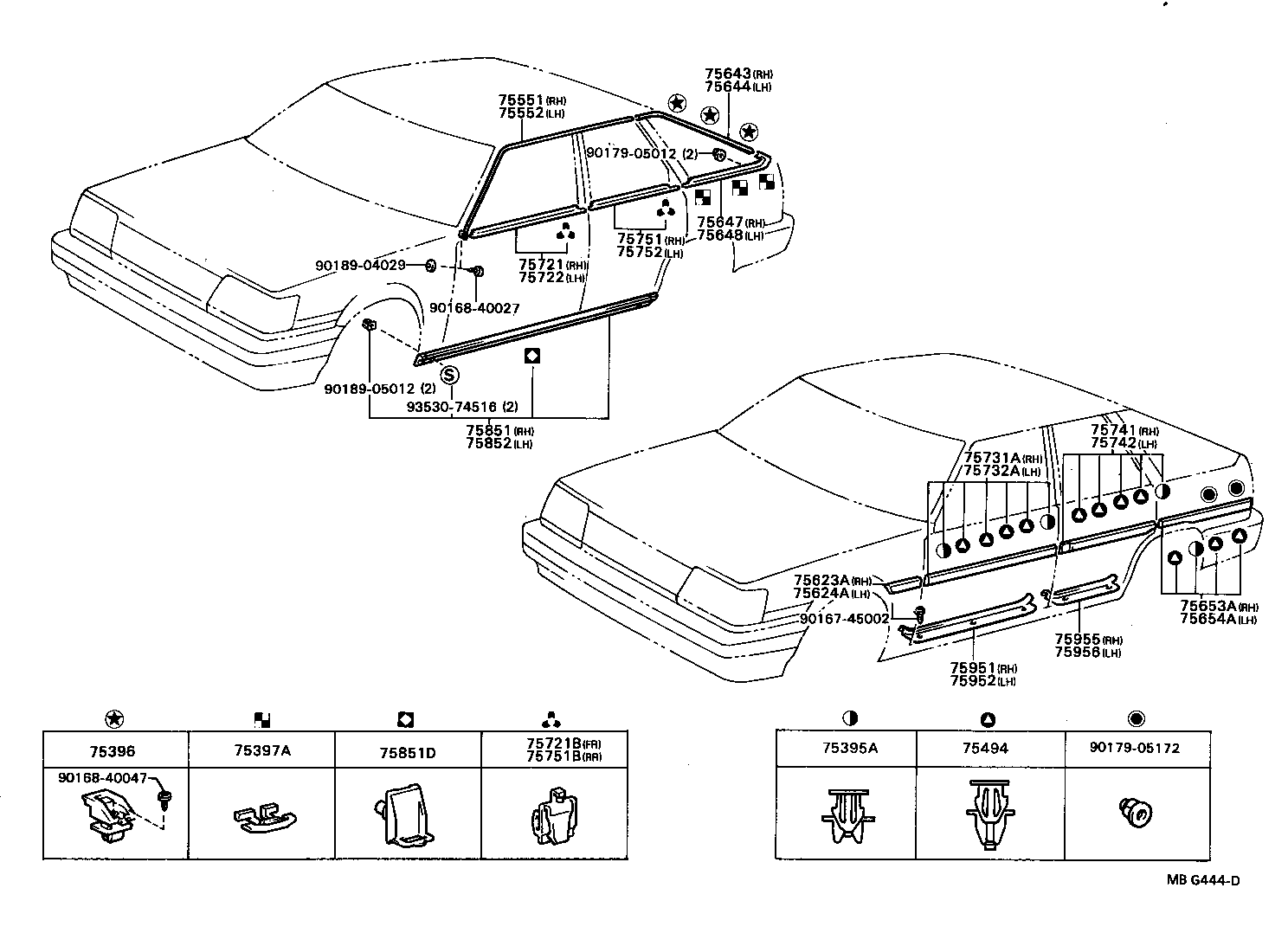

Click highlighted areas on diagram

diagram 75395A 75396 75397A 75494 75551 75552 75623A 75624A 75643 75644 75647 75648 75653A 75654A 75721 75721B 75722 75731A 75732A 75741 75742 75751 75751B 75752 75851 75851D 75852 75951 75952 75955 75956 9016745002 9016840027 9016840047 9017905012 9017905172 9018904029 9018905012 9353074516
Part # Description Qty Price
75395A - CLIP, OUTSIDE MOULDING, NO.1
75395-20060

AT151,CT150,ST15#..LB

 8
75396 - CLIP, OUTSIDE MOULDING, NO.2
75049-20020

AT151,CT150,ST15#..LB

 6
75397A - CLIP, OUTSIDE MOULDING, NO.3
75397-20020

AT151,CT150,ST15#..LB

 8
75494 - CLIP, OUTSIDE MOULDING, NO.3
75494-20010

AT151,CT150,ST150..LB

 22
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-20200

AT151,CT150,ST15#..LB

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-20200

AT151,CT150,ST15#..LB

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75611-20050

AT151,CT150,ST15#..LB

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75612-20020

AT151,CT150,ST15#..LB

 1
75643 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH
75603-20020

AT151,CT150,ST15#..LB

 1
75644 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH
75604-20010

AT151,CT150,ST15#..LB

 1
75647 - MOULDING, QUARTER WINDOW, OUTSIDE LOWER RH
75608-20010

AT151,CT150,ST15#..LB

 1
75648 - MOULDING, QUARTER WINDOW, OUTSIDE LOWER LH
75609-20010

AT151,CT150,ST15#..LB

 1
75653A - MOULDING, QUARTER, OUTSIDE REAR RH
75651-20091

AT151,CT150,ST15#..LB

 1
75654A - MOULDING, QUARTER, OUTSIDE REAR LH
75652-20081

AT151,CT150,ST15#..LB

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-20220

AT151,CT150,ST15#

 1
75721B - CLIP(FOR FRONT DOOR BELT MOULDING SET)
68211-20040

AT151,CT150,ST15#

 12
75722 - MOULDING, FRONT DOOR BELT, LH
75720-20220

AT151,CT150,ST15#

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-20100

AT151,CT150,ST15#..LB

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-20100

AT151,CT150,ST15#..LB

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-20130

AT151,CT150,ST15#..LB

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-20110

AT151,CT150,ST15#..LB

 1
75751 - MOULDING, REAR DOOR BELT, RH
75730-20070

AT151,CT150,ST15#

 1
75751B - CLIP (FOR REAR DOOR BELT MOULDING SET)
68211-20040

AT151,CT150,ST15#

 10
75752 - MOULDING, REAR DOOR BELT, LH
75740-20140

AT151,CT150,ST15#

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-29155

AT151,CT150,ST15#..DX,GL,XL

 1
75851D - CLIP(FOR ROCKER PANEL MOULDING SET)
75867-20030

AT151,CT150,ST15#..DX,GL,XL

 6
75852 - MOULDING, ROCKER PANEL, LH
75850-29155

AT151,CT150,ST15#..DX,GL,XL

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-2012004

AT151,CT150,ST150

BLUE,BLUE,TRIM8#

 1
67913-2012003

AT151,CT150,ST15#

SHADOW GRAY,GRAY,TRIM1#

 1
67913-2012002

AT151,CT150,ST15#

DEEP MAROON,RED/MAROON,TRIM3#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913-2012002

AT151,CT150,ST15#

DEEP MAROON,RED/MAROON,TRIM3#

 1
67913-2012004

AT151,CT150,ST150

BLUE,BLUE,TRIM8#

 1
67913-2012003

AT151,CT150,ST15#

SHADOW GRAY,GRAY,TRIM1#

 1
75955 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67917-2011002

AT151,CT150,ST15#

DEEP MAROON,RED/MAROON,TRIM3#

 1
67917-2011003

AT151,CT150,ST15#

SHADOW GRAY,GRAY,TRIM1#

 1
67917-2011004

AT151,CT150,ST150

BLUE,BLUE,TRIM8#

 1
75956 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917-2011003

AT151,CT150,ST15#

SHADOW GRAY,GRAY,TRIM1#

 1
67917-2011004

AT151,CT150,ST150

BLUE,BLUE,TRIM8#

 1
67917-2011002

AT151,CT150,ST15#

DEEP MAROON,RED/MAROON,TRIM3#

 1
Common parts
90167-45002
90168-40027
90168-40047
90179-05012
90179-05172
90189-04029
90189-05012
93530-74516
