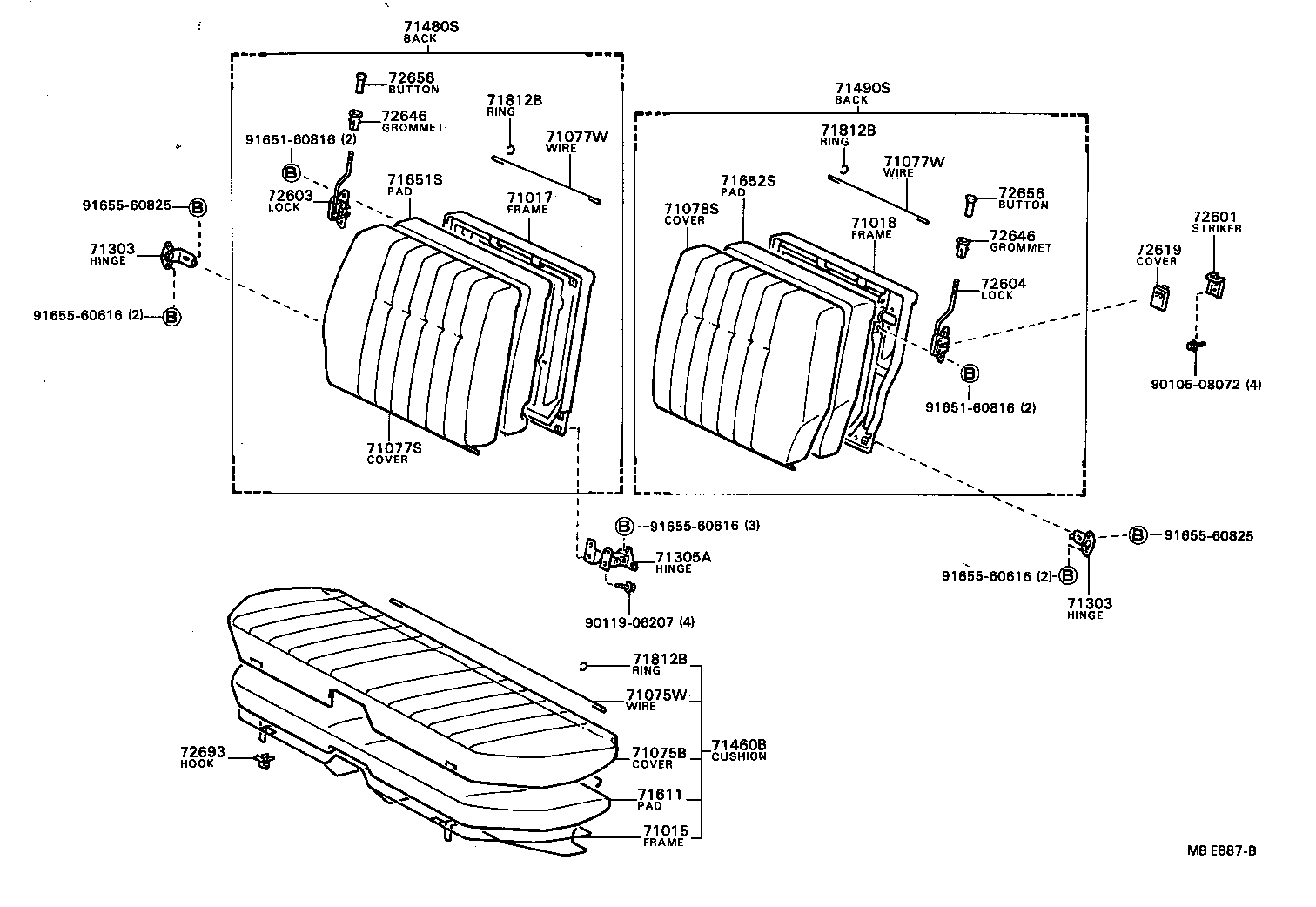

ST150L-TLMDSV (1983)
Toyota Corona/Carina 2
(8310- )LB..DX,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-20170 |
AT151,CT150,ST150 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-20170 |
AT151,CT150,ST150..LB..(DX,XL) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-20030 |
AT151,CT150,ST150..LB..(DX,XL) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-2013012 |
AT151,CT150,ST150..DX,STD,XL FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71065-2016004 |
AT151,CT150,ST150..STD,XL PF,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71065-2013004 |
AT151,CT150,ST150..DX,STD,XL FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71065-2009002 |
AT151,CT150,ST150..DX,STD,XL FB,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71065-2013013 |
AT151,CT150,ST150..DX,STD,XL FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71065-2016002 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71065-2009003 |
AT151,CT150,ST150..DX,STD,XL FB,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71065-2016003 |
AT151,CT150,ST150..(STD,XL)..(GEN,SAA) PF,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71065-2009004 |
AT151,CT150,ST150..DX,STD,XL FB,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20063 |
AT151,CT150,ST150 L=1080 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-2B30004 |
AT151,ST150..LB..XL PF,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71077-2B18012 |
AT151,CT150,ST150..LB..(DX,XL) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71077-2B18004 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71077-2B18013 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71077-2B18104 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71077-2B18103 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71077-2B30003 |
AT151,ST150..LB..XL PF,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71077-2B30002 |
AT151,ST150..LB..XL PF,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71077-2B18102 |
AT151,CT150,ST150..LB..(DX,XL) FB,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20108 |
AT151,CT150,ST150..LB..(DX,XL) L=550 |
2 | ||
| 90580-20129 |
AT151,CT150,ST150..LB L=460 |
2 | ||
| 90580-20051 |
AT151,CT150,ST150..LB..(DX,XL) L=520 |
2 | ||
| 90580-20171 |
AT151,CT150,ST150..LB..(DX,XL) L=480 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20108 |
AT151,CT150,ST150..LB..(DX,XL) L=550 |
2 | ||
| 90580-20129 |
AT151,CT150,ST150..LB L=460 |
2 | ||
| 90580-20051 |
AT151,CT150,ST150..LB..(DX,XL) L=520 |
2 | ||
| 90580-20171 |
AT151,CT150,ST150..LB..(DX,XL) L=480 |
2 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-2013012 |
AT151,CT150,ST150..LB..(DX,XL) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71078-2016003 |
AT151,ST150..LB..XL PF,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71078-2013013 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71078-2013004 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71078-2013102 |
AT151,CT150,ST150..LB..(DX,XL) FB,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71078-2016002 |
AT151,ST150..LB..XL PF,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71078-2013103 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71078-2016004 |
AT151,ST150..LB..XL PF,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71078-2013104 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-20030 |
AT151,CT150,ST150..LB..(DX,XL) |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-20030 |
AT151,CT150,ST150..LB..(DX,XL) |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-20040 |
AT151,CT150,ST150..LB..(DX,XL) |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-2013003 |
AT151,CT150,ST150..STD,XL PF,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71560-2005002 |
AT151,CT150,ST150..DX,STD,XL FB,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71560-2015012 |
AT151,CT150,ST150..DX,STD,XL FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71560-2013002 |
AT151,CT150,ST150..STD,XL PF,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71560-2015013 |
AT151,CT150,ST150..DX,STD,XL FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71560-2005004 |
AT151,CT150,ST150..DX,STD,XL FB,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71560-2005003 |
AT151,CT150,ST150..DX,STD,XL FB,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71560-2015004 |
AT151,CT150,ST150..DX,STD,XL FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71560-2013004 |
AT151,CT150,ST150..STD,XL PF,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-2B27012 |
AT151,CT150,ST150..LB..(DX,XL) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71480-2B27004 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71480-2B27104 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71480-2B41004 |
AT151,ST150..LB..XL PF,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71480-2B27102 |
AT151,CT150,ST150..LB..(DX,XL) FB,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71480-2B41003 |
AT151,ST150..LB..XL PF,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71480-2B41002 |
AT151,ST150..LB..XL PF,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71480-2B27103 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71480-2B27013 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-2014004 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71490-2019004 |
AT151,ST150..LB..XL PF,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71490-2014012 |
AT151,CT150,ST150..LB..(DX,XL) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71490-2014102 |
AT151,CT150,ST150..LB..(DX,XL) FB,ROSE BEIGE,ROSE BEIGE,TRIM3# |
1 | ||
| 71490-2019003 |
AT151,ST150..LB..XL PF,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71490-2014103 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71490-2014104 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 71490-2019002 |
AT151,ST150..LB..XL PF,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71490-2014013 |
AT151,CT150,ST150..LB..(DX,XL) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-20310 |
AT151,CT150,ST15# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-20270 |
AT151,CT150,ST150..LB..(DX,XL) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-20220 |
AT151,CT150,ST150..LB..(DX,XL) |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AT151,CT150,ST15# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AT151,CT150,ST15# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AT151,CT150,ST15# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-16040 |
AT151,CT150,ST150..LB..(DX,XL) |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-32020 |
AT151,CT150,ST150..LB..(DX,XL) |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-32020 |
AT151,CT150,ST150..LB..(DX,XL) |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-2001004 |
AT151,CT150,ST150..LB..(DX,XL) BLUE,BLUE,TRIM8# |
2 | ||
| 72615-2001002 |
AT151,CT150,ST150..LB..(DX,XL) DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72615-2001003 |
AT151,CT150,ST150..LB..(DX,XL) SHADOW GRAY,GRAY,TRIM1# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002022 |
AT151,CT150,ST150..LB..(DX,XL) DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72655-2002014 |
AT151,CT150,ST150..LB..(DX,XL) BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002023 |
AT151,CT150,ST150..LB..(DX,XL) SHADOW GRAY,GRAY,TRIM1# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002022 |
AT151,CT150,ST150..LB..(DX,XL) DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72655-2002014 |
AT151,CT150,ST150..LB..(DX,XL) BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002023 |
AT151,CT150,ST150..LB..(DX,XL) SHADOW GRAY,GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001023 |
AT151,CT150,ST150..LB..(DX,XL) SHADOW GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001014 |
AT151,CT150,ST150..LB..(DX,XL) BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001022 |
AT151,CT150,ST150..LB..(DX,XL) DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001023 |
AT151,CT150,ST150..LB..(DX,XL) SHADOW GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001014 |
AT151,CT150,ST150..LB..(DX,XL) BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001022 |
AT151,CT150,ST150..LB..(DX,XL) DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20010 |
AT151,CT150,ST15# |
2 | ||
| Common parts | ||||
| 90105-08072 | ||||
| 90119-06207 | ||||
| 91651-60816 | ||||
| 91655-60616 | ||||
| 91655-60825 | ||||
