ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )LB

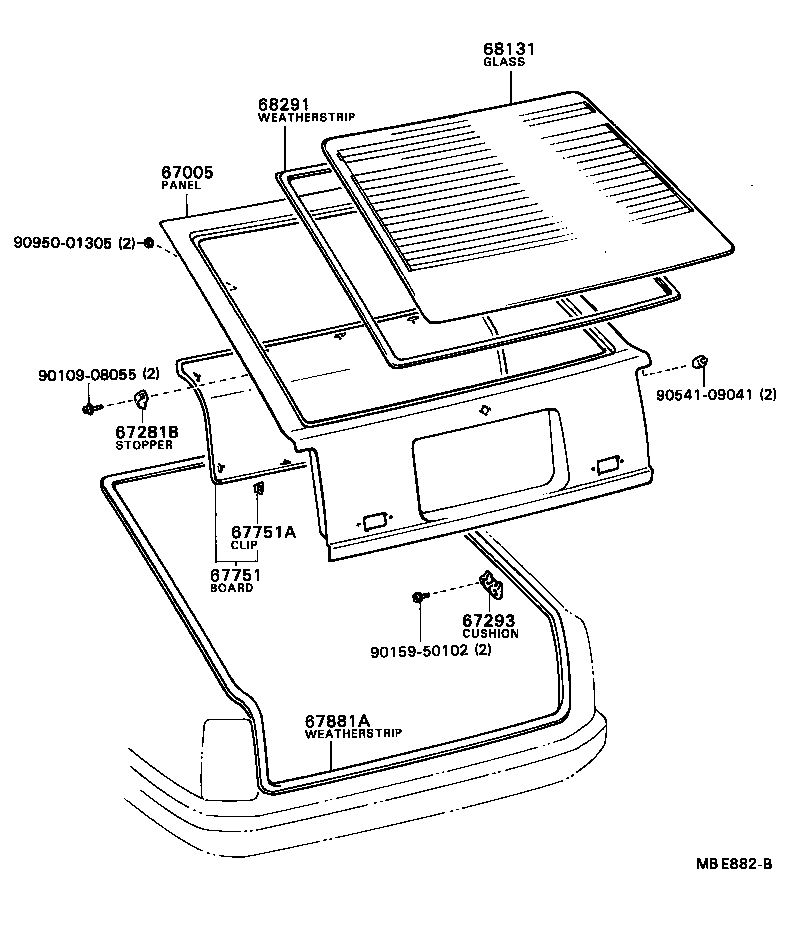

Click highlighted areas on diagram

diagram 67005 67281B 67293 67751 67751A 67881A 68131 68291 9010908055 9015950102 9054109041 9095001305
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-20230

AT151,ST150..LB..(GEN,SAA)

*LPL=SIDE,W/O *RW

 1
67005-20540

AT151,ST150..LB..(GEN,SAA)

*LPL=SIDE,W/*RW

 1
67281B - STOPPER, BACK DOOR, LOWER
67281-32010

AT151,CT150,ST15#..LB

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-20010

AT151,CT150,ST15#..LB

 2
67751 - BOARD, BACK DOOR TRIM
64781-2003002

AT151,CT150,ST15#..LB

DEEP MAROON,RED/MAROON,TRIM3#

 1
64781-2003004

AT151,CT150,ST150..LB

BLUE,BLUE,TRIM8#

 1
64781-2003003

AT151,CT150,ST15#..LB

SHADOW GRAY,GRAY,TRIM1#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90468-05017

AT151,CT150,ST15#..LB

 12
67881A - WEATHERSTRIP, BACK DOOR
67881-20030

AT151,CT150,ST150..LB

 1
68131 - GLASS, BACK DOOR
68131-20090

AT151,CT150,ST15#..LB..(EUR,GEN,SAA)

*EHTT,T=4.0

 1
68131-20100

AT151,ST15#..LB..(GEN,SAA,TH)

*TT,T=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-20020

AT151,CT150,ST15#..LB

 1
Common parts
90109-08055
90159-50102
90541-09041
90950-01305
