ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )LB

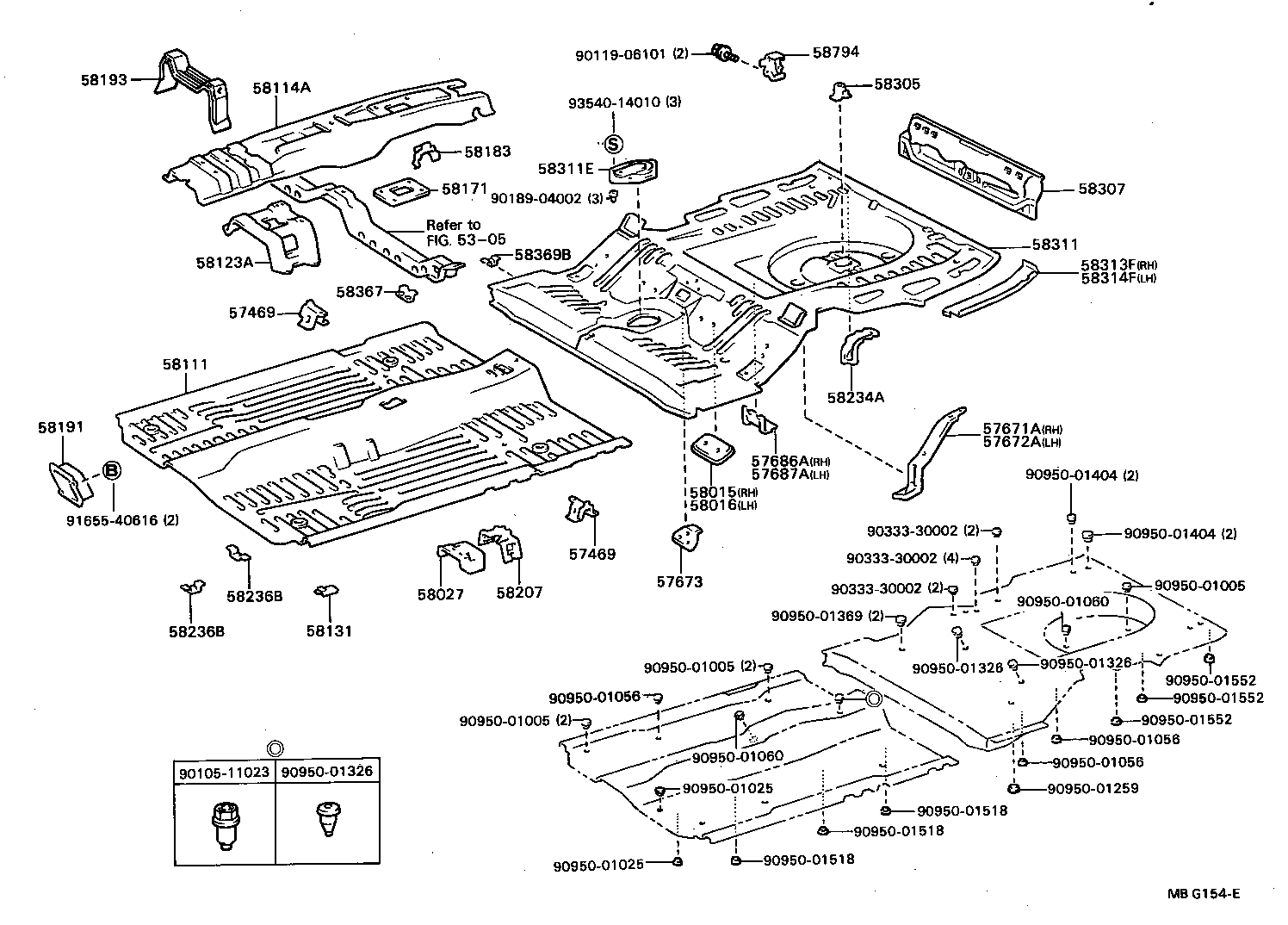

Click highlighted areas on diagram

diagram 5305 57469 57469 57671A 57672A 57673 57686A 57687A 58015 58016 58027 58111 58114A 58123A 58131 58171 58183 58191 58193 58207 58234A 58236B 58236B 58305 58307 58311 58311E 58313F 58314F 58367 58369B 58794 9010511023 9011906101 9018904002 9033330002 9033330002 9033330002 9095001005 9095001005 9095001005 9095001025 9095001025 9095001056 9095001056 9095001056 9095001060 9095001060 9095001259 9095001326 9095001326 9095001326 9095001369 9095001404 9095001404 9095001518 9095001518 9095001518 9095001552 9095001552 9095001552 9165540616 9354014010
Part # Description Qty Price
57469 - BRACKET, FRONT SEAT, OUTSIDE
57468-20030

AT151,CT150,ST15#

RH

 1
57469-20030

AT151,CT150,ST15#

LH

 1
57469 - BRACKET, FRONT SEAT, OUTSIDE
57468-20030

AT151,CT150,ST15#

RH

 1
57469-20030

AT151,CT150,ST15#

LH

 1
57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING
57607-32010

AT151,CT150,ST15#..LB

 1
57686A - BRACKET, FUEL TANK MOUNTING, REAR RH
57686-32010

AT151,CT150,ST15#

 1
57687A - BRACKET, FUEL TANK MOUNTING, REAR LH
57687-32010

AT151,CT150,ST15#

 1
58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58015-32010

CT150,ST150..LHD..(GEN,SAA)

 1
58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58016-32010

CT150,ST150..LHD..(GEN,SAA)

 1
58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1
58027-20020

AT151,CT150,ST150

 1
58111 - PAN, FRONT FLOOR
58111-20060

AT151,CT150,ST150

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-20010

AT151,CT150,ST150

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-20010

AT151,CT150,ST15#

 1
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-20040

AT151,CT150,ST15#

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-20040

AT151,CT150,ST15#

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58183-20040

AT151,CT150,ST15#

RH

 1
58184-20040

AT151,CT150,ST15#

LH

 1
58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58207-20060

AT151,CT150,ST150

 1
58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER
58234-32010

AT151,CT150,ST15#

 1
58236B - BRACKET, CENTER FLOOR HEAT INSULATOR
58236-14010

AT151,CT150,ST15#

 5
58236B - BRACKET, CENTER FLOOR HEAT INSULATOR
58236-14010

AT151,CT150,ST15#

 5
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

AT151,CT150,ST15#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-20400

AT151,CT150,ST15#..LB

 1
58311 - PAN, REAR FLOOR
58311-32030

AT151,CT150,ST15#..LB

 1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-32010

AT151,CT150,ST15#

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-20090

AT151,CT150,ST15#..LB

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-20070

AT151,CT150,ST15#..LB

 1
58367 - BRACKET, FUEL TUBE CLAMP
58367-20030

AT151,CT150,ST15#

 1
58369B - BRACKET, FUEL TUBE, NO.3
58369-30010

AT151,CT150,ST15#

 5
58794 - CARRIER, JACK
58791-20010

AT151,CT150,ST150

 1
Common parts
90105-11023
90119-06101
90189-04002
90333-30002
90950-01005
90950-01025
90950-01056
90950-01060
90950-01259
90950-01326
90950-01369
90950-01404
90950-01518
90950-01552
91655-40616
93540-14010
Linked diagrams
5305
