ST150L-TLMDSV (1983)

Toyota Corona/Carina 2

Production Oct 1983 - Aug 1985
Engine 1SL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )ST150..LHD

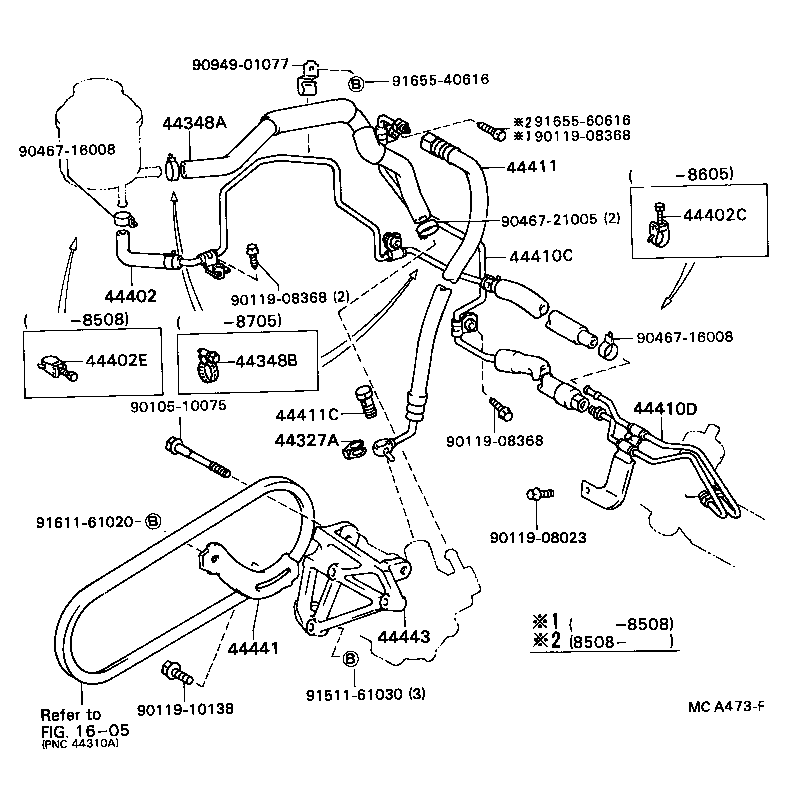

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44348B 44402 44402C 44402E 44410C 44410D 44411 44411C 44441 44443 9010510075 9011908023 9011908368 9011908368 9011908368 9011910138 9046716008 9046716008 9046721005 9094901077 9151161030 9161161020 9165540616 9165560616
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

 2
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20050

ST150

 1
44348-20080

ST150

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

ST150..GL..TH;CT150,ST15#..EUR,GEN,SAA

 2
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-20070

ST150..LHD

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

ST150..GL..TH;ST15#..EUR,GEN,SAA

 1
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

ST150

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-20130

ST150..LHD

 1
44410D - TUBE ASSY, PRESSURE FEED, NO.2
44410-20140

ST150..LHD

 1
44411 - HOSE, PRESSURE FEED
44411-20140

ST150..LHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

ST150..GL..TH;ST15#..EUR,GEN,SAA

 2
44441 - BRACKET, PUMP, FRONT
44441-32010

ST150..GL..TH;ST15#..EUR,GEN,SAA

 1
44443 - BRACKET, PUMP
44443-32010

ST150

 1
Common parts
90105-10075
90119-08023
90119-08368
90119-10138
90467-16008
90467-21005
90949-01077
91511-61030
91611-61020
91655-40616
91655-60616
Linked diagrams
1605

(8310- )ST15#

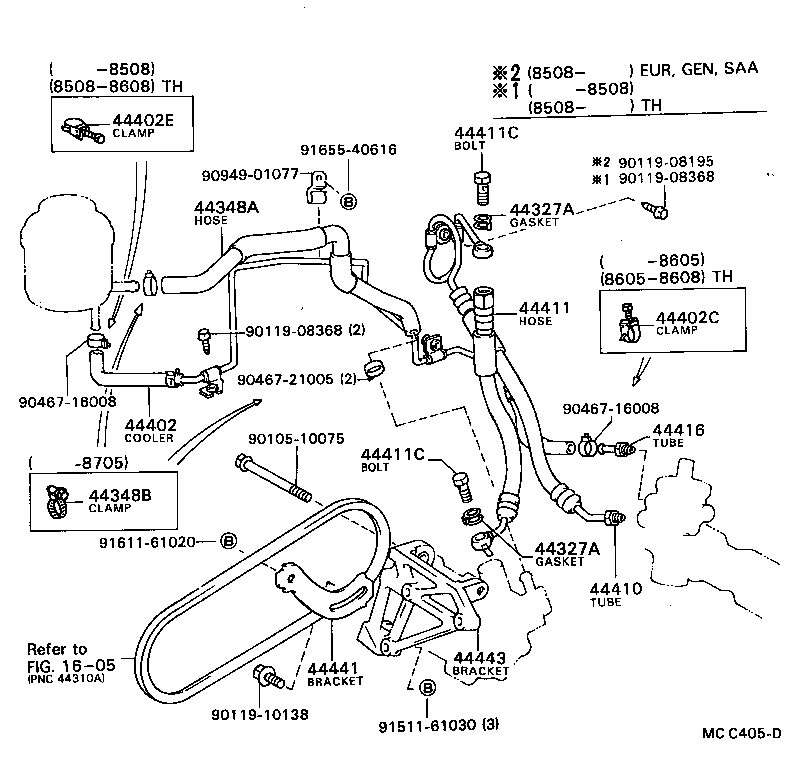

Click highlighted areas on diagram

diagram 1605 44327A 44327A 44348A 44348B 44402 44402C 44402E 44410 44411 44411C 44411C 44416 44441 44443 9010510075 9011908195 9011908368 9011908368 9011910138 9046716008 9046716008 9046721005 9094901077 9151161030 9161161020 9165540616
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

 2
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)

 2
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20050

ST150

 1
44348-20080

ST150

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

ST150..GL..TH;CT150,ST15#..EUR,GEN,SAA

 2
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-20070

ST150..LHD

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

ST150..GL..TH;ST15#..EUR,GEN,SAA

 1
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

ST150

 1
44411 - HOSE, PRESSURE FEED
44411-20140

ST150..LHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

ST150..GL..TH;ST15#..EUR,GEN,SAA

 2
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

ST150..GL..TH;ST15#..EUR,GEN,SAA

 2
44441 - BRACKET, PUMP, FRONT
44441-32010

ST150..GL..TH;ST15#..EUR,GEN,SAA

 1
44443 - BRACKET, PUMP
44443-32010

ST150

 1
Common parts
90105-10075
90119-08195
90119-08368
90119-10138
90467-16008
90467-21005
90949-01077
91511-61030
91611-61020
91655-40616
Linked diagrams
1605
